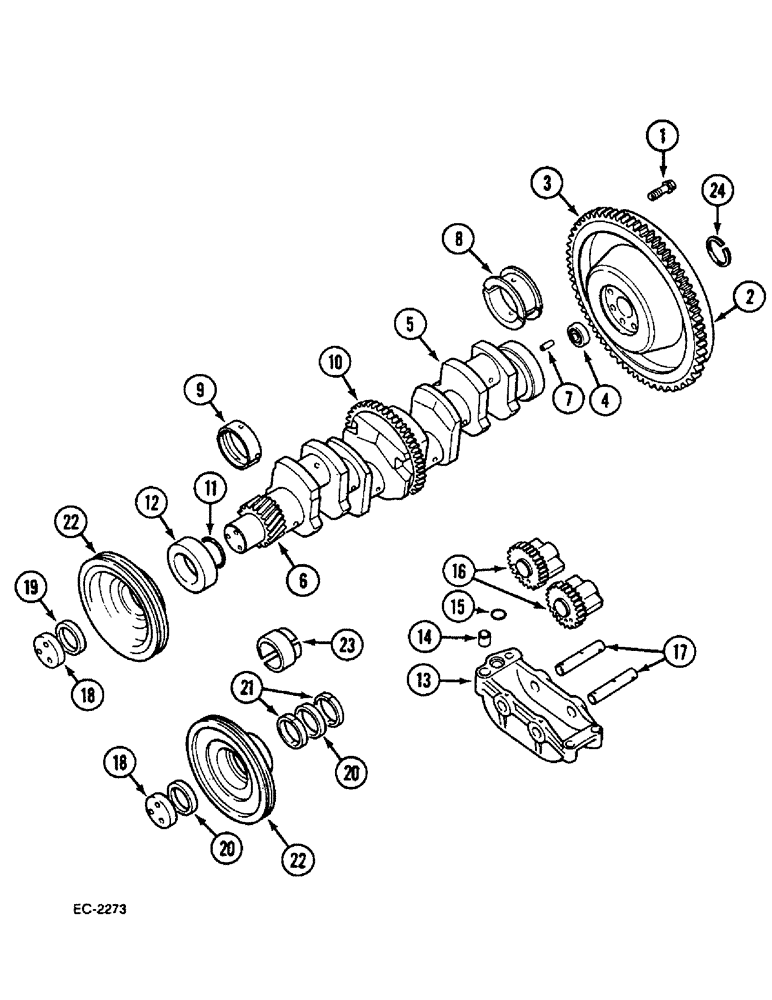

Запчасти Case IH 833 (2-66) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE

See also Figure 2-72

1шт.

1

3055497R2

BOLT

7шт.

2

3218839R91

FLYWHEEL

1шт.

3

3114612R1

GEAR ring

1шт.

4

3055431R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

1шт.

5

3132968R93

CRANKSHAFT BEARING

standard, for model 733

1шт.

5

3132969R93

CRANKSHAFT

undersize 0.250 mm, for model 733

1шт.

5

3132971R93

CRANKSHAFT

undersize 0.500 mm, for model 733

1шт.

5

3144626R92

CRANKSHAFT BEARING

standard, for model 833

1шт.

5

3218861R91

CRANKSHAFT

undersize 0.250 mm, for model 833

1шт.

5

3218864R91

CRANKSHAFT

undersize 0.500 mm, with: Ref. 6-10, for model 833

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

With connecting rod brgs

1шт.

6

3055028R1

PINION

GEAR 33T

1шт.

7

37-2614

DOWEL,3/8" x 7/8"

1шт.

8

3055129R21

CRANKSHAFT BEARING

standard

1шт.

8

3056820R11

BEARING ASSY

undersize 0.250 mm

1шт.

8

3056875R11

BEARING ASSY

undersize 0.500 mm

1шт.

8

3055776R11

BEARING ASSY

undersize 0.750 mm, for model 733

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING standard

4шт.

9

3056832R21

BEARING ASSY

undersize 0.250 mm

4шт.

9

3056877R21

BEARING ASSY

undersize 0.500 mm

4шт.

9

3055779R21

BEARING ASSY

undersize 0.750 mm, for model 733

4шт.

10

3136237R1

PINION

GEAR

1шт.

11

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

12

3228133R93

SEAL KIT

PACKAGE seals

1шт.

12

3228258R91

O-RING

RING

1шт.

13

3228366R91

BALANCER

for model 733

1шт.

13

3132874R94

HOUSING

BALANCER with: Ref. 14, 15, 16, 17, for model 833

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

3218543R1

LOCK WASHER

1шт.

14

3055174R1

BUSHING

1шт.

15

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

16

3228372R91

BALANCING WEIGHT

PACKAGE for model 733

1шт.

16

3228374R91

BALANCER

WEIGHT for model 833

1шт.

17

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSY.

2шт.

932229R1

SPLIT PIN/SAFETY PIN

roll, 4 x 20 mm

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

1шт.

18

3055154R1

WASHER

3шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

19

3138874R1

BEARING WASHER

RING for model 833

1шт.

20

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

thrust, for model 733

2шт.

21

3055152R91

RING

RING for model 733

2шт.

22

3138834R1

PULLEY

1шт.

23

3218394R1

BUSHING

RING optional, for model 733

1шт.

24

933616R1

CIRCLIP,#47, 43.7 x 4.04 x 1.12

retaining

1шт.
