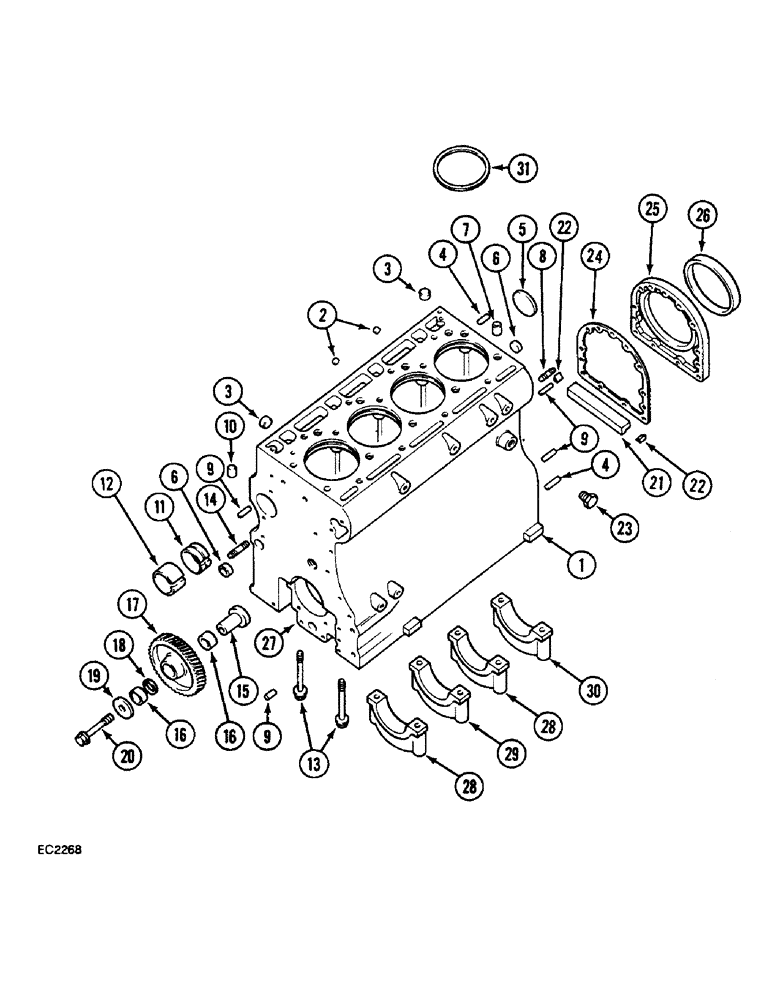

Запчасти Case IH 833 (2-48) - CRANKCASE (02) - ENGINE

1

3144742R94

CRANKCASE

BLOCK cylinder, with: Ref. 2-13, for model 733

1шт.

1

3228620R92

CRANKCASE

BLOCK cylinder, with: Ref. 2-13

1шт.

2

3144520R1

PLUG

1/4 inch

4шт.

2

3055173R1

PLUG

1шт.

3

3136004R1

COVER

PLUG

2шт.

4

141284

PIN,25.4mm OD x 31.75mm L

2шт.

5

41-3044

PLUG,Exp, 2 3/4"

1шт.

6

933537R1

PLUG,M25, Conical

2шт.

7

3055007R1

BUSHING

2шт.

8

3055270R1

STUD

1шт.

9

37-2614

DOWEL,3/8" x 7/8"

4шт.

10

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

3шт.

11

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

2шт.

12

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

1шт.

13

3138885R1

SCREW

BOLT

10шт.

14

3055065R1

STUD

5/16 x 39 mm

1шт.

15

3055373R1

CARRIER

1шт.

16

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

2шт.

16

3136515R91

BEARING

NEEDLE optional

2шт.

17

3055043R3

PINION

GEAR 68T

1шт.

18

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING

1шт.

19

3055372R1

DISC

WASHER thrust

1шт.

20

3055374R2

BOLT

1шт.

21

3055214R1

SUPPORT

1шт.

22

714868R1

SEALING STRIP

2шт.

23

20990R1

PLUG

3/8 inch

1шт.

24

3055215R1

GASKET

1шт.

25

3055216R1

RETAINER

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock

9шт.

26

3138701R91

SEAL

1шт.

27

NSS

NOT SOLD SEPARAT

CAP order: P/N's 3144742R94 / 3228620R92

1шт.

28

3144440R91

BEARING ASSY

PACKAGE service, Consists of:

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

SCREW

2шт.

29

3144436R91

CRANKSHAFT BEARING

PACKAGE service, Consists of:, for model 733

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

SCREW

2шт.

30

3144438R91

BEARING ASSY

PACKAGE service, for model 733

1шт.

30

3144434R91

CRANKSHAFT BEARING

PACKAGE service, Consists of:, for model 833

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

SCREW

2шт.

31

3218538R1

SHIM

0.05 mm

1шт.

31

3218539R1

SHIM

0.10 mm

1шт.

31

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

0.25 mm

1шт.

31

3218541R1

SHIM

0.50 mm

1шт.

31

3218542R1

SHIM

0.80 mm

1шт.

3136813R99

GASKET KIT

PACKAGE not illustrated

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

ADAPTOR 1/4 x 1/8 inch, not illustrated

1шт.

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

ADAPTOR 1/4 x 1/8 inch, not illustrated

1шт.
