Запчасти Case IH 833 (2-42) - CRANKCASE SIDE COVER (02) - ENGINE

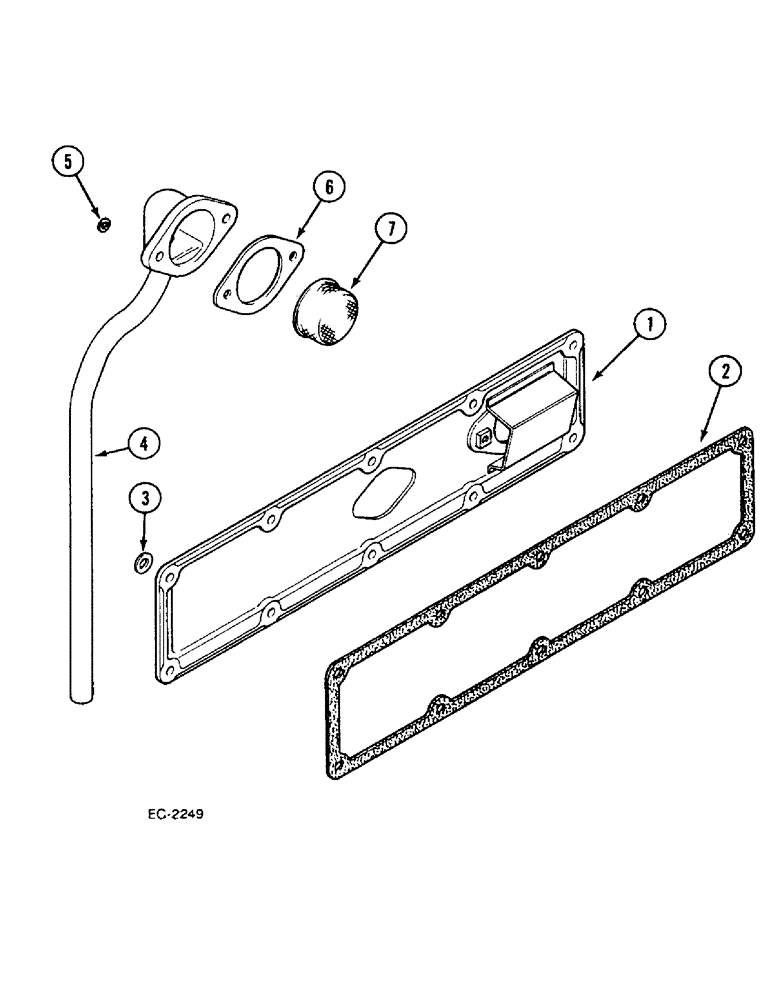

Схема запчастей Case IH 833 - (2-42) - CRANKCASE SIDE COVER (02) - ENGINE
7
3
1
6
5
2
4

Артикул

Название

Примечание

Количество

1

3055312R21

COVER

for models 433, 533, 633

1шт.

1

3055314R21

COVER

for models 733, 833

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

For models 433, 533, 633

8шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

For models 733, 833

10шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm, for models 433, 533, 633

8шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm, for models 733, 833

10шт.

2

3055394R2

GASKET

for models 433, 533, 633

1шт.

2

3055393R3

GASKET

for models 733, 833

1шт.

3

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

for models 433, 533, 633

8шт.

3

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

for models 733, 833

10шт.

4

3055319R11

BREATHER

for models 433, 533, 633

1шт.

4

1329028C92

BREATHER ASSY.

for models 733, 833

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

3136506R1

RING

2шт.

6

3138639R1

GASKET

1шт.

7

3055324R92

HYDRAULIC OIL FILTER

1шт.

Выбрано товаров: 16
