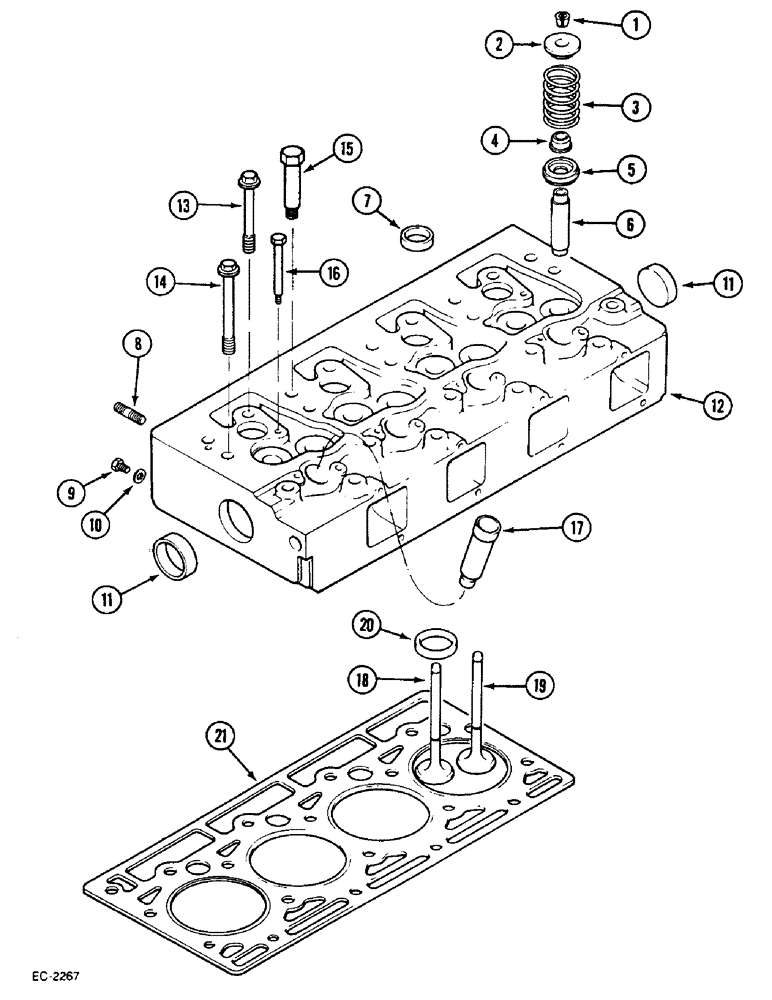

Запчасти Case IH 833 (2-36) - CYLINDER HEAD (02) - ENGINE

1

3055057R91

ROCKER ARM COTTER

KEY ASSY.

16шт.

2

3055058R2

SPRING CUP

CAP

8шт.

3

3055060R1

SPRING

8шт.

4

3228677R91

SEAL

PACKAGE Consists of:

1шт.

NSS

NOT SOLD SEPARAT

SEAL

8шт.

3132420R1

SLEEVE

1шт.

5

3055059R91

CAP

ROTATOR

8шт.

6

3055022R2

VALVE GUIDE

8шт.

7

933537R1

PLUG,M25, Conical

4шт.

8

3055663R1

STUD

3/8 x 38 mm

8шт.

9

934259R1

PLUG,Hex, M10 x 1

1шт.

10

718743R1

SEALING RING,M10 x 16 x 1

1шт.

11

934003R1

PLUG,M52, Conical

2шт.

12

3055367R97

HEAD (CYLINDER)

with: Ref. 6, 7, 11, 17

1шт.

13

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

9/16 x 123 mm

8шт.

14

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

9/16 x 146 mm

10шт.

15

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

5шт.

16

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

4шт.

17

3055344R1

SLEEVE

4шт.

18

3055056R2

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

19

3055055R2

OVERSIZE INLET VALVE

4шт.

20

3132362R1

VALVE SEAT

VALVE seat, oversize 0.15 mm

4шт.

20

3132361R1

INSERT

VALVE seat, oversize 0.40 mm

4шт.

21

3228362R1

CYLINDER HEAD GASKET

1шт.

3136799R99

GASKET KIT

PACKAGE Consists of:, not illustrated

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

not illustrated

4шт.

3053133R1

SEALING RING,M8 x 11.5 x 1

Not Illustrated

8шт.

3138642R1

GASKET

not illustrated

1шт.

3055398R1

GASKET

not illustrated

1шт.

3055306R1

GASKET

not illustrated

4шт.

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

not illustrated

4шт.

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING not illustrated

4шт.

3132143R1

GASKET

not illustrated

1шт.

3228362R1

CYLINDER HEAD GASKET

not illustrated

1шт.

3132434R1

MANIFOLD GASKET,0.5mm Thk

not illustrated

4шт.

3218399R91

GASKET KIT

PACKAGE not illustrated

1шт.
