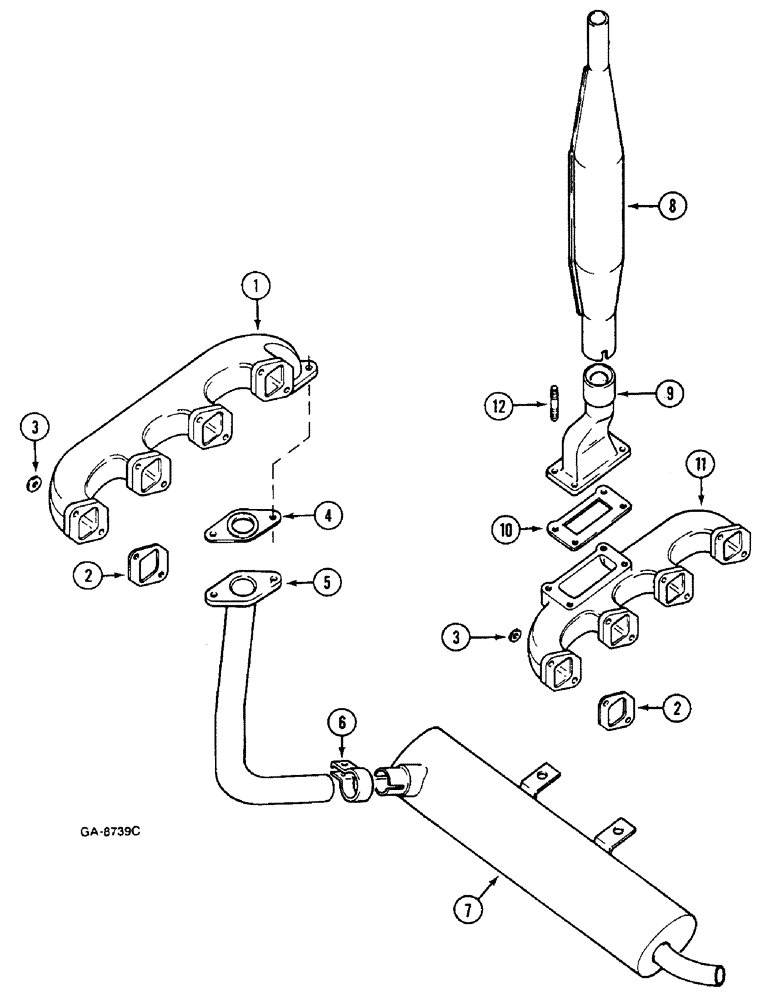

Запчасти Case IH 833 (2-24) - EXHAUST AND MANIFOLD (02) - ENGINE

1

3055276R1

MANIFOLD

1шт.

103026

NUT,3/8"-24, G5

8шт.

2

3132434R1

MANIFOLD GASKET,0.5mm Thk

4шт.

3

20285H

WASHER

10 x 19 x 3 mm

8шт.

4

3057485R1

SEAL

1шт.

5

3405320R1

PIPE

for model 833

1шт.

5

3401859R1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST for model 733

1шт.

24619R1

BOLT

3/8 x 40 mm

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

6

710522R1

CLAMP

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

7

3226694R92

MUFFLER

for model 833

1шт.

7

3230887R2

MUFFLER

for model 733

1шт.

NLS

NO LONGER SERVICED

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

8

3145624R7

MUFFLER

for model 833

1шт.

8

1280975C2

MUFFLER

optional, for model 833

1шт.

Version With Cab

1шт.

8

3399347R5

MUFFLER

for model 733

1шт.

Version With Cab

1шт.

9

3402326R1

ELBOW

for model 833

1шт.

10

3136248R1

MANIFOLD GASKET,0.5mm Thk

1шт.

11

3136066R12

MANIFOLD ASSY

1шт.

12

712078R1

STUD

for model 833

4шт.

715065R1

STUD

optional, for model 833

4шт.

12

3055663R1

STUD

3/8 x 38 mm, for model 733

4шт.
