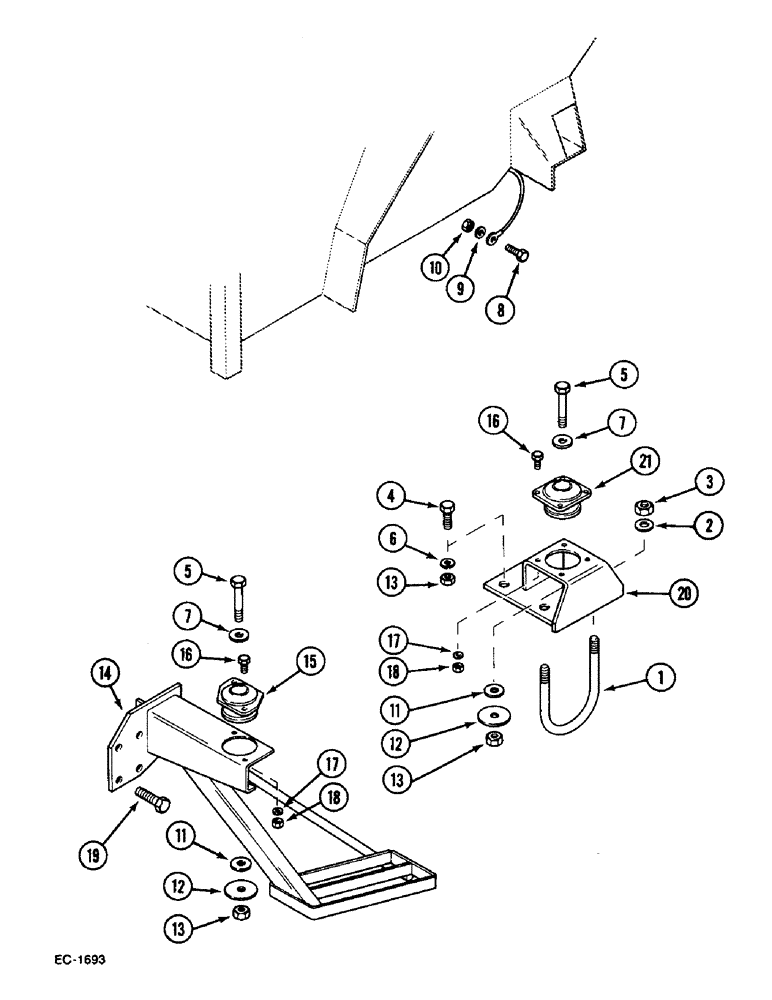

Запчасти Case IH 833 (9-676) - CAB MOUNTINGS (09) - CHASSIS/ATTACHMENTS

1

3216204R3

BOLT

U

2шт.

2

934875R1

WASHER

15 mm

4шт.

3

933090R1

NUT

M14

4шт.

4

30541R1

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

4шт.

5

30543R1

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

4шт.

6

934282R1

LOCK WASHER,M16

4шт.

7

1284533C1

WASHER

4шт.

8

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

9

934488R1

LOCK WASHER,Ext Tooth, M8

2шт.

10

934310R1

NUT,M8, Cl 8

2шт.

11

3048473R1

WASHER

4шт.

12

3116148R1

WASHER

4шт.

13

30428R1

NUT,M16, Cl 8

8шт.

1284528C92

SUPPORT

BRACKET front, LH

1шт.

1284529C92

BRACKET

front, RH, consists of: Ref. 14 - 18

1шт.

14

1284738C2

SUPPORT

BRACKET left

1шт.

14

1284739C2

BRACKET

right

1шт.

15

1284740C2

SHOCK ABSORBER

DAMPER

2шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

12шт.

17

3217142R1

WASHER

12шт.

18

3217140R1

NUT

12шт.

19

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

8шт.

1284530C91

BRACKET

rear, consists of: Ref. 16, 17, 18, 20, 21

2шт.

20

1284741C1

HOLDER

2шт.

21

1502231C91

RUBBER MOUNTING

2шт.
