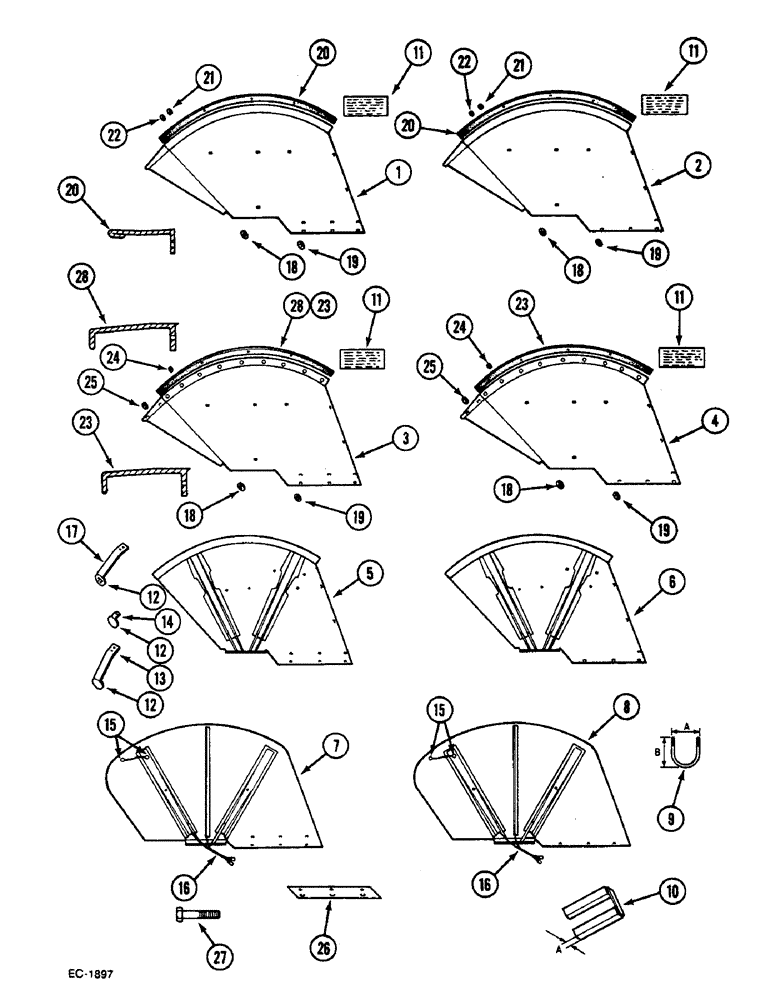

Запчасти Case IH 833 (9-632) - REAR FENDERS, REFLECTORS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
3148289R93
FENDER ASSY.
left
1шт.
Not for France
1шт.
1
3148290R93
FENDER ASSY.
right
1шт.
Not for France
1шт.
1
3216699R92
FENDER ASSY.
left
1шт.
For France only
1шт.
1
3216700R92
FENDER ASSY.
right
1шт.
For France only
1шт.
2
3229619R92
MUD DEFLECTOR
FENDER left, used with 3148290R93, for 4-wheel drive tractors, for models 533, 633, 733, 833
1шт.
Not for France
1шт.
2
3229617R92
MUD DEFLECTOR
FENDER left, used with 3216700R92, for 4-wheel drive tractors, for models 533, 633
1шт.
For France only
1шт.
3
3399029R2
MUD DEFLECTOR
FENDER left
1шт.
Not for France
1шт.
3
3399030R2
FENDER ASSY.
right
1шт.
Not for France
1шт.
4
3399031R2
MUD DEFLECTOR
FENDER left, used with 3399030R2, for 4-wheel drive tractors, for models 533, 633, 733, 833
1шт.
Not for France
1шт.
611346R1
WASHER
10 mm
8шт.
931295R1
CARRIAGE BOLT,Sq Nk, M10 x 25mm, Cl 4.6
BOLT M10 x 25 mm
8шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
4шт.
934280R1
SQ HOLE WASHER,M11
8шт.
102639
NUT,5/8"-11, G5
4шт.
100016
NUT,M10 x 1.5, Cl 8
8шт.
103325
LOCK WASHER,5/8"
4шт.
5
3148297R92
FENDER ASSY.
left, for models 433, 533, 633, 733
1шт.
For UK and France only
1шт.
5
3148298R92
FENDER ASSY.
right, for models 433, 533, 633, 733
1шт.
For UK and France only
1шт.
6
3229620R92
FENDER ASSY.
left, used with 3148298R92, for 4-wheel drive tractors, for model 633
1шт.
For UK and France only
1шт.
7
3148302R92
FENDER
left, for models 433, 533, 633
1шт.
Not for Germany
1шт.
7
3148303R92
FENDER ASSY.
right, for models 433, 533, 633
1шт.
Not for Germany
1шт.
8
3229622R92
FENDER ASSY.
left, used with 3148303R92, for models 533, 633
1шт.
Not for Germany
1шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
for models 433, 533, 633, 733
4шт.
103325
LOCK WASHER,5/8"
For models 433, 533, 633, 733
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
for models 433, 533, 633, 733
4шт.
9
3216204R3
BOLT
U
2шт.
9
3216202R2
BOLT
U
2шт.
9
3216205R3
U-BOLT
BOLT "U"
2шт.
9
3216203R2
U-BOLT
BOLT "U"
2шт.
9
3232994R1
BOLT
U, for models 533, 633, 733, 833
2шт.
9
3232775R1
BOLT
U, with safety frame, for models 533, 633, 733, 833
2шт.
30766R1
NUT,M14, Cl 8
8шт.
934066R1
WASHER
15 mm
8шт.
10
3216198R92
SPACER
A - 50 mm
2шт.
10
3233063R1
SPACER
A - 80 mm, for models 433, 533, 633
2шт.
24881R1
BOLT,Hex, 5/8" - 11 x 4", Gr 8
For models 433, 533, 633
4шт.
103325
LOCK WASHER,5/8"
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
4шт.
11
1091207R4
PRODUCT GRAPHIC
1шт.
12
787471R92
REFLECTOR
Seima
1шт.
12
3118665R2
REFLECTOR
Hella
1шт.
12
3131910R1
REFLECTOR
Wegu
1шт.
12
3233791R2
REFLECTOR
Ulo
1шт.
934271R1
HARDWARE
SCREW
1шт.
933833R1
LOCK WASHER,M6
1шт.
86500688
NUT,Hex, M6 x 1.0, Cl 10.9
1шт.
13
3134259R1
HOLDER
2шт.
13
180004
DECAL
HOLDER, for models 433, 533, 633
2шт.
492-11025
LOCK WASHER,1/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
3216737R1
WASHER
2шт.
14
3147866R1
ANGLE
2шт.
15
711793R1
GROMMET
1шт.
15
757314R1
CLAMP
GROMMET, optional
1шт.
16
3141114R1
CABLE
left, for models 433, 533, 633
1шт.
16
3141115R1
CABLE
SPARE PART right, for models 433, 533, 633
1шт.
17
3058069R91
REFLECTOR
HOLDER, with 3131910R1, for models 433, 533, 633, 733
2шт.
453049
SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"
SCREW 1/4 x 70 mm, for models 433, 533, 633, 733
4шт.
103319
LOCK WASHER,1/4"
For models 433, 533, 633, 733
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
For models 433, 533, 633, 733
4шт.
18
934280R1
SQ HOLE WASHER,M11
1шт.
19
611346R1
WASHER
10 mm
1шт.
20
3147692R1
SHROUD
for models 433, 533, 633
2шт.
For Germany only
1шт.
453049
SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"
SCREW 1/4 x 70 mm, for models 433, 533, 633
10шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
For models 433, 533, 633
10шт.
21
3216737R1
WASHER
for models 433, 533, 633
10шт.
23
3229318R1
SPLASH SHIELD
SHROUD left, 125 mm
1шт.
23
3229319R1
PROTECTIVE COVER
SHROUD right, 125 mm
1шт.
24
934850R1
WASHER
6 mm
1шт.
86500688
NUT,Hex, M6 x 1.0, Cl 10.9
1шт.
931313R1
SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8
M5 x 20 mm
2шт.
933187R1
NUT,M5, Cl 8
2шт.
934876R1
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
1шт.
25
934044R1
WASHER,M5.3 ID x 10 OD x 1 Thk
5 mm
2шт.
26
3232998R1
SPACER
2шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
3058249R1
WASHER
10 mm
12шт.
27
19678R1
BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 2
4шт.
103325
LOCK WASHER,5/8"
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
4шт.
28
3402586R1
RUBBER
SHROUD left, 172 mm
1шт.
28
3402587R1
RUBBER
SHROUD right, 172 mm
1шт.
Выбрано товаров: 101
