Запчасти Case IH 830-SERIES (125A) - STAMPED FRONT WHEELS (05) - STEERING

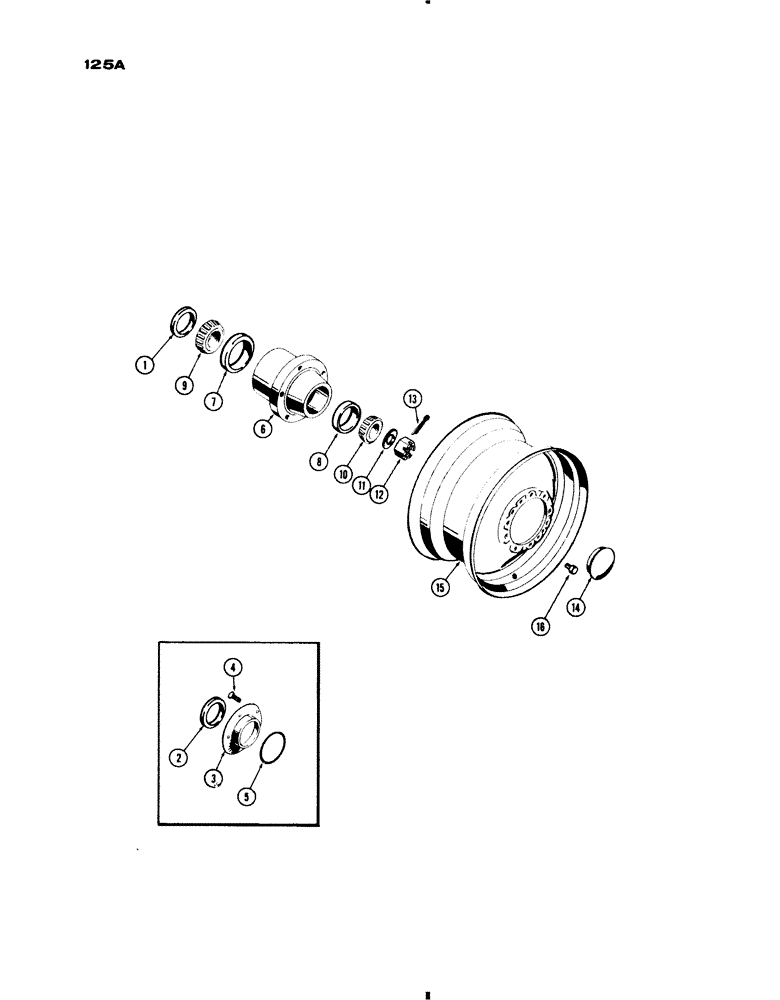

Схема запчастей Case IH 830-SERIES - (125A) - STAMPED FRONT WHEELS (05) - STEERING
11
14
9
15
4
13
8
5
2
6
12
10
1
3
7
16

Артикул

Название

Примечание

Количество

1

A57250

OIL SEAL

ASSY. - oil (2-1/8 x 3-11/32 x 1/2"), Start Serial: 8332878

2шт.

2

A27139

SEAL

- oil (2-15/32 x 3-7/32 x 7/16"), Serial Range: -8332878

2шт.

3

A27140

RETAINER

- oil seal, Serial Range: -8332878

2шт.

4

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer (1/4 x 5/8" N.C. flat hd.)

10шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O"RING - retainer (3-1/4 x 3-1/2 x 1/8")

2шт.

6

A57338

HUB ASSY. - front wheel (w/6, 9/16" tapped holes) (7-1/4" dia.), Includes: Ref. 7 and 8, Start Serial: 8332878

2шт.

6

A57337

HUB ASSY.

- front wheel (w/8, 9/16" tapped holes) (9-7/16" dia.), Includes: Ref. 7 and 8, Start Serial: 8332878

2шт.

6

A57336

HUB

ASSY. - front wheel (w/6, 9/16" tapped holes) (7-1/4" dia.), Includes: Ref. 7 and 8, Start Serial: 8332878

2шт.

6

A22743

HUB

ASSY. - front wheel (w/1/2" tapped holes), Includes: Ref. 7 and 8, Serial Range: -8332878

2шт.

7

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner

1шт.

8

A27631

CUP

- bearing, outer

1шт.

9

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner

2шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer

2шт.

11

A26789

BEARING WASHER

WASHER - wheel brg. ret.

2шт.

12

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle (1-1/8" N.F. sltd.)

2шт.

13

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

14

A29425

CAP

- hub

2шт.

15

A57880

RIM - (takes 9.50 x 20 tire) (1-1/8" offset) (4-wheel & western) (6 holes)

2шт.

15

G57005

WHEEL

RIM - (takes 6.00 x 16 tire) (1-1/8" Off Set) (Gen. Purp., 4-wheel & West.) (6 holes)

2шт.

15

A29050

WHEEL

RIM - (takes 6.00 x 16 tire) (2-1/4" Off Set) (Gen. Purp. only) (6 holes)

2шт.

15

A57333

RIM - (takes 7.50 x 16 tire) (2-1/4" offset) (Gen. Purp., 4-wheel & West.) (6 holes)

2шт.

15

G57046

WHEEL ASSY.

RIM - (takes 7.50 x 16 tire) (Gen. Purp., 4-wheel, West. & Grove) (6 holes)

2шт.

15

A34911

WHEEL

RIM - (takes 10 x 16 tire) (1-1/8" offset) (Gen. Purp. only) (8 holes)

2шт.

15

A57435

WHEEL

RIM - (takes 11 x 16 tire) (1-3/4" offset) (Gen. Purp. only) (6 holes)

2шт.

15

G57007

WHEEL

RIM - (takes 7.50 x 15 tire) (Gen. Purp. only) (6 holes)

2шт.

15

A57879

RIM

- (takes 9.50 x 15 or 11 x 15 tire) (1-1/8" offset) (Gen. Purp. only) (6 holes)

2шт.

16

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16" - 18 x 1-3/32") (used w/A57338, A57337 and A57336 hubs)

1шт.

16

A29912

BOLT

BOLT - wheel to hub (1/2"-20 x 1-3/32") (used W/A22743 hub)

12шт.
