Запчасти Case IH 830-SERIES (102) - POWER STEERING PUMP ATTACHMENTS, 4 WHEEL AND WESTERN (05) - STEERING

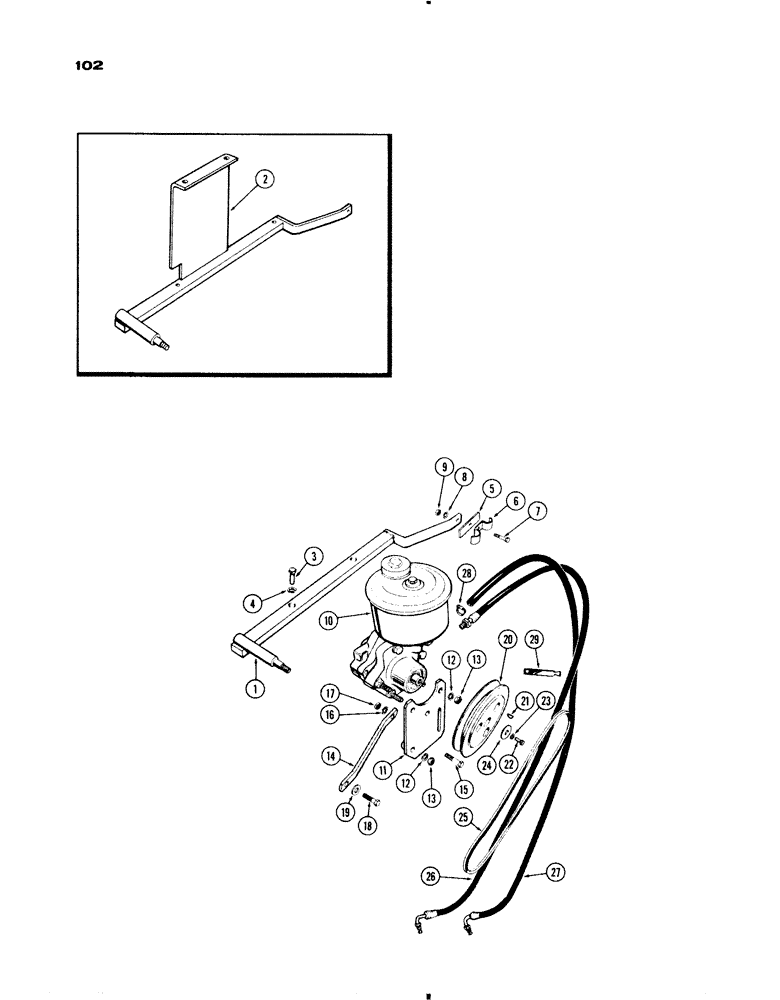

Схема запчастей Case IH 830-SERIES - (102) - POWER STEERING PUMP ATTACHMENTS, 4 WHEEL AND WESTERN (05) - STEERING
11
13
16
24
4
12
29
23
6
28
17
8
22
9
2
19
13
15
7
25
27
18
21
12
1
3
10
5
26
14
20

Артикул

Название

Примечание

Количество

1

A57790

SUPPORT

(Gas & Diesel) (Not used Grove) (Replaces A24037)

1шт.

2

A57789

SUPPORT - (L.P.) (Not used Grove) (Replaces A32132)

1шт.

3

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Support

2шт.

4

92-7

LOCK WASHER,7/16"

2шт.

5

A22141

BRACKET - clamp (with 9/32" dia. hole)

21шт.

6

A22142

CLAMP - hose retaining (with 9/32" dia. hole)

1шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clamp Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

A57913

PUMP ASSY. - power steering (See Figure 105A), Start Serial: 8347808

1шт.

10

A57440

PUMP ASSY. - power steering (See Figure 105A), Serial Range: 8323504-8347808

1шт.

10

A22145

PUMP ASSY. - power steering (See Figure 105A) (Order A57440), Serial Range: -8323504

1шт.

10

A57914

PUMP ASSY. - power steering (See Figure 104), Start Serial: 8343146

1шт.

10

A57439

PUMP ASSY. - power steering (See Figure 104), Serial Range: 8323504-8343146

1шт.

10

A33059

PUMP ASSY. - power steering (See Figure 104) (Order A57439), Serial Range: -8323504

1шт.

11

A21736

PLATE - pump mounting

1шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- pump stud (3/8" N.F. hex.)

4шт.

14

A21740

STRAP - pump adjusting

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Adj. strap, top Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

18

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- adj. strap, bottom (3/8 x 2-3/4" N.C. hex.)

1шт.

19

A23264

WASHER - (25/64 x 31/32 x 5/32")

1шт.

20

A8186

PULLEY

- pump drive

1шт.

21

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

A34092

WASHER

- (11/32 x 1 x 3/16")

1шт.

25

A22765

BELT,32.00" L

Pulley Drive 32.00" L

1шт.

26

A24386

HOSE

- pressure (also all Grove)

1шт.

27

A24385

HOSE

- return (also all Grove)

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - return hose (5/8" clamp)

1шт.

29

A22926

CLAMP

- hose (strap type)

1шт.

Выбрано товаров: 34
