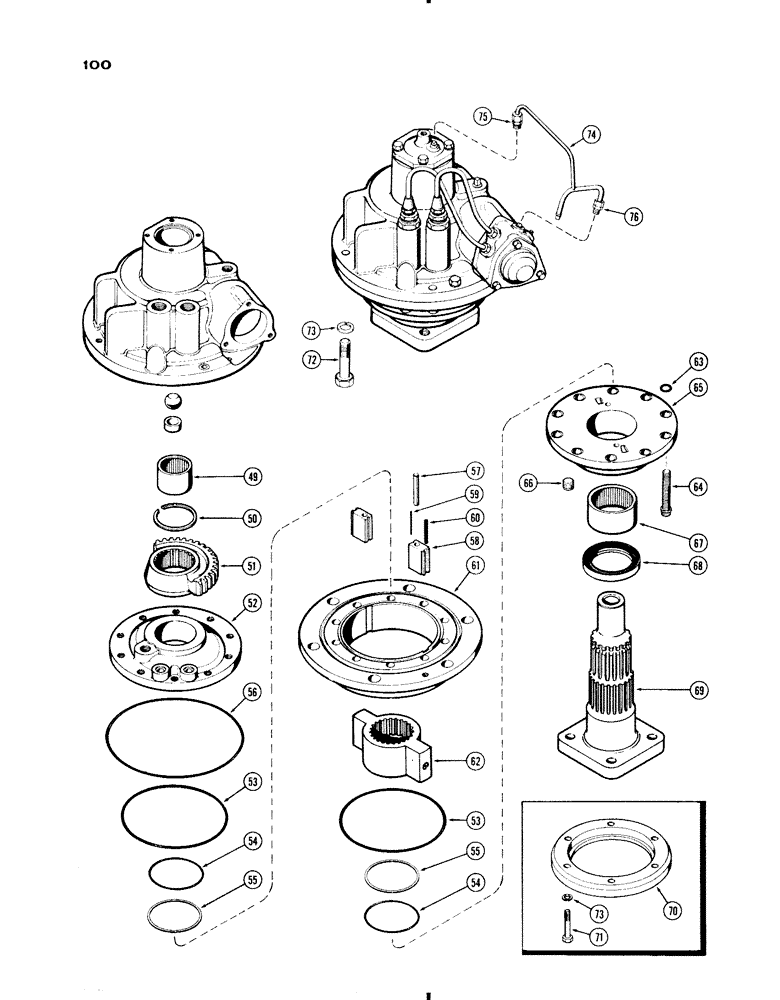

Запчасти Case IH 830-SERIES (100) - A33058 POWER STEERING GEAR, 830 GEN. PURP. AND HI-CLR. (05) - STEERING

A33058

GEAR ASSY. - steering (cont. from Figure 98), Includes: Ref. 49 - 69 and 2 - 48 on Fig. 98

1шт.

49

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, spindle, upper

1шт.

50

A27760

RING, SNAP

RING - snap, sector gear ret.

1шт.

51

A33061

GEAR

- sector

1шт.

52

A32202

COVER - vane, upper

1шт.

53

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O"RING - body, outer (6-1/4 x 6-1/2 x 1/8")

2шт.

54

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

"O"RING - body, inner (3-1/4 x 3-7/16 x 7/64")

2шт.

55

A32191

RING

- back-up (teflon)

2шт.

56

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O"RING - cover (8-1/4 x 8-1/2 x 1/8")

1шт.

57

A32201

SEAL

PIN - stationary vane (3/8 x 3-21/32")

2шт.

58

A34187

VALVE POPPET

VANE - stationary (2-11/64" high)

2шт.

59

A57043

SEAL

SEAL - stationary vane (9/64 x 2-3/16" rubber) (Replaces A33522)

2шт.

60

A32199

SEAL

SEAL - stationary vane

2шт.

61

A32193

BODY - vane

1шт.

62

A32194

VANE ASSY. - torque motor

1шт.

63

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O"RING - cover bolts (7/16 x 5/8 x 3/32")

10шт.

64

166-74

BOLT - cover (7/16 x 3-1/4" N.C., 12 pt. hd) 12 Pt Flg, 7/16"-14 x 3 1/4", G8

10шт.

65

A32187

COVER - vane, lower

1шт.

66

221-841

PLUG

- cover (1/4" P.T., sckt. hd.)

1шт.

67

A32188

BEARING, NEEDLE,3" ID x 3.5045" OD x 1.125"

BEARING - needle, spindle lower (3" I.D. x 1-1/4")

1шт.

68

A32189

OIL SEAL

SEAL - oil, spindle (3 x 4 x 1/2")

1шт.

69

A32186

SPINDLE - steering (w/two spline shaft)

1шт.

70

A33869

RING - str. gear support

1шт.

71

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- (used w/A33869 ring) (5/8 x 3-1/2" N.C. hex.)

1шт.

71

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- (used w/A33869 ring) (5/8 x 3-3/4" N.C. hex.)

5шт.

72

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

(used w/o ring) Hex, 5/8"-11 x 2 1/4", G5

1шт.

72

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(used w/o ring) Hex, 5/8"-11 x 2 1/2", G5

5шт.

73

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

74

A23346

TUBE ASSY.

TUBE - bleed

1шт.

75

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

CONNECTOR - tube (3/8" P.T. male)

1шт.

76

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - tube (1/8" P.T. male)

1шт.
