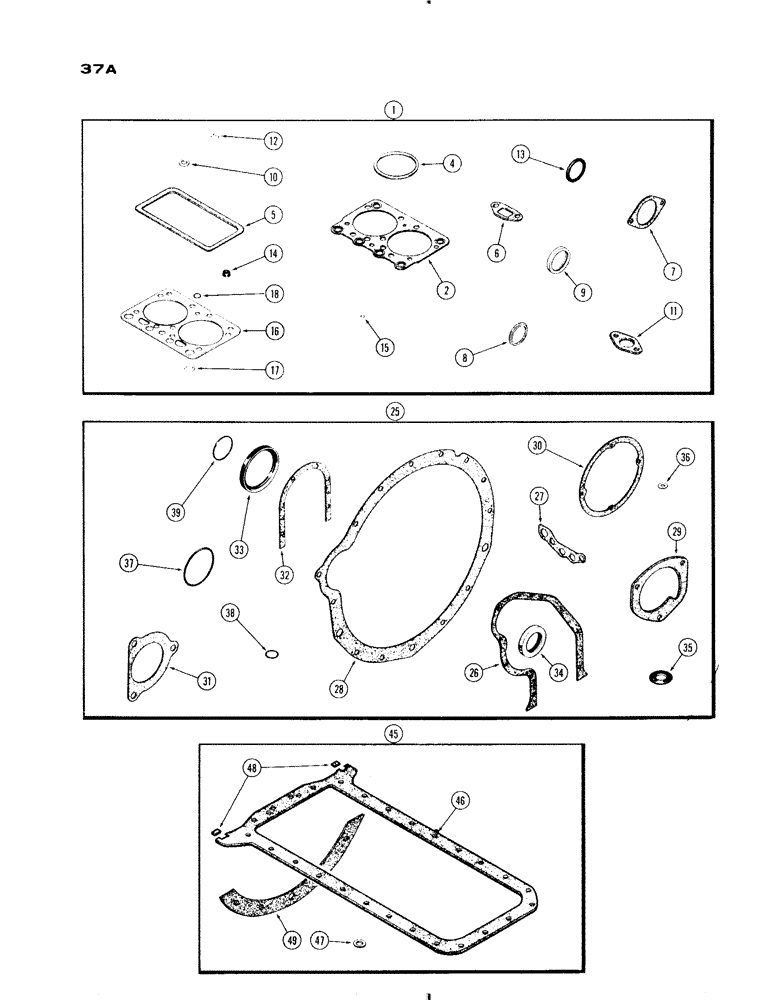

Запчасти Case IH 830-SERIES (037A) - ENGINE GASKET KITS, MODEL 830, 284 SPARK IGNITION ENGINE (02) - ENGINE

1

A41579

KIT

GASKET KIT - valve grind (incl. Refs. 2 thru 15) (1st used eng. ser. no. 2147269) (Replaces A40966), Includes: Ref. 2 - 18

1шт.

For complete engine overhaul, order (1) A40349, (1) A40347 and (1) A41579 or (1) A40345.

1шт.

1

A189531

KIT

GASKET KIT - valve grind (incl. Refs. 5 thru 18) (Used prior to eng. ser. no. 2147269) (Order A41579) (Replaces A40345), Includes: Ref. 2 - 18

1шт.

For complete engine overhaul, order (1) A40349, (1) A40347 and (1) A41579 or (1) A40345.

1шт.

2

A57593

GASKET

- cylinder head

2шт.

4

A34686

RING

- fire, cyl. head gasket (std.)

4шт.

5

A27972

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

6

A27905

GASKET

- water manifold

4шт.

7

A28113

GASKET

- thermostat housing

1шт.

8

A11889

GASKET

- exhaust manifold

4шт.

9

A29943

GASKET

- intake manifold

2шт.

10

A23685

GASKET

- breather tube

2шт.

11

A26434

GASKET

- carburetor

1шт.

12

A23684

GASKET

GASKET - cover studs

4шт.

13

A30954

GASKET

SEAL - thermostat

1шт.

14

A10726

SEAL

SHIELD - oil, intake vlave stem

4шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

16

A23117

GASKET

- cyl. head (Order 1-A57593 & 2-A34686)

2шт.

17

A7669

RING

- cyl. head water passage

4шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

25

A40349

KIT

GASKET KIT - cylinder block, Includes: Ref. 26 - 39

1шт.

For complete engine overhaul, order (1) A40349, (1) A40347 and (1) A41579 or (1) A40345.

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

A21084

GASKET

- oil filter base

1шт.

28

A11649

GASKET

- cyl. block (used w/torque conv.)

1шт.

29

A57596

GASKET

- water pump (Replaces A27899)

1шт.

30

A27867

GASKET

- timing cover cap

1шт.

31

A27933

GASKET

- starter

1шт.

32

A32830

GASKET

- rear seal retainer

1шт.

33

A23085

OIL SEAL

- oil, crankshaft, rear, not part of kit

1шт.

34

A57342

SEAL

- oil, crankshaft, front (replaces A23433), not part of kit

1шт.

35

A7292

SEAL

- oil, governor shaft

1шт.

36

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump (not used w/frt. mtd. pump)

2шт.

37

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - hyd. pump hole cover

1шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

39

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (used w/std. trans.)

1шт.

45

A189516

KIT

GASKET KIT - oil pan (Replaces A40347), Includes: Ref. 46 - 49

1шт.

For complete engine overhaul, order (1) A40349, (1) A40347 and (1) A41579 or (1) A40345.

1шт.

46

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40347)

1шт.

47

A58608

GASKET

- drain plug (Replaces A27927)

1шт.

48

A33017

OIL PAN GASKET SET

- rear corner (used w/torq. conv.)

2шт.

49

A57966

GASKET

- torque convertor (lower half only)

1шт.
