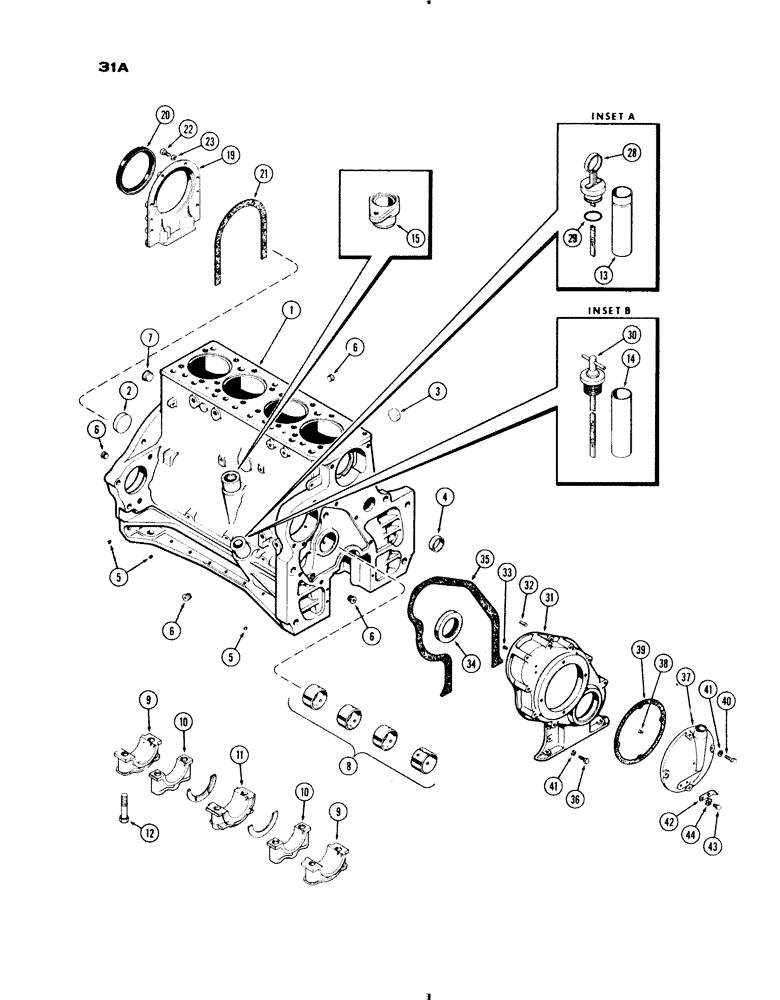

Запчасти Case IH 830-SERIES (031A) - CYLINDER BLOCK ASSEMBLY, MODEL 830, 284 SPARK IGNITION ENGINE, USED PRIOR TO ENG. S/N 2174225 (02) - ENGINE

A40360

BLOCK ASSY. - short (incl, stripped block, piston assy., connecting rods & brgs., oil pump, crankshaft & brgs., camshaft & timing gears) (Casting No. A34934), Includes: Ref. 1 - 23

1шт.

1

A23510

X

BLOCK ASSY. - stripped (Casting No. A34934), Includes: Ref. 2 - 15

1шт.

2

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

3

41-1622

PLUG,Cup, 1 3/8", Stainless

- left hand side (1-3/8" cup type) (not used w/all blocks)

1шт.

4

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery (1-3/4" cup type)

1шт.

5

221-41

PLUG

- (1/8" P.T., sltd. hd.)

3шт.

6

221-1843

PLUG

- oil gallery (3/8" P.T., ctsk. hd.)

4шт.

7

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - water gallery (1" P.T., ctsk. hd.)

1шт.

8

A23577

KIT

BUSHING SET - camshaft

1шт.

9

A24941

CAP

- crankshaft brg., front & rear

2шт.

10

A24942

CYLINDER END CAP

CAP - crankshaft brg., intermediate

2шт.

11

A24943

CAP

- crankshaft brg., thrust, center

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg, caps (5/8 x 3-1/4" N.C. spec.)

10шт.

13

A34540

TUBE

SOCKET - oil level gauge (See inset A) (1st used eng, ser. no, 2141473)

1шт.

14

A20714

X

SOCKET - oil level gauge (See inset B) (used prior to eng. ser. no. 2141473) (Order A34540)

1шт.

15

A7621

INSERT - distributor support

1шт.

19

A57457

RETAINER

- rear oil seal (Replaces A32182)

1шт.

20

A23085

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

21

A32830

GASKET

- rear oil seal retainer

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

23

92-6

LOCK WASHER,3/8"

6шт.

28

A34541

DIPSTICK

GAUGE ASSY. - oil levfel (See insert A) (1st used eng. ser. no. 2141473), Includes: Ref. 29

1шт.

29

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil levle gauge (3/4 x 1 x 1/8")

2шт.

30

A20739

GAUGE

- oil level (See inset B) Used prior to eng. ser. no. 2141473)

1шт.

31

A57416

COVER ASSY. - timing gear (Replaces A23334), Includes: Ref. 32 - 34

1шт.

32

A27840

PIN

- cover locating (5/16 x 3/4")

2шт.

33

A27869

BUTTON - thrust, bumper

1шт.

34

A57342

SEAL

- oil, front (2-5/8 x 3-5/8 x 3-5/8 x 1/2") (Replaces A23433)

1шт.

35

A33018

GASKET

- timing gear cover

1шт.

36

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

8шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

37

A20833

CAP ASSY. - timing gear cover, Includes: Ref. 38

1шт.

38

A27869

BUTTON - thrust, bumper

1шт.

39

A27867

GASKET

- cap

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cap Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

14шт.

42

A28218

POINTER - timing indicator

1шт.

43

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

44

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.
