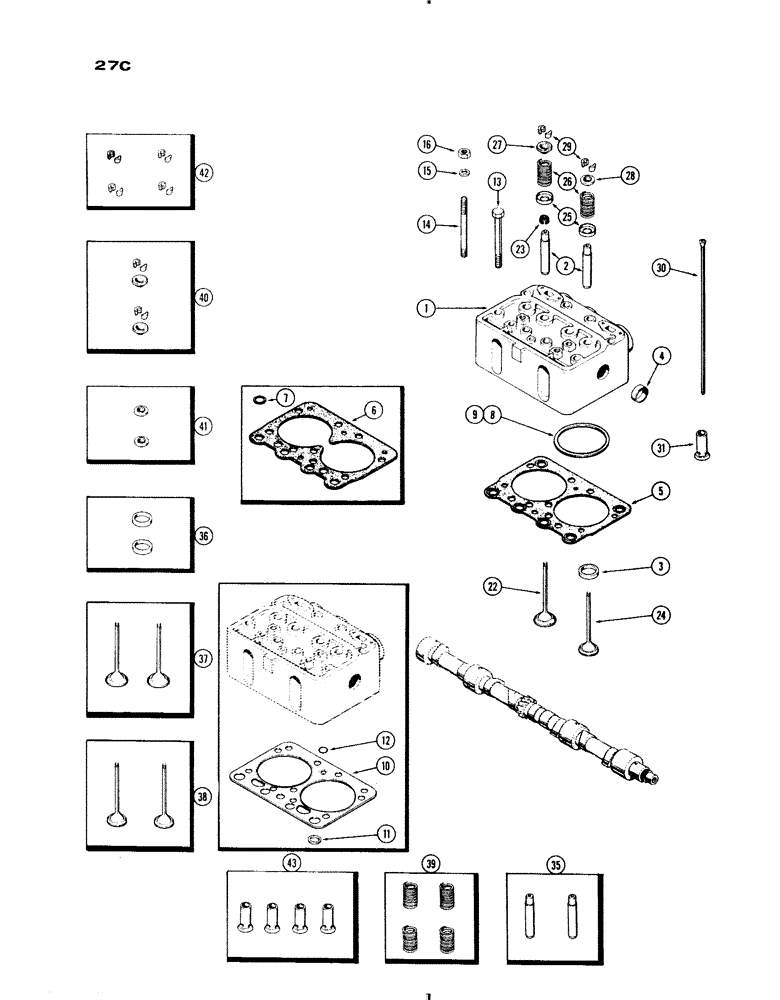

Запчасти Case IH 830-SERIES (027C) - CYLINDER HEAD AND VALVE TRAIN, MODEL 830, 284 SPARK IGNITION ENGINE (02) - ENGINE

1

A20809

CYLINDER HEAD

HEAD ASSY. - cylinder (830 gasoline), Includes: Ref. 2 - 4

2шт.

1

A21243

HEAD

ASSY. - cylinder (830 L.P. gas), Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order ref. 35)

4шт.

3

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 36)

2шт.

4

A34124

PLUG,Cup, 1 5/8", Stainless

- cyl. head (1-41/64" cup type)

2шт.

5

A57593

GASKET

- cyl. head, w/grommets (Replaces A41385 & A57226)

2шт.

6

NS

NOT SERVICED

GASKET - cyl. head (Order A57593) (used prior to eng. ser. no. 2196521)

2шт.

7

NS

NOT SERVICED

RING - cyl. head gasket (13/16 x 1-1/16 x .008" fiber) (used w/Ref. 6 only) (Order A57593)

8шт.

8

A34686

RING

- fire, cyl. head (std.) (see Ref. 9)

4шт.

9

A34688

RING

- fire, cyl. head (oversize, w/blue stripe)

4шт.

10

A23117

GASKET

GASKKET - cylinder head (Order 1-A57593 & 2-A34686) (used prior to eng. ser. no. 2147269)

2шт.

11

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber) (used w/A23117 cyl. head gasket)

4шт.

12

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32") (used w/A23117 cyl. head gasket)

2шт.

13

A23355

BOLT

- cyl. head (9/16 x 6" N.C. hex.) (18 used gas) (16 used L.P.)

1шт.

14

A32835

STUD - cyl. head (L.P.)

2шт.

15

A27870

WASHER

- cyl. head stud (19/32 x 15/16 x 11 Ga.)

2шт.

16

129-553

NUT - cyl. head stud (9/16" N.C. hex.)

2шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake, (Order ref. 37)

4шт.

23

A10726

SEAL

SHIELD - oil, intake valve

4шт.

24

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 38)

4шт.

25

A27866

SEAT

- valve springs

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 39)

8шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 40)

4шт.

28

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve spring (Order ref. 41)

4шт.

29

NSS

NOT SOLD SEPARAT

KEEPER - valve spring (Order ref. 42)

16шт.

30

A21060

ROD

- push

8шт.

31

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 43)

8шт.

35

A21673

GUIDE

KIT - valve (Set of 2)

4шт.

36

A33454

INSERT

KIT - exhaust valve (Set of 2)

2шт.

37

A33457

VALVE

KIT - intake (Set of 2)

2шт.

38

A33458

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 2)

2шт.

39

A21694

SPRING

KIT - valve (Set of 4)

2шт.

40

A21657

LOCK

RETAINER KIT - intake valve spring (Set of 2 retainers & 4 keepers)

2шт.

41

A57433

COIL

ROTO CAP KIT - exhaust valve (Set of 2) (Replaces A24993)

2шт.

42

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.

43

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.
