Запчасти Case IH 830-SERIES (021A) - ENGINE GASKET KITS, MODEL 830, 301 DIESEL ENGINE (02) - ENGINE

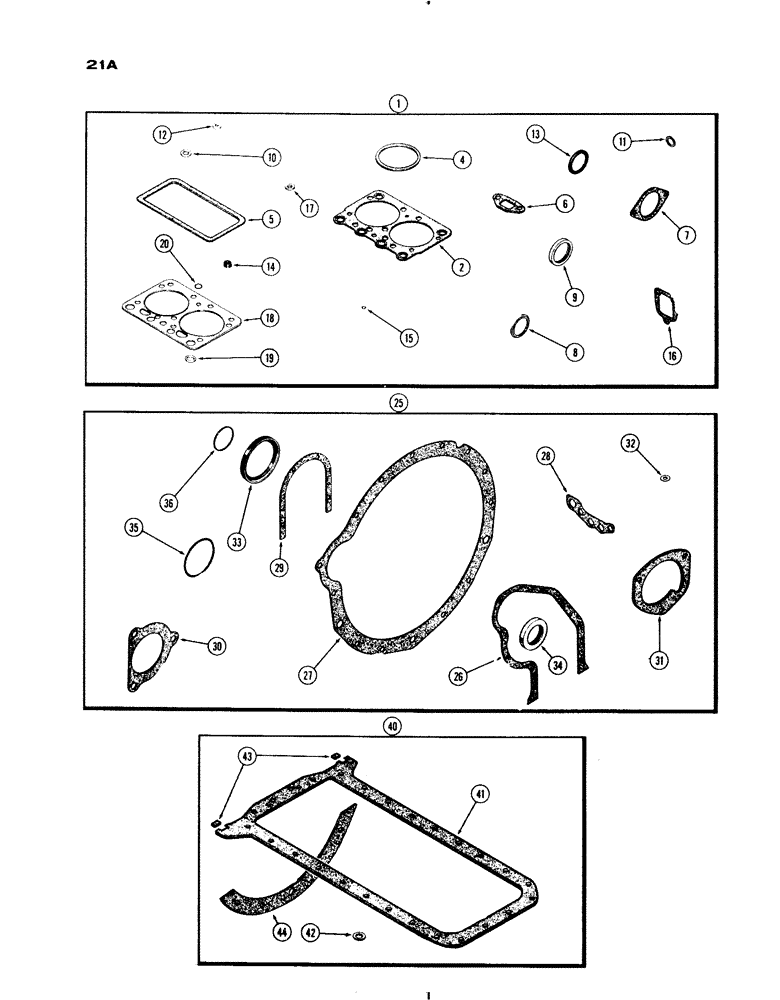

Схема запчастей Case IH 830-SERIES - (021A) - ENGINE GASKET KITS, MODEL 830, 301 DIESEL ENGINE (02) - ENGINE
5
20
26
1
43
31
44
9
41
27
17
30
28
36
29
35
13
15
32
6
40
19
4
34
14
25
7
16
12
33
18
8
2
11
42
10

Артикул

Название

Примечание

Количество

1

A189529

KIT

GASKET KIT - valve grind (incl. Ref. 2 thru 17) (1st used eng. ser. no. 2147269) (Replaces A40927) (Replaces A41576), Includes: Ref. 2 - 20

1шт.

For complete engine overhaul, order (1) A40348, (1) A40347and (1) A41576 or (1) A40338.

1шт.

1

A40338

X

GASKET KIT - valve grind (incl. Refs. 5 thru 20) (used prior to eng. ser. no. 2147269) (Order A41576), Includes: Ref. 2 - 20

1шт.

For complete engine overhaul, order (1) A40348, (1) A40347and (1) A41576 or (1) A40338.

1шт.

2

A57593

GASKET

- cylinder head

2шт.

4

A34686

RING

- fire, cylinder head gasket (std.)

4шт.

5

A57595

CYLINDER HEAD GASKET

- cyl. head cover (Replaces A27972)

2шт.

6

A27905

GASKET

- water manifold

4шт.

7

A28113

GASKET

- thermostat housing

1шт.

8

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

9

A21054

MANIFOLD GASKET

- intake manifold

2шт.

10

A23685

GASKET

- breather tube

2шт.

11

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

4шт.

12

A23684

GASKET

GASKET - cover studs

4шт.

13

A30954

GASKET

SEAL - thermostat

1шт.

14

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

16

A22939

GASKET

- decompression control lever (not used w/this model)

2шт.

17

A34133

GASKET

- breather tube

2шт.

18

A23117

GASKET

- cyl. head (Order 1-A57593 & 2-A34686)

2шт.

19

A7669

RING

- cyl. head water passage

4шт.

20

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

25

A189517

KIT

GASKET KIT - cylinder block (Replaces A40348), Includes: Ref. 26 - 36

1шт.

For complete engine overhaul, order (1) A40348, (1) A40347and (1) A41576 or (1) A40338.

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

A11649

GASKET

- cyl. block (used w/torque conv.)

1шт.

28

A21084

GASKET

- oil filter base

1шт.

29

A32830

GASKET

- rear oil seal retainer

1шт.

30

A27933

GASKET

- starter

1шт.

31

A57596

GASKET

- water pump (replaces A27899)

1шт.

32

G49401

SHIM,.005" Thk

Balancer (Replaces A22670) .005" Thk

4шт.

32

G49402

SHIM,.010" Thk

Balancer (Replaces A22671) .010" Thk

4шт.

33

A23085

OIL SEAL

- oil, crankshaft, rear

1шт.

34

A57342

SEAL

- oil, crankshaft, front

1шт.

35

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump housing

1шт.

36

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (used w/std. trans.)

1шт.

40

A40347

GASKET

KIT - oil pan, Includes: Ref. 41 - 44

1шт.

For complete engine overhaul, order (1) A40348, (1) A40347and (1) A41576 or (1) A40338.

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 40)

1шт.

42

A58608

GASKET

- drain plug (Replaces A27927)

1шт.

43

A33017

OIL PAN GASKET SET

- rear corner (used w/torq. conv.)

2шт.

44

A57966

GASKET

- torque converter (lower half only)

1шт.

Выбрано товаров: 42
