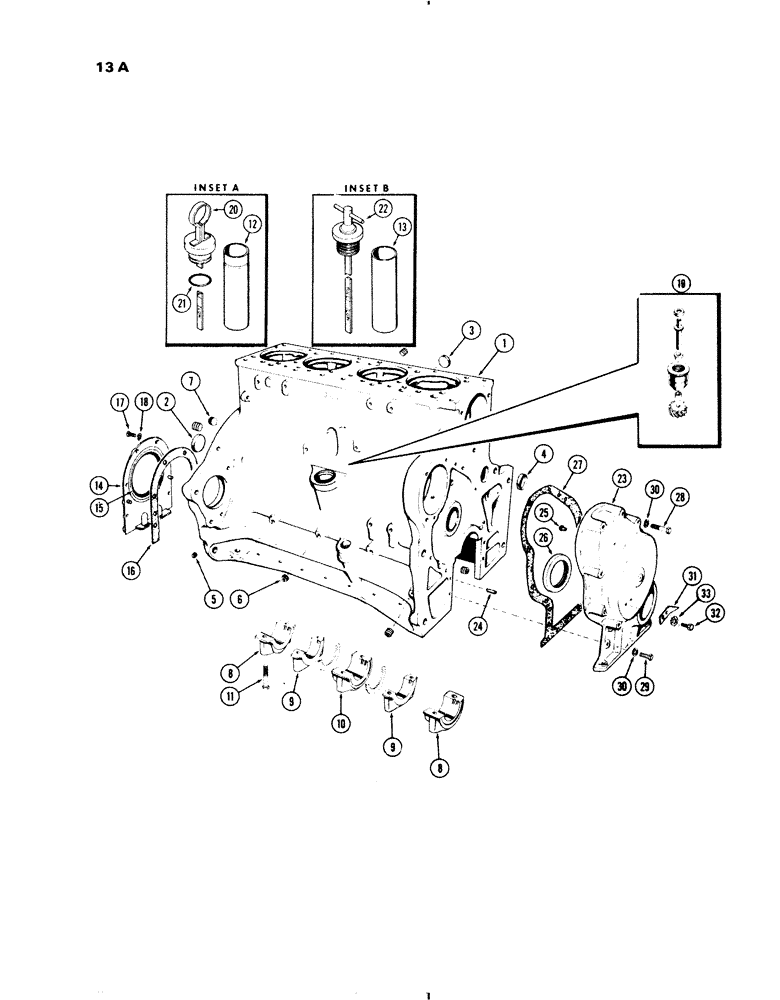

Запчасти Case IH 830-SERIES (013A) - CYLINDER BLOCK ASSEMBLY, MODEL 830, 301 DIESEL ENGINE (02) - ENGINE

A40361

SHORT ENGINE

BLOCK ASSY. - short (incl. stripped block, piston assy, connecting rods & brgs. crankshaft & brg., camshaft, timing gears, push rod lifters & camshaft bushings) (casting No. 966747), Includes: Ref. 1 - 19

1шт.

1

A23494

BLOCK

ASSY. - stripped (Casting No. 966747), Includes: Ref. 2 - 13

1шт.

2

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

3

41-1622

PLUG,Cup, 1 3/8", Stainless

- left hand side (1-3/8" cup type) (not used w/all blocks)

1шт.

4

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery, front (1-3/4" cup type)

1шт.

5

221-41

PLUG

- (1/8" P.T., sltd. hd.)

2шт.

6

222-1843

FITTING,17/32"-24 x 3/8" NPT

PLUG - (3/8" P.T., sckt. hd.)

1шт.

7

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - (1" P.T., sckt. hd.)

1шт.

8

A24941

CAP

- crankshaft brg., wide

2шт.

9

A24942

CYLINDER END CAP

CAP - crankshaft brg., narrow

2шт.

10

A24943

CAP

- crankshaft brg., thrust

1шт.

11

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg. caps (5/8 x 3-1/4" N.C. spec.)

10шт.

12

A34540

TUBE

SOCKET - oil level gauge (See inset A)

1шт.

13

A20714

X

SOCKET - oil level gauge (See inset B) (Used prior to eng. ser. no. 2141473) (Order A34540)

1шт.

14

A57457

RETAINER

ASSY. - rear oil seal (Replaces A32182)

1шт.

15

A23085

OIL SEAL

- oil (4-3/4 x 5-3/4 x 1/2")

1шт.

16

A32830

GASKET

- rear oil seal retainer

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

6шт.

19

A34266

DRIVE

ASSY. - tachometer (Replaces A33610)

1шт.

20

A34541

DIPSTICK

GAUGE ASSY. - oil level (See inset A) (1st used eng. ser. no. 2141473), Includes: Ref. 21

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O"RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

22

A20739

GAUGE

- oil level (See inset B) (Used prior to eng. ser. no. 2141473)

1шт.

23

A20718

COVER ASSY. - timing gear (Order A57403), Includes: Ref. 24 - 26

1шт.

24

A27840

PIN

- cover locating (5/16 x 3/4")

2шт.

25

A27869

BUTTON - thrust bumper

2шт.

26

A57342

SEAL

- oil (2-5/8 x 3-5/8 x 1/2") (Replaces A23433)

1шт.

27

A33018

GASKET

- timing gear cover

1шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

8шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

10шт.

31

A21362

CLIP

POINTER - timing indicator

1шт.

32

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

33

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.
