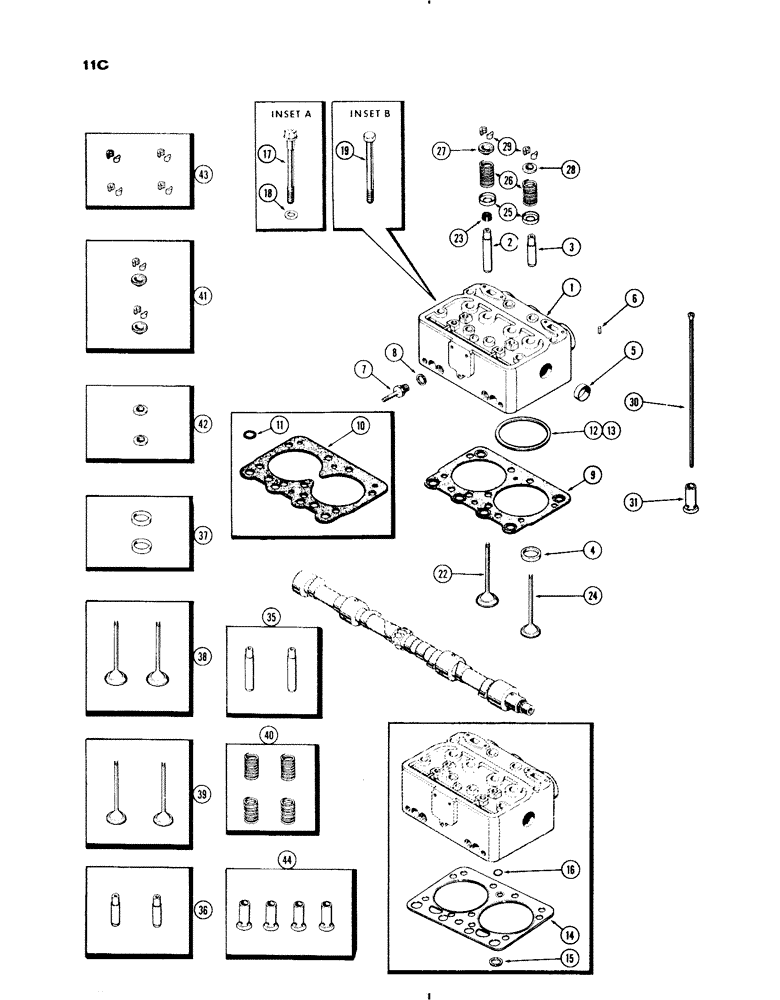

Запчасти Case IH 830-SERIES (011C) - CYLINDER HEAD AND VALVE TRAIN, MODEL 830, 301 DIESEL ENGINE (02) - ENGINE

1

A61993

HEAD (CYLINDER)

HEAD ASSY. - cylinder, Replaces A33644, Includes: Ref. 2 - 8

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 35)

2шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 36)

2шт.

4

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 37)

2шт.

5

A34124

PLUG,Cup, 1 5/8", Stainless

- cyl. head (1-41/64" cup type)

2шт.

6

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel locating (1/8 x 17/64")

2шт.

7

A10678

STUD

- nozzle holder

2шт.

8

A10679

GASKET

- stud (23/32 x 29/32 x 1/32" copper)

2шт.

9

A57593

GASKET

- cyl. head, w/grommets (Replaces A41385 & A57226)

2шт.

10

NS

NOT SERVICED

GASKET - cyl. head (Order A57593) (used prior to eng. ser. no. 2196521)

2шт.

11

NS

NOT SERVICED

RING - cyl. hd. gasket ( 13/16 x 1-1/16 x .008" fiber) (used w/Ref.10 only) (Order A57593)

8шт.

12

A34686

RING

- fire, cly. head (std.) (See Ref. 13)

4шт.

13

A34688

RING

- fire, cyl. head (Oversize, w/blue stripe)

4шт.

14

A23117

GASKET

- cyl. head (Order 1-A57593 & 2-A34686) (used prior to eng. ser. no. 2147269)

2шт.

15

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber) (used w/A23117 cyl. head gasket)

4шт.

16

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O"RING - oil passage (1/2 x 11/16 x 3/32") (used w/A23117 cyl. head gasket)

2шт.

17

A57482

STEP BOLT

BOLT - cyl. head (9/16" N.C. x 6-1/4") (See Inset A) (1st used eng. ser. no. 2199557)

18шт.

18

A27870

WASHER

- (19/32 x 15/16 x 11 Ga.) (used w/A57482 bolt) (1st used eng. ser. no. 2199557)

18шт.

19

A23355

BOLT

- cyl. head (9/16 x 6" N.C. hex.) (See Inset B) (used prior to eng. ser. no. 2199557) (Order A57482 bolt & A27870 washer)

18шт.

22

A43024

VALVE,ENGINE,INLET,S

VALVE - intake

4шт.

23

A10726

SEAL

SHIELD - oil, intake valve

4шт.

24

A43026

VALVE, ENG EXHAUST,

VALVE - exhaust

4шт.

25

A27866

SEAT

- valve springs

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 40)

8шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 41)

4шт.

28

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve spring (Order ref. 42)

4шт.

29

NSS

NOT SOLD SEPARAT

KEEPER - valve springs (Order ref. 43)

16шт.

30

A21060

ROD

- push

8шт.

31

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 44)

8шт.

35

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

36

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

37

A21683

SHAFT

INSERT KIT - exhaust valve (Set of 2)

2шт.

38

REF

INSTRUCTION

VALVE KIT - intake (Set of 2) No Longer Available. Order Individual Valves as Needed, Item 22.

2шт.

39

REF

INSTRUCTION

VALVE KIT - exhaust (Set of 2) No Longer Available. Order Individual Valves as Needed, Item 24

2шт.

40

A21694

SPRING

KIT - valves (Set of 4)

2шт.

41

A21657

LOCK

RETAINER KIT - intake valve spring (Set of 2 retainers & 4 keepers)

2шт.

42

A57433

COIL

ROTO CAP KIT - exhaust valve (Set of 2) (Replaces A24993)

2шт.

43

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.

44

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.
