Запчасти Case IH 830-SERIES (198) - A8339 POWER STEERING GEAR, GENERAL PURPOSE MODELS (05) - STEERING

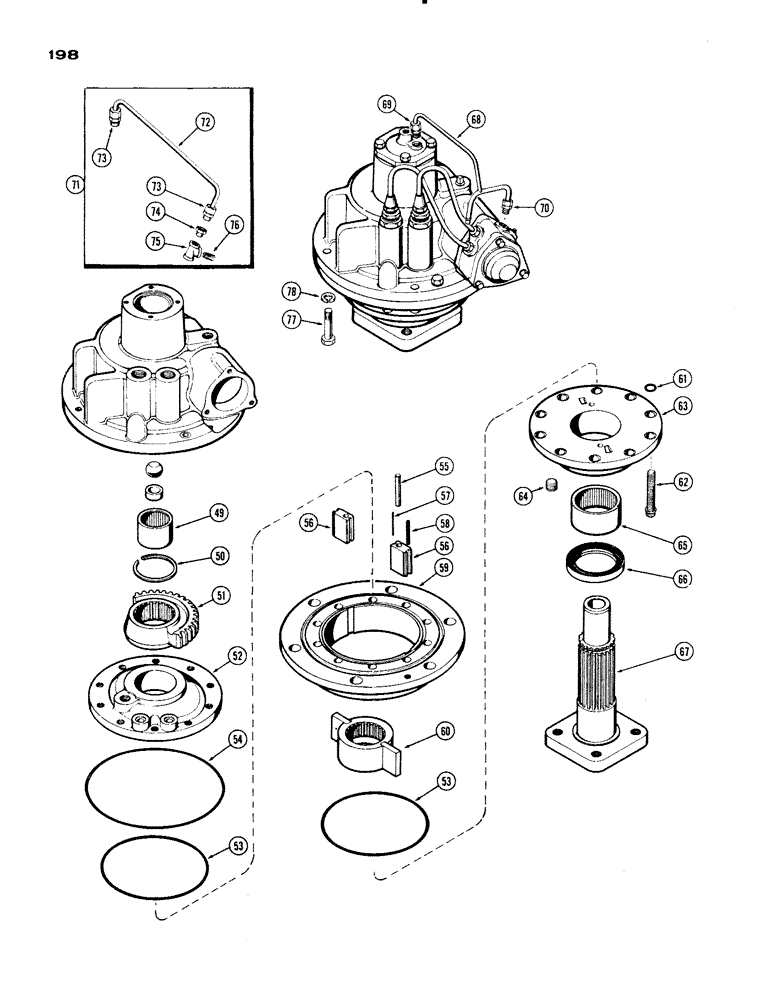

Схема запчастей Case IH 830-SERIES - (198) - A8339 POWER STEERING GEAR, GENERAL PURPOSE MODELS (05) - STEERING
63
49
52
55
53
72
75
54
73
77
74
68
61
51
76
59
78
67
65
60
69
70
62
58
56
53
56
50
64
66
71
57
73

Артикул

Название

Примечание

Количество

A8339

GEAR ASSY. - power steering (Cont.) (incl. ref. 2 - 67)

1шт.

49

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, spindle upper

1шт.

50

A27760

RING, SNAP

RING - snap, sector gear

1шт.

51

A33061

GEAR

- sector

1шт.

52

A7972

COVER - upper, vane

1шт.

53

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - vane body (6-1/4 x 6-1/2 x 1/8")

2шт.

54

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O" RING - cover (8-1/4 x 8-1/2 x 1/8")

1шт.

55

A7975

PIN

- stationary vane (5/16 x 2-1/4")

2шт.

56

A9866

PIVOT

VANE - stationary (1-32/32" high)

2шт.

57

A57042

SEAL

- stationary vane (9/64 x 1-3/4" rubber)

2шт.

58

A9867

SEAL

- stationary vane (1-23/32" lg.)

2шт.

59

A7971

BODY - vane

1шт.

60

A20354

VANE - torque motor

1шт.

61

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - cover bolts (7/16 x 5/8 x 3/32")

10шт.

62

166-72

BOLT - cover, 7/16 x 2-3/4" N.C. socket hd.

10шт.

63

A7973

COVER - vane, lower

1шт.

64

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, Cover Hex Soc, 1/4"-18 NPTF

1шт.

65

A28311

BEARING, NEEDLE,63.5 mm ID x 73.139 mm OD x 38.1 mm

BEARING - needle, spindle lower

1шт.

66

A24166

SEAL

- oil, spindle

1шт.

67

A8649

SPINDLE - steering (w/4" spline)

1шт.

68

A23346

TUBE ASSY.

TUBE - bleed, Start Serial: 8191681

1шт.

69

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

CONNECTOR - 3/8" male P.T.

1шт.

70

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 1/8" male P.T.

1шт.

71

A22761

KIT - bleeder tube (incl. ref. 72 - 76), Serial Range: -8191681

1шт.

72

NSS

NOT SOLD SEPARAT

TUBE - (Order A22761)

1шт.

73

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 5/16" tube x 1/8" P.T.

2шт.

74

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- reducer, 3/8" P.T. to 1/8" P.T.

1шт.

75

221-423

TEE,3/8" NPT

- pipe, 3/8" P.T.

1шт.

76

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - pipe, 3/8" P.T. x 1-1/2"

1шт.

77

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

1шт.

77

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5шт.

78

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

Выбрано товаров: 32
