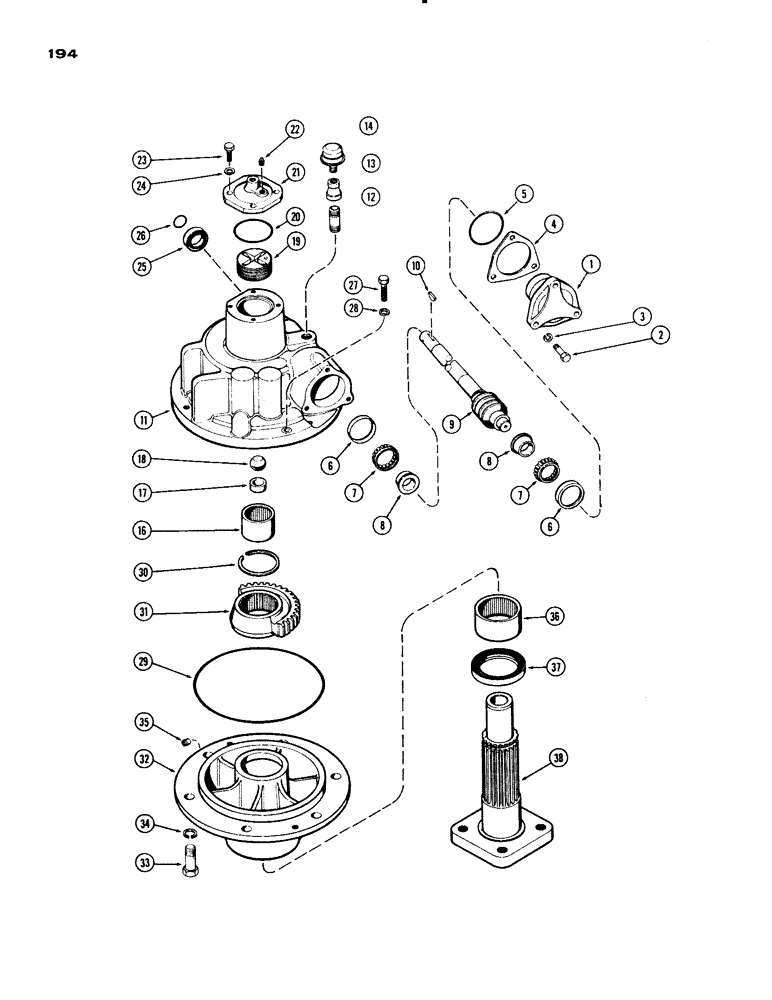

Запчасти Case IH 830-SERIES (194) - STEERING GEAR, MECHANICAL, GEN. PURPOSE (05) - STEERING

1

A8796

CARRIER - bearing, worm shaft

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

A8723

SHIM,.003" Thk

Carrier .003" Thk

1шт.

4

A8724

SHIM - carrier (.005")

1шт.

4

A8725

SHIM,.010" Thk

Carrier .010" Thk

1шт.

5

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - carrier (2-1/2 x 2-3/4 x 1/8")

1шт.

6

A27172

BEARING, CUP,49.21mm OD x 15.88mm W

CUP - bearing, worm shaft

2шт.

7

A27170

BEARING, ROLLER, CYL,25.4mm ID x 11.15mm W

CONE - bearing, worm shaft

2шт.

8

A27171

CONE

RACE - bearing, worm shaft

2шт.

9

A28315

SHAFT - worm

1шт.

10

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - worm shaft (#11 Woodruff)

1шт.

11

A26370

HOUSING - worm shaft & gear

1шт.

12

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - breather, 1/2" P.T. x 1-1/8" lg.

1шт.

13

221-348

COUPLING

REDUCER - 1/2" P.T. to 1/4" P.T.

1шт.

14

A27173

BREATHER

- oil, gear housing

1шт.

16

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, upper

1шт.

17

A28313

SEAT

SADDLE - thrust ball, spindle

1шт.

18

A28312

BALL

- thrust, spindle (1" dia.)

1шт.

19

A28314

PLUG - retainer, thrust ball

1шт.

20

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - top cover (2-3/8 x 2-5/8 x 1/8")

1шт.

21

A26371

COVER - top, steering housing

1шт.

22

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - cover, 1/8" P.T. sq. hd.

1шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

25

A28317

SEAL

SEAL - oil, worm shaft

1шт.

26

A7075

GASKET

GASKET - worm shaft

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- housing, 3/8 x 1-1/2" N.C. hex

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O" RING - housing (8-1/4 x 8-1/2 x 1/8")

1шт.

30

A27760

RING, SNAP

RING - snap, gear

1шт.

31

A33061

GEAR

- sector

1шт.

32

A26372

HOUSING - lower, strg. gear

1шт.

33

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Housing Hex, 5/8"-11 x 2 1/4", G5

6шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

35

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - lower housing, 1/4" P.T. sq. hd.

1шт.

36

A28311

BEARING, NEEDLE,63.5 mm ID x 73.139 mm OD x 38.1 mm

BEARING - needle, lower housing

1шт.

37

A24166

SEAL

- oil, lower housing

1шт.

38

A8649

PEDESTAL - steering spindle

1шт.
