Запчасти Case IH 830-SERIES (190) - STEERING GEAR LINKAGE, THROTTLE LINKAGE, MODEL 730 GROVE (05) - STEERING

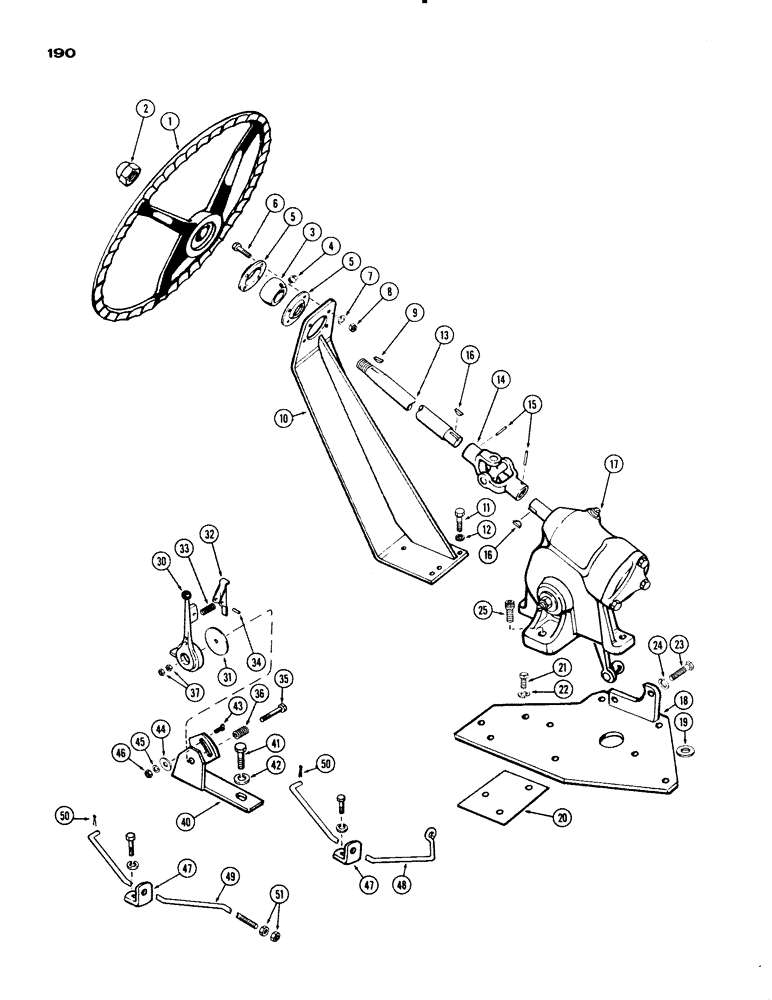

Схема запчастей Case IH 830-SERIES - (190) - STEERING GEAR LINKAGE, THROTTLE LINKAGE, MODEL 730 GROVE (05) - STEERING
50
5
41
23
25
3
36
31
1
17
4
50
12
47
47
5
10
45
34
30
2
24
35
15
42
43
9
33
19
20
49
16
21
11
14
48
51
44
18
6
7
46
13
16
32
40
8
22
37

Артикул

Название

Примечание

Количество

1

A7668

WHEEL

- steering

1шт.

2

A8744

NUT

- acorn, strg., Serial Range: wheel-shaft

1шт.

3

A9598

BALL

- bearing, steering shaft

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

5

A8959

RETAINER

CAP - ball retaining

2шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

4шт.

9

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - wheel to shaft (Hi Pro #808)

1шт.

10

A10279

SUPPORT - steering shaft & bearing

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

12

92-8

LOCK WASHER,1/2"

3шт.

13

A8957

SHAFT - steering

1шт.

14

A7511

JOINT

ASSY. - universal

1шт.

15

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

2шт.

16

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - univ. joint (#11 Woodruff)

2шт.

17

A9435

HOUSING ASSY. - steering gear (Repairs Figure 192)

1шт.

18

A8965

PLATE - mounting, strg. gear

1шт.

19

A8966

SPACER - mounting plate

2шт.

20

A8967

SHIM - mounting plate

1шт.

21

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

166-111

BOLT - 5/8 x 1" N.C. socket hd.

3шт.

30

A9202

LEVER - hand, throttle control, linkage

1шт.

31

A27062

GASKET

DISC - friction, hand lever, throttle linkage

1шт.

32

A8011

LOCK - fuel shut off (diesel only), throttle linkage

1шт.

33

A8012

SPRING

- lock (diesel only), throttle linkage

1шт.

34

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (Diesel only), throttle linkage 3/16" x 3/4", Slotted

1шт.

35

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

BOLT - pivot, 5/16 x 2-1/4" N.F. hex, throttle linkage

1шт.

36

A27065

SPRING

- lever, throttle linkage

1шт.

37

25-115

NUT,5/16"-24, G5

- 5/16" NF, throttle linkage

2шт.

40

A23185

BRACKET - throttle lever, linkage

1шт.

41

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Throttle linkage Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

42

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Throttle linkage 5/8"

1шт.

43

A9203

STOP - hand lever, throttle linkage

1шт.

44

195-21

WASHER,5/16"

plain (11/32 x 11/16 x 1/16"), Throttle linkage 5/16"

1шт.

45

193-45

WASHER,Ext-Int Tooth, 5/16"

- lock, 5/16" int.-ext. shakeproof, throttle linkage

1шт.

46

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex, throttle linkage

1шт.

47

A23224

SUPPORT - throttle rod, linkage

1шт.

48

A23186

ROD - throttle, rear (Diesel), linkage

1шт.

49

A23187

ROD - throttle, rear (L.P. Gas), linkage

1шт.

50

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Throttle linkage 3/32" x 5/8"

1шт.

51

25-115

NUT,5/16"-24, G5

- 5/16" NF hex, throttle linkage

2шт.

Выбрано товаров: 45
