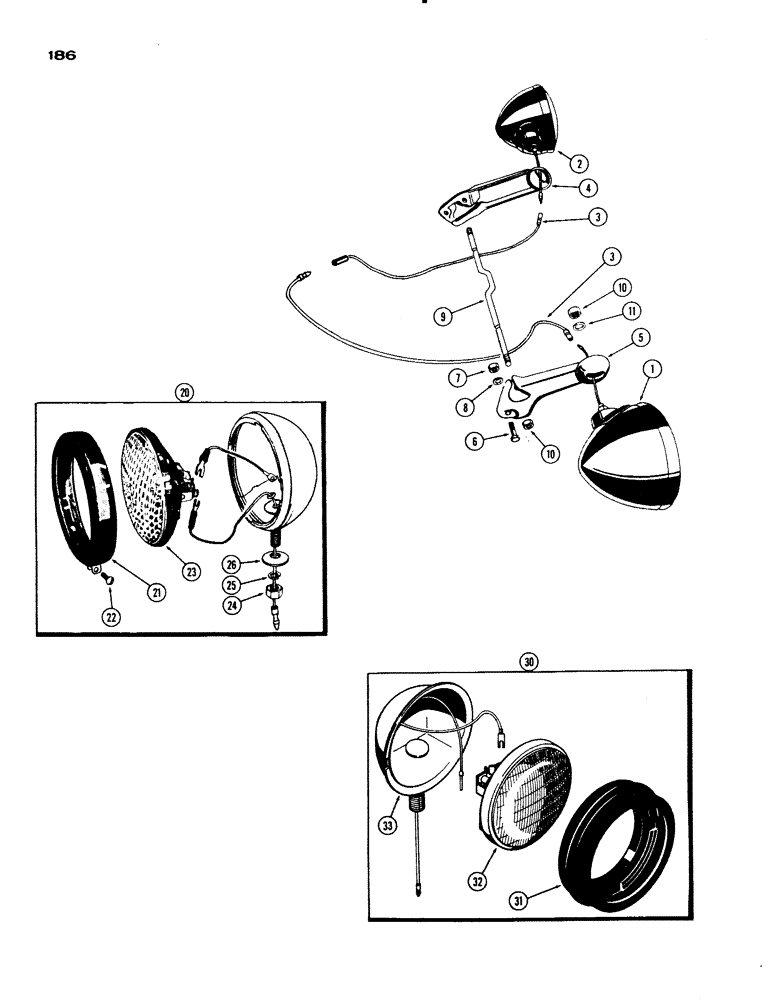

Запчасти Case IH 830-SERIES (186) - CULTIVATING LAMP (04) - ELECTRICAL SYSTEMS

A22718

ATTACHMENT - cultivator lamp (Machinery item)

1шт.

1

A11934

LAMP ASSY. - R.H. (Order A33641) Repairs below

1шт.

2

A11935

LAMP ASSY. - L.H. (Order A33641) Repairs below

1шт.

A33641

LAMP ASSY. - R.H. & L.H. (w/rubber ring) See listing below

2шт.

3

A33642

WIRE - switch to lamp (7-3/4")

2шт.

3

A11945

WIRE - (12") Use with A11934 and A11935 (incl. ref. 4 - 11)

2шт.

4

A7583

BRACKET - mounting, L.H. lamp

1шт.

5

A7582

BRACKET - mounting, R.H. lamp

1шт.

6

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-1/4" N.F. hex hd. (pltd.)

2шт.

7

129-123

NUT,3/8"-24, G5

6шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

A21407

STUD - support, lamp bracket

1шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

Lamp 1/2"-13, G5

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

A11934

LAMP - R.H. (Order A33641 & A33642) (incl. ref. 21 - 26)

1шт.

20

A11935

LAMP - L.H. (Order A33641 & A33642) (incl. ref. 21 - 26)

1шт.

21

B50258

MOLDING - R.H. lamp

1шт.

21

B50255

MOLDING

- L.H. lamp

1шт.

22

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding

1шт.

23

A24572

LAMP

- sealed unit (includes gasket not used this application)

1шт.

24

25-118

NUT,1/2"-20, G5

- mounting, 1/2" N.C. hex

1шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

B50231

X

WASHER - bearing, lamp mounting

1шт.

30

A33641

LAMP - cultivating, R.H. & L.H. (incl. ref. 31 - 33)

2шт.

31

D31441

RETAINER

MOLDING - rubber

1шт.

32

A24572

LAMP

- sealed unit (includes gasket not used this application)

1шт.

33

NSS

NOT SOLD SEPARAT

BODY ASSY. - (Order A33641)

1шт.
