Запчасти Case IH 830-SERIES (185A) - FLASHER WARNING LAMP, BLOCK HEATER (04) - ELECTRICAL SYSTEMS

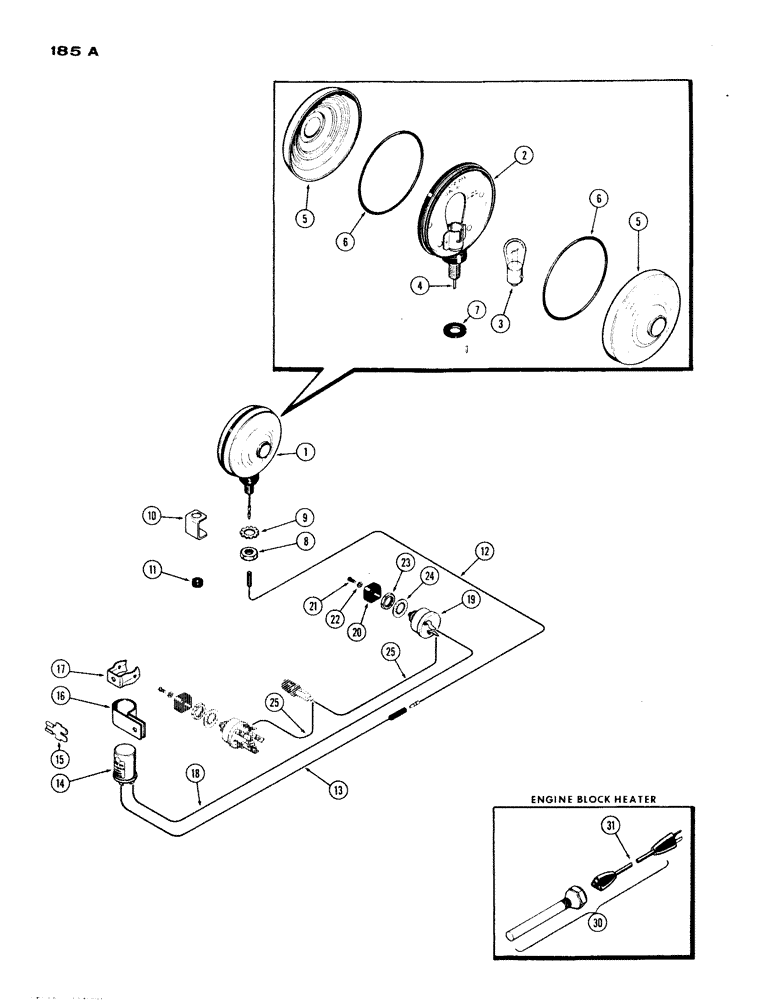

Схема запчастей Case IH 830-SERIES - (185A) - FLASHER WARNING LAMP, BLOCK HEATER (04) - ELECTRICAL SYSTEMS
9
5
6
20
25
24
7
5
12
1
22
19
25
13
11
15
8
30
10
21
23
3
6
16
17
18
2
4
14
31

Артикул

Название

Примечание

Количество

1

A34853

LAMP

ASSY. - flashing (incl. ref. 2 - 7)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY (Order A34853)

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

A41260

WIRE - lead in

1шт.

5

A41261

LENS

- amber

2шт.

6

A41262

O-RING,3.484" ID x 0.139"

"O" RING - lens

2шт.

7

A41263

GASKET - mounting stud

1шт.

8

129-125

NUT,1/2"-20, G5

1шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, 1/2" int. Shakeproof (plated)

1шт.

10

A22880

CLIP

CLAMP - wire

1шт.

11

A27338

GROMMET

- wire through fender

1шт.

12

A34858

WIRE - lamp (68" dark green)

1шт.

12

A3489

WIRE - lamp (85" dark green. West. Spec.)

1шт.

13

A57420

WIRE - (add to harness) (48" dark green)

1шт.

14

A34867

FLASHER UNIT

FLASHER

1шт.

15

A34862

KIT

ADAPTER - flasher (use for steady light)

1шт.

16

A34868

CLAMP

BRACKET - flasher (L.P.G.)

1шт.

17

A34869

BRACKET

- flasher (Gas or Diesel)

1шт.

18

A34861

WIRE - flasher to switch (8" w/L.P.G.)

1шт.

18

A34860

ELECTRICAL WIRE

WIRE - flasher to switch (18" w/Gas or Diesel)

1шт.

19

A34866

SWITCH

- flashing light (less knob)

1шт.

20

A20465

KNOB

- flasher switch

1шт.

21

A20468

SCREW,Spcl, #8 - 32 x 5/16"

-, Serial Range: knob-switch

1шт.

22

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER, lock, #8

1шт.

23

A20467

NUT

- switch retaining

1шт.

24

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, 5/8" int. Shakeproof

1шт.

25

A34865

WIRE - flasher switch to fuse holder and light switch

1шт.

Remove and discard single red wire.

1шт.

30

A40476

HEATER

ASSY. - engine block (incl. ref. 31)

1шт.

31

A40477

ELECTRICAL WIRE

CARD - heater, block

1шт.

Выбрано товаров: 30
