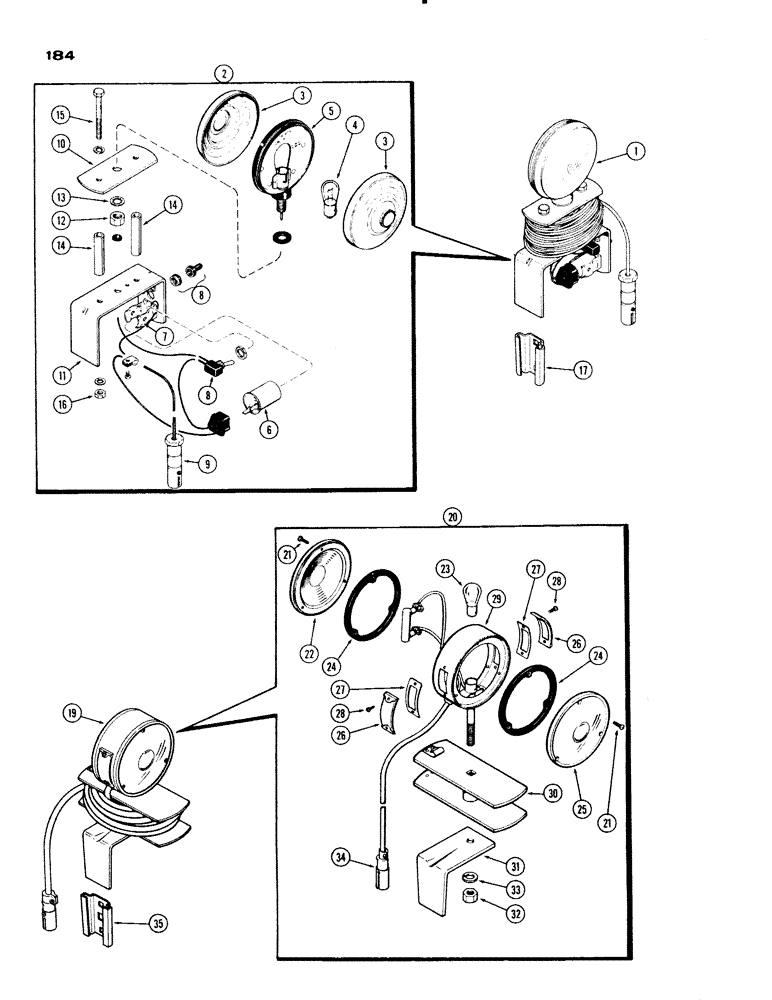

Запчасти Case IH 830-SERIES (184) - WARNING LAMP, FLASHING TYPE, WARNING LAMP, NON FLASHING TYPE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
M20534
LAMP ATT. - flashing warning (incl. ref. 2 - 17)
1шт.
2
NSS
NOT SOLD SEPARAT
LAMP ASSY. - (Order M20534) (incl. ref. 3 - 16)
1шт.
3
M20607
LENS - amber
2шт.
4
A41264
BULB,#1156, 12V
Flasher #1156, 12V
1шт.
5
NSS
NOT SOLD SEPARAT
BODY - (w/cord) (Order M20534)
1шт.
6
A34867
FLASHER UNIT
FLASHER - 12 volt
1шт.
7
A34869
BRACKET
- flasher
1шт.
8
M20608
SWITCH - flasher
1шт.
9
B50259
PLUG
- lamp cord
1шт.
10
NSS
NOT SOLD SEPARAT
SPOOL - lamp cord
1шт.
11
NSS
NOT SOLD SEPARAT
BRACKET - lamp mounting
1шт.
12
425-117
NUT,7/16"-20, G5
- 7/16" N.F. hex (plated)
1шт.
13
192-22
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
14
NSS
NOT SOLD SEPARAT
SPACER - bracket
2шт.
15
113-133
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
- 5/16 x 3-1/4" N.C. hex (plated)
2шт.
16
9635082
NUT,5/16" - 18, Gr 5
2шт.
193-71
LOCK WASHER,Ext-Int Tooth, 5/16"
WASHER, LOCK, Ext-Int Tooth, 5/16"
2шт.
17
A8179
SOCKET
- mounting bracket
1шт.
19
A11066
LAMP ATT. - warning, non flashing type (incl. ref. 20 - 35)
1шт.
20
NSS
NOT SOLD SEPARAT
LAMP ASSY. - (Order A11066), warning, non flashing type (incl. ref. 21 - 34)
1шт.
21
173-203
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
- lens, #6-32 x 1/2" rd. hd., warning lamp, non flashing type
6шт.
22
B50337
LENS
- amber, warning lamp, non flashing type
1шт.
23
33686
BULB
- 12 volt 21 C.P., warning lamp, non flashing type
1шт.
24
B50317
GASKET - lens, warning lamp, non flashing type
2шт.
25
B53692
LENS - red, warning lamp, non flashing type
1шт.
26
B50328
LENS - side, warning lamp, non flashing type
2шт.
27
B50329
GASKET - side lens, warning lamp, non flashing type
2шт.
28
182-43
SCREW - side lens, #6-20 x 5/16" pan hd., warning lamp, non flashing type
4шт.
29
NSS
NOT SOLD SEPARAT
BODY ASSY. - w/cord (Order A11066), warning lamp, non flashing type
1шт.
30
B50330
SPOOL - lamp cord, warning, non flashing type
1шт.
31
B50331
BRACKET - lamp mounting, warning, non flashing type
1шт.
32
25-117
NUT,7/16"-20, G5
- 7/16" N.F. hex, warning lamp, non flashing type
1шт.
33
92-7
LOCK WASHER,7/16"
warning lamp, non flashing type 7/16"
1шт.
34
B50259
PLUG
- lamp cord, warning, non flashing type
1шт.
35
A8179
SOCKET
- mounting bracket, warning lamp, non flashing type
1шт.
Выбрано товаров: 35
