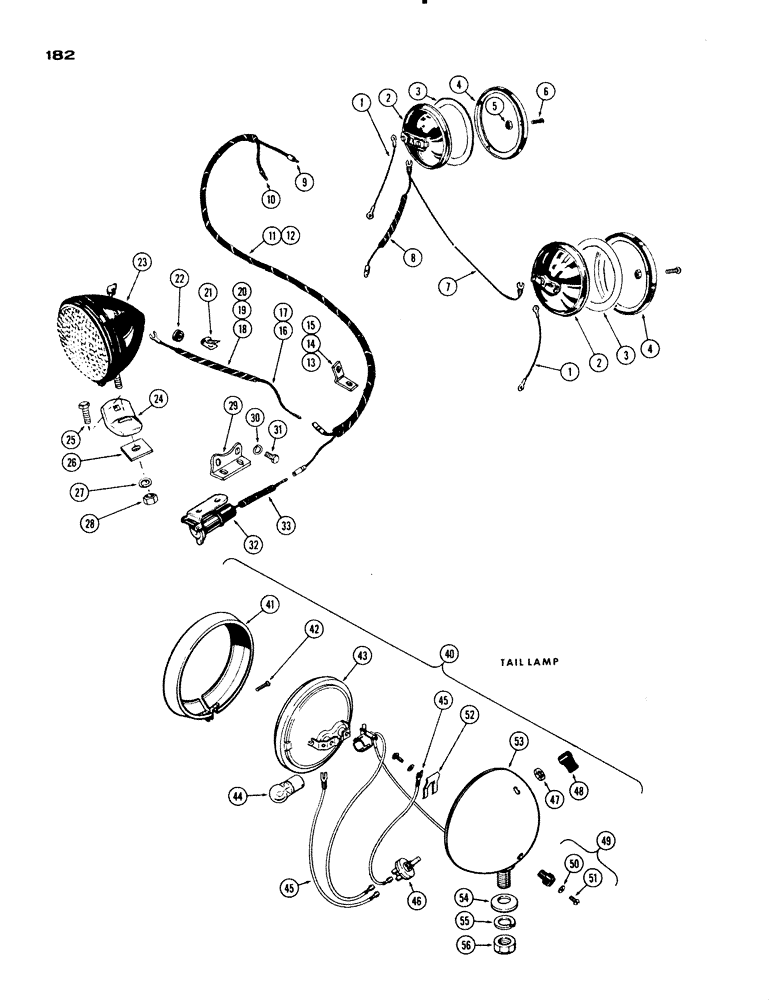

Запчасти Case IH 830-SERIES (182) - LIGHTING EQUIPMENT, TAIL LAMP (04) - ELECTRICAL SYSTEMS

1

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp

2шт.

2

A24572

LAMP

ASSY. - head (incl. ref. 3)

2шт.

3

A11276

GASKET

- lamp retainer

1шт.

4

A11275

RING

- retainer, head lamp

2шт.

5

129-15

NUT,#6-32

6шт.

6

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- #6-32 x 1" pan hed. (pltd.)

6шт.

7

A11764

WIRE - lamp to lamp (16" long)

1шт.

8

A11765

WIRE - lamp conn. (15"), Serial Range: -8201146

1шт.

8

A11943

WIRE - lamp conn. (21"), Start Serial: 8201146

1шт.

9

A21762

WIRE - conn. to rear lamp (53")

1шт.

10

A21763

WIRE - conn. to socket (20")

1шт.

11

A27245

LOOM - rear lamp & socket wires (46")

1шт.

12

A28025

LOOM - socket wire (w/special fenders 19")

1шт.

13

A26696

NO LONGER SERVICED

CLIP - rear lamp & outlet wire (w/std. fender)

1шт.

14

A27039

CLIP - outlet wire (w/special fender)

1шт.

15

A22880

CLIP

- rear lamp wire (w/special fender)

3шт.

16

A27205

WIRE - rear lamp (High Clearance 28")

1шт.

17

A27341

WIRE - rear lamp (G.P. & Std. 43-1/2")

1шт.

18

A26902

LOOM - rear lamp wire (G.P. & Std. 39-1/2")

1шт.

19

A27202

LOOM - rear lamp wire (High Clearance 26")

1шт.

20

A27202

LOOM - rear lamp wire (spec. fender 48")

1шт.

21

A27814

X

CLIP - wire to fender (std. fender only)

3шт.

22

A27338

GROMMET

- lamp thru fender

2шт.

23

A20965

LAMP BASE

LAMP - rear, combination (Repairs below)

1шт.

24

A26216

BRACKET

- rear lamp (G.P. & Std.)

1шт.

24

A26217

X

BRACKET - rear lamp (High Cl. & w/spec. fender)

1шт.

25

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.F. hex hd.

1шт.

26

A27511

REINFORCEMENT - lamp bracket

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

29

A27752

BEARING

BRACKET - outlet socket (w/spec. fender)

1шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 x 3/4" N.C. hex

2шт.

32

A8170

SOCKET

- electrical outlet

1шт.

33

A27482

LOOM - socket wire (8")

1шт.

40

A20965

LAMP BASE

LAMP - combination flood & tail (incl. ref. 41 - 56)

1шт.

41

B50255

MOLDING

- lamp, tail

1шт.

42

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding, tail lamp

1шт.

43

B50335

LAMP - sealed unit, tail lamp

1шт.

44

B50223

BULB

- light (12 volt 15 C.P.), tail lamp

1шт.

45

B50273

WIRE ASSY, tail lamp

2шт.

46

B50275

SWITCH

ASSY., tail lamp

1шт.

47

B50224

SPECIAL NUT

- retaining, switch, tail lamp

1шт.

48

B50310

SWITCH

KNOB - switch, tail lamp

1шт.

49

A50223

TERMINAL KIT, tail lamp (incl. ref. 50 - 52)

1шт.

50

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Tail lamp Ext Tooth, #6

2шт.

51

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- terminal, tail lamp

2шт.

52

10927

SPRING

- terminal, tail lamp

1шт.

53

NSS

NOT SOLD SEPARAT

BODY ASSY. - (Order A20965), tail lamp

1шт.

54

B50231

X

WASHER - bearing, lamp mounting, tail

1шт.

55

92-8

LOCK WASHER,1/2"

tail lamp 1/2"

1шт.

56

25-118

NUT,1/2"-20, G5

- 1/2" N.C. hex, tail lamp

1шт.
