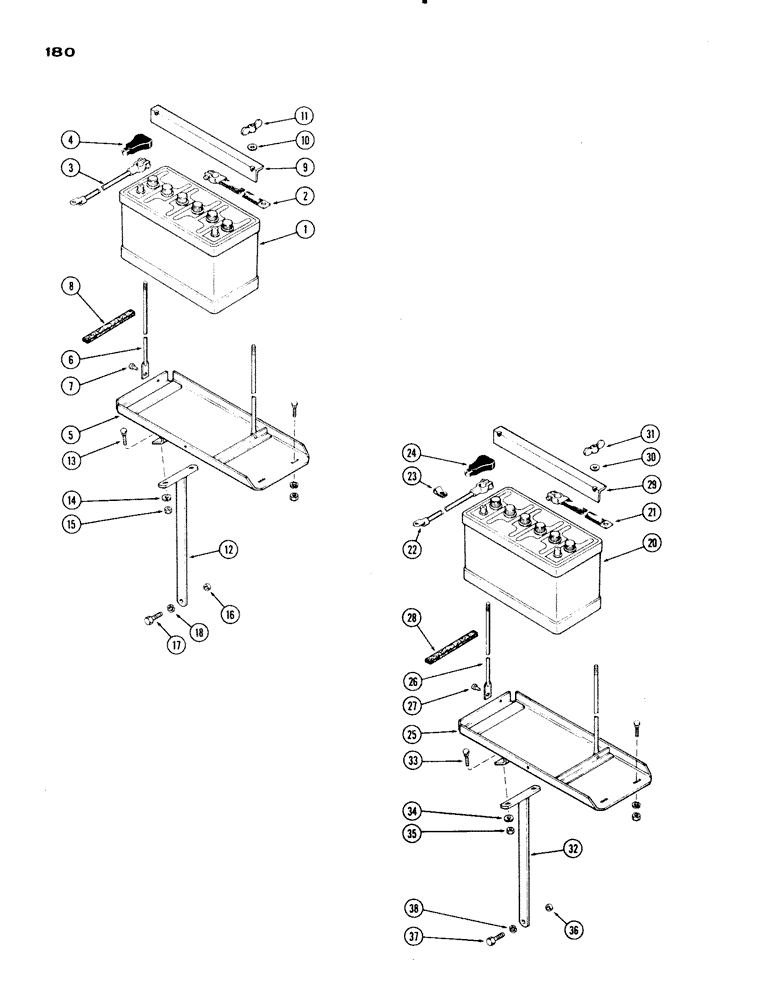

Запчасти Case IH 830-SERIES (180) - BATTERY, SUPPORTS AND CABLES, MODEL 730 GROVE, DIESEL (04) - ELECTRICAL SYSTEMS

1

M20393

X

BATTERY - 12 volt

1шт.

2

A27069

CABLE

STRAP - battery ground (15" long)

1шт.

3

A9168

CABLE

- battery to starter (48" long)

1шт.

4

A27072

COVER

- positive terminal

1шт.

5

A23180

TRAY ASSY. - battery (incl. ref. 6 & 7)

1шт.

6

A23183

STUD - hold down (3/8 x 10-3/8")

2шт.

7

151-203

RIVET - 5/16 x 5/8" truss hd.

2шт.

8

A7390

PAD - battery cushion (1-1/4 x 6-7/8 x 1/4" rubber)

2шт.

9

A23184

ANGLE - hold down, battery

1шт.

10

195-525

WASHER,3/8", SAE

- (13/32 x 13/16 x 5/64")

2шт.

11

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

12

A33775

SUPPORT - battery tray

1шт.

13

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

A21758

BUSHING

SPACER - support (5/8 x 27/32 x 3/8")

1шт.

17

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20

N20389

BATTERY - 12 volt, 730 Grove, L.P.G.

1шт.

21

A27069

CABLE

STRAP - battery ground (15" long), 730 Grove, L.P.G.

1шт.

22

A9168

CABLE

- battery to starter (48" long), 730 Grove, L.P.G.

1шт.

23

A22880

CLIP

- battery cable, 730 Grove, L.P.G.

1шт.

24

A27072

COVER

- positive terminal, 730 Grove, L.P.G.

1шт.

25

A23180

TRAY ASSY. - battery, 730 Grove, L.P.G. (incl. ref. 26 & 27)

1шт.

26

A23183

STUD - hold down (3/8 x 10-3/8" N.C.), 730 Grove, L.P.G.

2шт.

27

151-203

RIVET - stud, 5/16 x 5/8" truss hd., 730 Grove, L.P.G.

2шт.

28

A7390

PAD - battery cushion (1-1/4 x 6-7/8 x 1/4" rubber), 730 Grove, L.P.G.

2шт.

29

A23184

ANGLE - battery hold down, 730 Grove, L.P.G.

1шт.

30

195-525

WASHER,3/8", SAE

- (13/32 x 13/16 x 5/64"), 730 Grove, L.P.G.

2шт.

31

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C., 730 Grove, L.P.G.

2шт.

32

A8584

SUPPORT - battery tray, 730 Grove, L.P.G.

1шт.

33

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , 730 Grove, L.P.G. Short NK, 3/8"-16 x 1", G2

4шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 730 Grove, L.P.G. 3/8"

4шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 730 Grove, L.P.G. 3/8"-16, G5

4шт.

36

A21758

BUSHING

SPACER - support (5/8 x 27/32 x 3/8"), 730 Grove, L.P.G.

1шт.

37

15-888

BOLT

- support, 1/2 x 5-1/2" N.C. hex, 730 Grove, L.P.G.

1шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 730 Grove, L.P.G. 1/2"

1шт.
