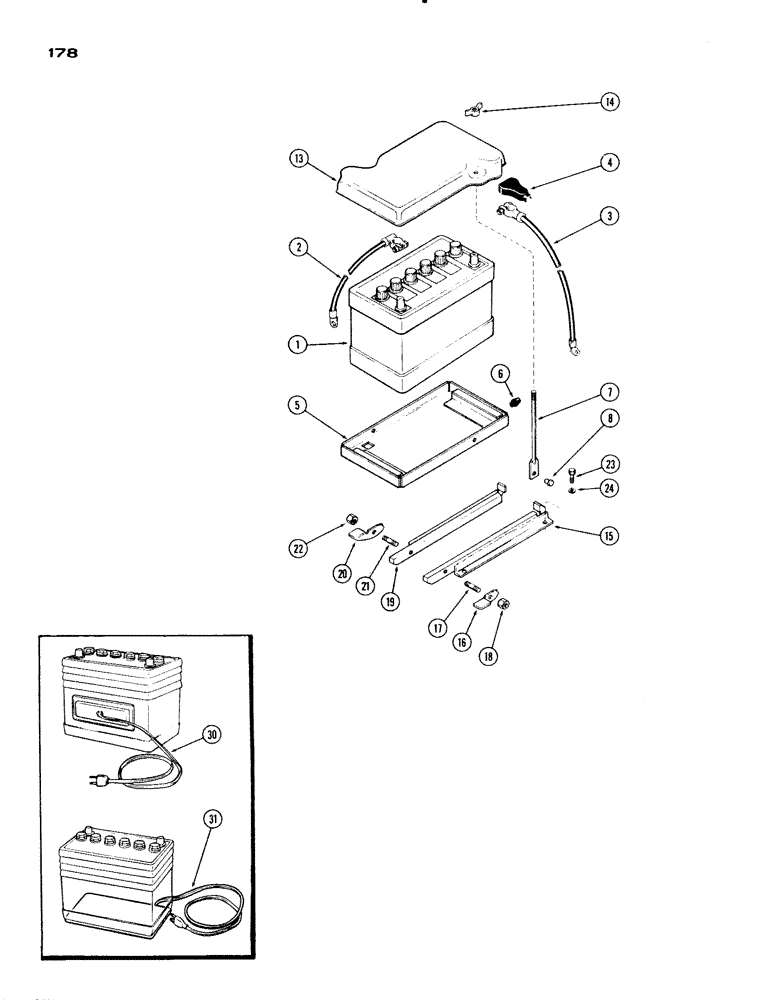

Запчасти Case IH 830-SERIES (178) - BATTERY, SUPPORTS AND CABLES, 251 AND 284 SPARK IGNITION, EXCEPT GROVE (04) - ELECTRICAL SYSTEMS

1

M20389

X

BATTERY - 12 volt

1шт.

2

A7441

CABLE

- battery ground (21" long)

1шт.

3

A21363

CABLE

- battery to starter (30" long)

1шт.

4

A27072

COVER

- positive terminal

1шт.

5

A11166

TRAY ASSY. - battery (incl. ref. 6 - 8)

1шт.

6

A7369

BUMPER - tray

2шт.

7

A7368

STUD - hold down (3/8 x 9-3/8" N.C.)

2шт.

8

151-203

RIVET - stud, 5/16 x 5/8" truss hd.

2шт.

13

A23417

COVER

- battery (Use w/Auto Lite)

1шт.

13

A7389

COVER

- battery (Use w/Exide)

1шт.

14

129-410

WING NUT,3/8"-16

NUT - cover stud, 3/8" N.C. wing

2шт.

15

A7386

SUPPORT - tray, rear (w/std. clutch) (incl. ref. 16 - 18)

1шт.

15

A22812

SUPPORT - tray, rear (w/Case-O-Matic) Use with Auto Lite battery (incl. ref. 16 - 18)

1шт.

16

A7379

LATCH - tray lock

1шт.

17

A7391

STUD

- latch (3/8 x 1-1/8")

1шт.

18

131-177

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8" N.F. hex

1шт.

19

A7376

SUPPORT - tray, front (w/std. clutch) (incl. ref. 20 - 22)

1шт.

19

A22808

SUPPORT - tray, front (w/Case-O-Matic) Use with Auto Lite battery (incl. ref. 20 - 22)

1шт.

19

A11652

SUPPORT - tray, front (w/Case-O-Matic) Use with Exide battery (incl. ref. 20 - 22)

1шт.

20

A7378

LATCH - tray lock

1шт.

21

A7391

STUD

- latch (3/8 x 1-1/8")

1шт.

22

131-177

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8" N.F. hex

1шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

30

M20509

HEATER

ASSY. - side type, battery

1шт.

31

M20510

HEATER

ASSY. - base type, battery

1шт.
