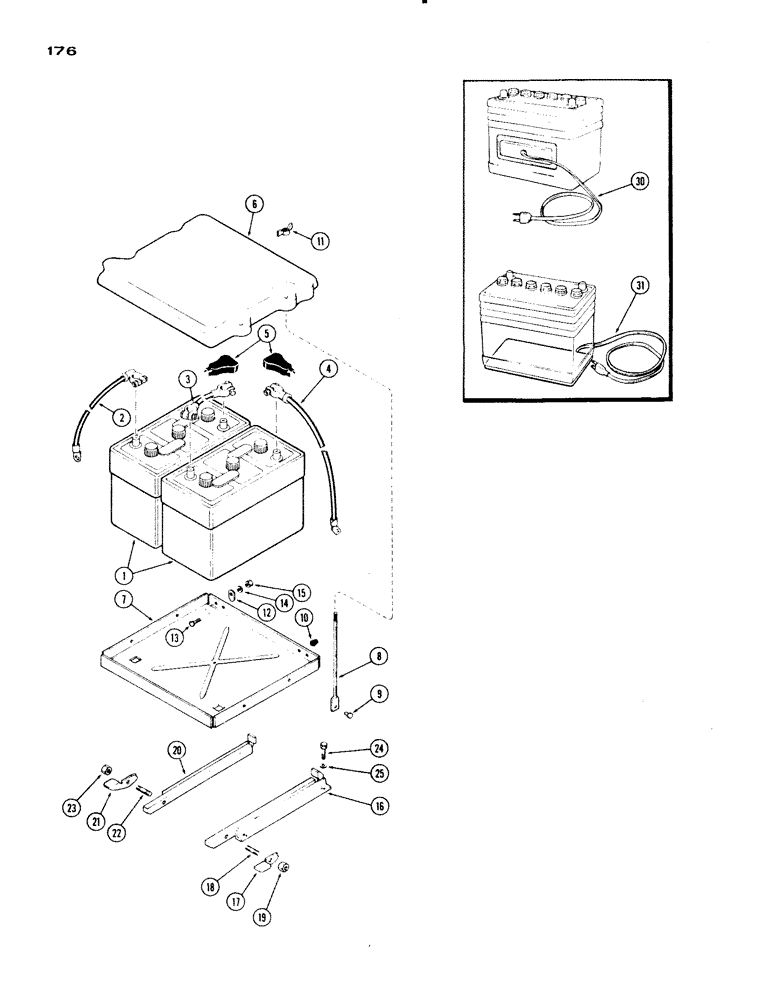

Запчасти Case IH 830-SERIES (176) - BATTERY, SUPPORTS AND CABLES, 267 AND 301 DIESEL, EXCEPT GROVE (04) - ELECTRICAL SYSTEMS

1

M20396

BATTERY - 6 volt

2шт.

2

A7441

CABLE

- battery ground (21" long)

1шт.

3

A7440

CABLE

- battery to battery (21" long)

1шт.

4

A23024

CABLE

- battery to starting motor (33" long)

1шт.

5

A27072

COVER

- positive terminal, battery

1шт.

6

A7382

COVER - battery

1шт.

7

A7370

TRAY ASSY. - battery carrier (incl. ref. 8 - 10)

1шт.

8

A7368

STUD - hold down (3/8 x 9-3/8" N.C.)

4шт.

9

151-203

RIVET - 5/16 x 5/8" truss hd.

4шт.

10

A7369

BUMPER - rubber

2шт.

11

129-410

WING NUT,3/8"-16

NUT - wing, cover stud (3/8" N.C.)

4шт.

12

A7584

STOP - battery tray

2шт.

13

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

A7377

SUPPORT - tray, rear (w/std. clutch) (incl. ref. 17 - 19)

1шт.

16

A22810

SUPPORT - tray, rear (w/Case-O-Matic) Use with Exide battery (incl. ref. 17 - 19)

1шт.

17

A7379

LATCH - lock, tray

1шт.

18

A7391

STUD

- latch (3/8 x 1-1/8")

1шт.

19

131-177

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8" N.F. hex

1шт.

20

A7376

SUPPORT - tray, front (w/std. clutch)

1шт.

20

A22808

SUPPORT - tray, front (w/Case-O-Matic) Use with Auto Lite battery (incl. ref. 21 - 23)

1шт.

20

A11652

SUPPORT - tray, front (w/Case-O-Matic) Use with Exide battery (incl. ref. 21 - 23)

1шт.

21

A7378

LATCH - lock

1шт.

22

A7391

STUD

- latch (3/8 x 1-1/8")

1шт.

23

131-177

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8" N.F. hex

1шт.

24

113-402

BOLT - support, 1/2 x 3/4" N.C. hex Locking, 1/2"-13 x 3/4", G5, Full Thd

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

30

M20509

HEATER

ASSY. - side type, battery

1шт.

31

M20510

HEATER

ASSY. - base type, battery

1шт.
