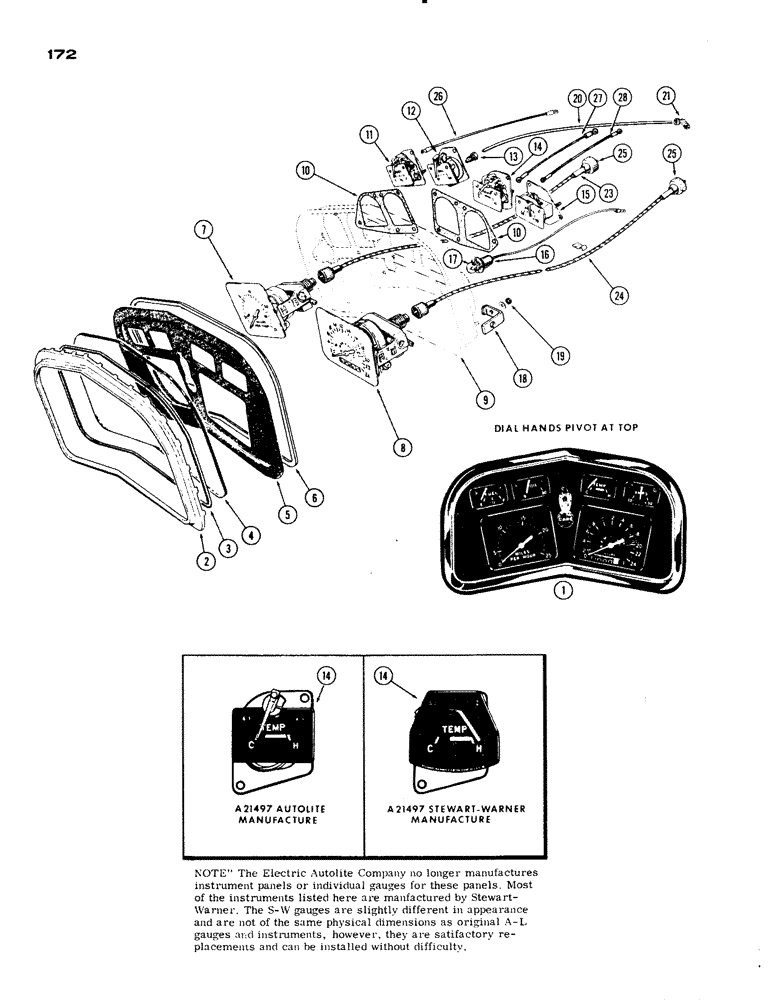

Запчасти Case IH 830-SERIES (172) - INSTRUMENT CLUSTER, AUTO-LITE (04) - ELECTRICAL SYSTEMS

1

A21354

CLUSTER ASSY. - (diesel and gasoline) (incl. ref. 2 - 17)

1шт.

1

A21355

PANEL

CLUSTER ASSY. (L.P.G.) (incl. ref. 2 - 17)

1шт.

2

A21488

X

RIM - glass clamp

1шт.

3

A21490

GASKET

- clamp

1шт.

4

A21489

LENS

GLASS - cluster cover

1шт.

5

A21491

PANEL

FACE - instrument cluster

1шт.

6

A21492

GASKET - face

1шт.

7

A21500

GAUGE

SPEEDOMETER

1шт.

8

A21502

TACHOMETER (Includes hourmeter)

1шт.

9

NSS

NOT SOLD SEPARAT

CASE - instrument

1шт.

10

A21498

GASKET - gauge

2шт.

11

A21496

GAUGE

- fuel (Not used w/L.P.G.)

1шт.

12

A21494

GAUGE

- engine oil pressure

1шт.

13

A21503

TUBE NUT

- tube to oil pressure gauge

1шт.

14

A21497

GAUGE

- engine temperature (See insert)

1шт.

15

A21495

AMMETER

1шт.

16

A21501

ELECTRICAL WIRE

SOCKET - instrument lamp (incl. ref. 17)

3шт.

17

A14553

BULB

- lamp (#57)

1шт.

18

G46038

CLAMP - cluster mounting

3шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex (Keps)

3шт.

20

A20131

TUBE - engine oil pressure

1шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- tube to block, 1/8 x 1/8" P.T.

1шт.

23

A23541

CABLE

ASSY. - speedometer drive (56-1/2" lg.), Serial Range: -8201146

1шт.

23

A24252

HOUSING

CABLE ASSY. - speedometer (40" lg.), Start Serial: 8201146

1шт.

24

A23563

CABLE

ASSY. - tachometer drive (56" lg. used w/diesel), Serial Range: -8201146

1шт.

24

A23579

CABLE

ASSY. - tachometer drive (52" lg. used w/gas or L.P.), Serial Range: -8201146

1шт.

24

A24251

CABLE ASSY.

- tachometer drive (56-1/2" lg. w/gas or L.P.), Start Serial: 8201146

1шт.

34

A24268

CABLE PULLING GRIP

CABLE ASSY. - tachometer drive (60-1/2" lg. w/diesel), Start Serial: 8201146

1шт.

25

A24523

KIT

REPAIR KIT (Use to replace inner core of speedometer or tachometer drive assemblies. Includes new core, tip and repair die)

1шт.

26

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to ammeter & sender (13" lg.)

2шт.

27

A11783

ELECTRICAL WIRE

WIRE - temp. gauge to switch (13" lg.)

1шт.

28

A21626

WIRE - ammeter to switch (8-1/2" lg.)

1шт.
