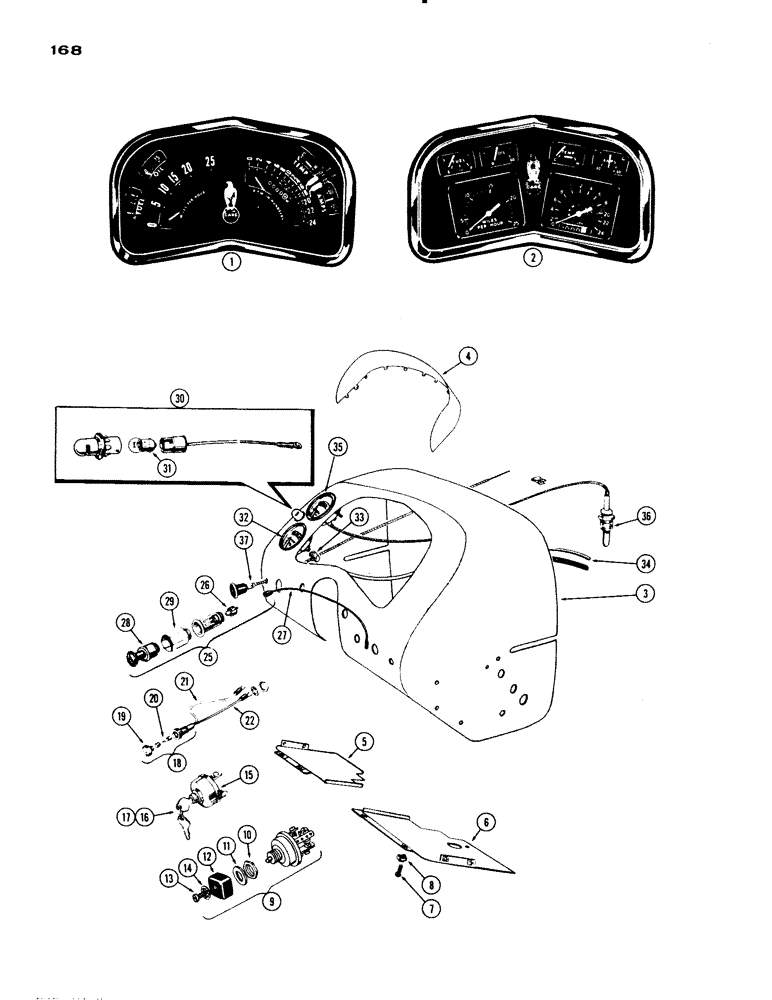

Запчасти Case IH 830-SERIES (168) - INSTRUMENT PANEL AND INSTRUMENTS, 730 AND 830 L.P.G. TRACTOR, USED PRIOR TO TRAC. S/N 8201146 (04) - ELECTRICAL SYSTEMS

1

A23430

PANEL

CLUSTER ASSY. - instrument (Stewart-Warner) Dial hands pivot at bottom (Repairs Figure 174)

1шт.

2

A21355

PANEL

CLUSTER ASSY. - instrument (Auto-Lite) Dial hands pivot at top. Order A23430 (Repairs Figure 172)

1шт.

3

A21414

PANEL - instrument mounting

1шт.

4

A21534

SHADE - instrument panel

1шт.

5

A21427

COVER - L.H., instrument panel

1шт.

6

A21426

COVER - R.H., instrument panel

1шт.

7

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" self tapping truss hd.

8шт.

8

131-130

NUT

- #8 Tinnerman speed type

8шт.

9

A20620

SWITCH

ASSY. - light (incl. ref. 10 - 14)

1шт.

10

A20467

NUT

- lock, switch assy.

1шт.

11

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, 5/8" int. Shakeproof

1шт.

12

A20465

KNOB

- light switch

1шт.

13

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob

1шт.

14

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER, lock, #8

1шт.

15

A24511

SWITCH

ASSY - starting w/key (Gas) (Incl Ref 16)

1шт.

16

A24509

KEY

- ignition start, Set of 2 (marked "CASE")

1шт.

17

A20621

KEY

- starting (marked "INDAK". On early production)

1шт.

18

A22874

HOLDER

ASSY. - light fuse (incl. ref. 19)

1шт.

19

A10958

CAP

- fuse holder

1шт.

20

223-20

FUSE,20 Amp, Type SFE

- light, 20 amp.

1шт.

21

A22876

ELECTRICAL WIRE

WIRE - fuse to ammeter (8-1/2")

1шт.

22

A22875

ELECTRICAL WIRE

WIRE - light switch to fuse (4")

1шт.

25

G13344

SOCKET ASSY. - lighter socket (incl. ref. 26 & 27)

1шт.

26

G44803

FUSE - lighter socket

1шт.

27

G44022

ELECTRICAL WIRE

WIRE - lighter socket

1шт.

28

G13345

UNIT

- lighter, pop out

1шт.

29

G46107

PIN

SHELL - clamping, lighter socket

1шт.

30

A24087

LAMP BASE

LAMP ASSY. - dash (incl. ref. 31)

1шт.

31

A22349

BULB

- lamp (#1445)

1шт.

32

A33982

ELECTRICAL GAUGE

GAUGE - converter oil pressure

1шт.

33

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - pressure tube

1шт.

34

A8111

TUBE - converter pressure

1шт.

35

A21381

GAUGE ASSY.

GAUGE - converter oil temperature

1шт.

36

A23599

TUBE NUT

ADAPTER - heat bulb

1шт.

37

A20006

CONTROL

- choke

1шт.
