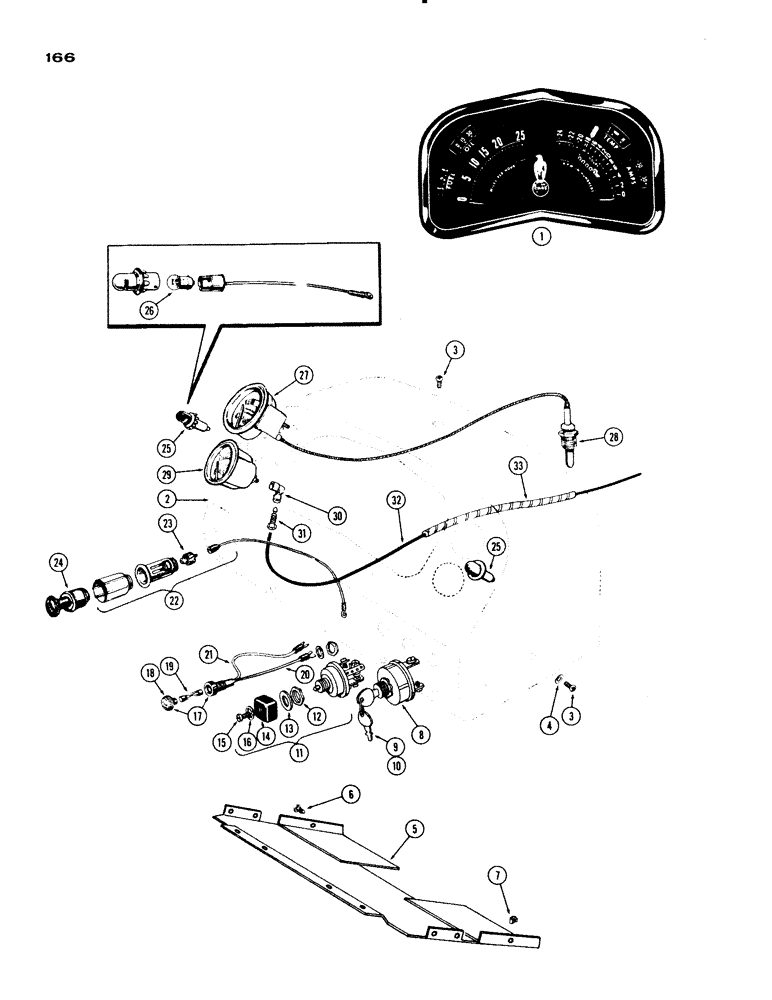

Запчасти Case IH 830-SERIES (166) - INSTRUMENT PANEL AND INSTRUMENTS, 730 AND830 GASOLINE TRACTOR, 1ST USED TRAC. S/N 8201146 (04) - ELECTRICAL SYSTEMS

1

A23429

PANEL

CLUSTER ASSY. - instrument (Repairs Figure 172)

1шт.

2

A24259

PANEL - instrument mounting

1шт.

3

175-431

SCREW - 1/4 x 3/8" truss hd. Phillips

3шт.

4

195-118

WASHER - 1/4" plain

2шт.

5

A24269

COVER - instrument panel

1шт.

6

187-1026

SCREW,Cross Pan Hd, #10 x 3/8"

- #8 x 1/2" truss hd. Phillips

6шт.

7

131-130

NUT

- #8 Tinnerman speed type "J"

6шт.

8

A24511

SWITCH

ASSY - starting w/key (Gas) (Incl. Ref 9)

1шт.

9

A24509

KEY

S - ignition start (Set of 2) Marked "CASE"

1шт.

10

A20621

KEY

S - starting (early production Marked "INDAK")

1шт.

11

A20620

SWITCH

ASSY. - light (incl. ref. 12)

1шт.

12

A20467

NUT

- lock, switch assy.

1шт.

13

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, 5/8" int. Shakeproof (incl. ref. 14 - 16)

1шт.

14

A20465

KNOB

- light switch

1шт.

15

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob

1шт.

16

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER, lock, #8

1шт.

17

A22874

HOLDER

ASSY. - fuse (incl. ref. 18)

1шт.

18

A10958

CAP

- fuse holder

1шт.

19

223-20

FUSE,20 Amp, Type SFE

- light, 20 amp.

1шт.

20

A22875

ELECTRICAL WIRE

WIRE - light switch to fuse (4")

1шт.

21

A22876

ELECTRICAL WIRE

WIRE - fuse to ammeter (8-1/2")

1шт.

22

A24082

SOCKET ASSY. - lighter (incl. ref. 23)

1шт.

23

G44803

FUSE - lighter

1шт.

24

A24134

CIGARETTE LIGHTER

UNIT - lighter pop out

1шт.

25

A24087

LAMP BASE

LAMP ASSY. - dash (incl. ref. 26)

1шт.

26

A22349

BULB

- lamp (#1445)

1шт.

27

A21381

GAUGE ASSY.

GAUGE - converter oil temperature (incl. ref. 28)

1шт.

28

A23599

TUBE NUT

ADAPTER - thermal bulb

1шт.

29

A33982

ELECTRICAL GAUGE

GAUGE - converter oil pressure

1шт.

30

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- pressure tube, 1/8 x 1/8" P.T.

2шт.

31

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - pressure tube. 1/8 x 1/8" P.T.

1шт.

32

A9366

TUBE

- converter oil pressure

1шт.

33

A27201

LOOM - A23263 tube

1шт.
