Артикул
Название
Примечание
Количество
1

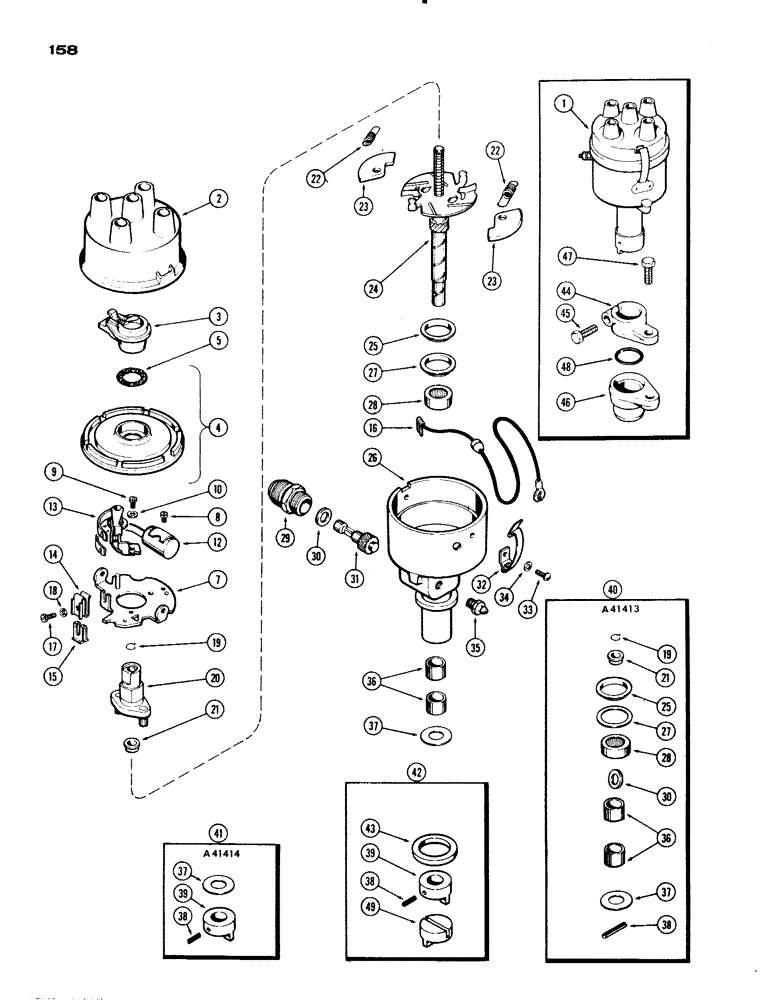

A57081
DISTRIBUTOR
(Auto-Lite or Prestolite 4404) (incl. ref. 2 - 41)
1шт.
2
A24564
CAP
- distributor
1шт.
4
A24763
PLATE
ASSY. - seal (incl. ref. 5)
1шт.
5
NSS
NOT SOLD SEPARAT
SEAL - dust, felt
1шт.
A40330
PLATE
ASSY. - breaker (incl. ref. 7 - 18)
1шт.
7
NSS
NOT SOLD SEPARAT
PLATE - breaker (Order A40330)
1шт.
9
A24776
SCREW,Locking, #8 - 32 x 3/16"
- points, #8-32 x 3/16" fill. hd.
1шт.
10
195-509
WASHER,3/16"
- flat, #8
1шт.
A40930
KIT
POINT & CONDENSER KIT (incl. ref. 12 & 13)
1шт.
12
NSS
NOT SOLD SEPARAT
CONDENSER (Order A40930)
1шт.
13
NSS
NOT SOLD SEPARAT
POINT SET (Order A40930)
1шт.
14
A24774
CLIP
- retaining, insulator & lead
1шт.
15
A24773
INSULATOR
- clamo & lead
1шт.
16
A24772
HARNESS
LEAD - primary wire
1шт.
17
A24775
SCREW,0.138"-32 x 1/32"
- clip, #6-32 x 5/8" hex
1шт.
18
195-506
WASHER,#6
- flat, #6
1шт.
19
NSS
NOT SOLD SEPARAT
RING - snap, cane retaining (Order ref. 40)
1шт.
20
A24762
PLATE - cam & stop
1шт.
21
NSS
NOT SOLD SEPARAT
SPACER - cam (Order ref. 40)
1шт.
22
A24778
SPRING KIT
SPRING SET - weight
1шт.
23
A41388
WEIGHT - governor
2шт.
24
A41415
SHAFT - distributor drive
1шт.
25
NSS
NOT SOLD SEPARAT
WASHER - upper, drive shaft (Order ref. 40)
1шт.
26
NSS
NOT SOLD SEPARAT
BASE - distributor (Order ref. 1)
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - lower, drive shaft (Order ref. 40)
1шт.
28
NSS
NOT SOLD SEPARAT
BEARING - needle (Order ref. 40)
1шт.
29
A24781
HOUSING ASSY. - tachometer drive
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - thrust, tach. drive (Order ref. 40)
1шт.
31
A24761
SHAFT
- tach. drive (w/gear)
1шт.
32
A40329
SPRING
CLAMP KIT - dist. cap (Set of 2) (incl. ref. 33 & 34)
1шт.
33
A24779
SCREW - clamp, #8-32 x 15/16" rd. hd.
2шт.
34
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
WASHER, lock, #8
2шт.
35
219-6
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - grease, 1/4"-28 str.
1шт.
36
NSS
NOT SOLD SEPARAT
BEARING - housing (Order ref. 40)
2шт.
37
NSS
NOT SOLD SEPARAT
WASHER - thrust, lower (Order ref. 40 or 41)
1шт.
38
138-58
LOCK PIN,1/8" x 13/16", Slotted
PIN, 1/8" x 13/16", Slotted
1шт.
39
NSS
NOT SOLD SEPARAT
COUPLING - dist. drive(incl. ref. 40 & 41)
1шт.
40
A41413
BEARING
REPAIR KIT - drive shaft
1шт.
41
A41414
COUPLING
KIT - dist. drive
1шт.
42
A57086
KIT
COUPLING KIT - pump gear (includes ref. 38, 39, 43 & 49)
1шт.
43
NSS
NOT SOLD SEPARAT
SPACER - dist. to block (Order A57086)
1шт.
44
A7622
CLAMP - distributor (incl. ref. 45)
1шт.
45
75-520
SCREW - clamp, 5/16 x 1-1/4" N.C. rd. hd.
1шт.
46
A7621
INSERT - dist. support
1шт.
47
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Insert & clamp Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
48
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
"O" RING - distributor (1 x 1-1/4 x 1/8")
1шт.
49
NSS
NOT SOLD SEPARAT
COUPLING (Order A57086)
1шт.
Выбрано товаров: 49
