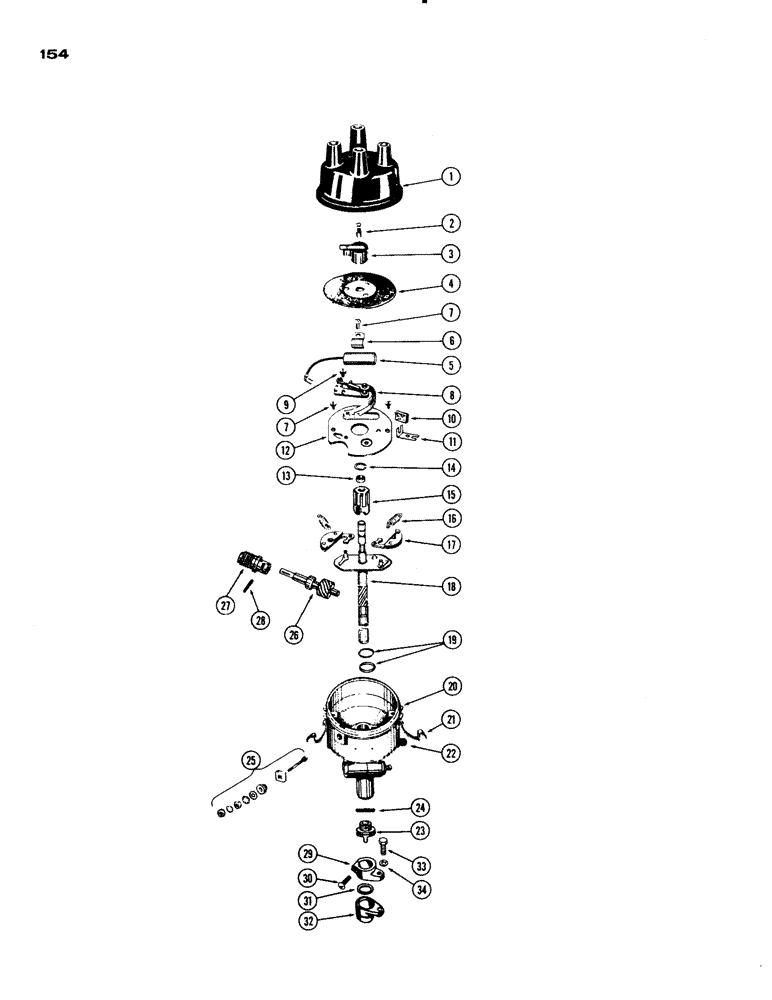

Запчасти Case IH 830-SERIES (154) - A20910 DISTRIBUTOR, 251 AND 284 SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

A20910

X

DISTRIBUTOR (Wico #X30234D) Order A57081 and A57086 from Figure 158 (incl. ref. 1 - 28)

1шт.

1

A20785

CAP

- distributor (incl. ref. 2)

1шт.

2

A19802

BRUSH & SPRING

1шт.

3

A20784

ROTOR

1шт.

4

A20783

SEAL

- dust

1шт.

5

A21540

CONDENSER

CONDENSOR

1шт.

6

A25109

CLAMP - condenser

1шт.

7

A19805

SCREW - condenser & breaker clamp

3шт.

8

A20780

CONTACT

SET - breaker

1шт.

9

A19806

SCREW - contact set

1шт.

10

A22137

FELT - cam wiper

1шт.

11

A19808

BRACKET - cam wiper

1шт.

12

A19809

PLATE - breaker

1шт.

13

A25111

FELT - lube, breaker cam

1шт.

14

A19811

CIRCLIP,#43, .375" Dia, E-Type

RING, retaining, , breaker cam #43, .375" Dia, E-Type

1шт.

15

A19812

CAM - breaker

1шт.

16

A19813

SPRING - advance (Set of 2)

1шт.

17

A19814

WEIGHT

- advance and stop (Set of 2)

1шт.

18

A24929

SHAFT

- drive

1шт.

19

A19816

OIL SEAL

2шт.

20

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

21

A19818

CLIP

- spring

2шт.

22

A19819

OILER

1шт.

23

A24925

COUPLING - distributor drive

1шт.

24

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

25

A19822

TERMINAL KIT - battery

1шт.

26

A19823

SHAFT - tachometer drive

1шт.

27

A19824

ADAPTER - tachometer drive

1шт.

28

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

29

A7622

CLAMP - distributor

1шт.

30

75-520

SCREW - 5/16 x 1-1/4" N.C. rd. hd.

1шт.

31

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

32

A7621

INSERT - distributor support

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

34

92-5

LOCK WASHER,5/16"

1шт.
