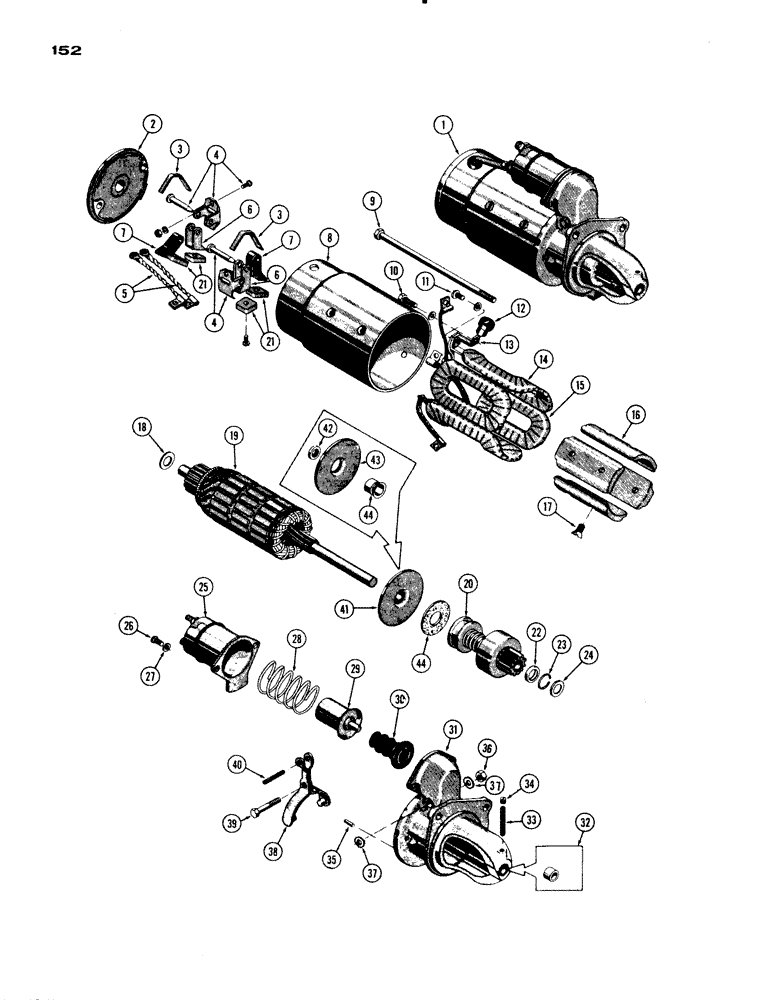

Запчасти Case IH 830-SERIES (152) - A20873 STARTER, 251 AND 284 SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A20873

STARTING MOTOR (Delco Remy #1107877) (incl. ref. 2 - 45)

1шт.

2

A25302

FUNNEL

FRAME ASSY. - commutator end

1шт.

3

A25359

SPRING

- brush

2шт.

4

A25379

KIT

HOLDER KIT - brush (incl. ref. 5)

2шт.

5

A25363

ELECTRICAL WIRE

LEAD - ground

2шт.

6

A40217

HOLDER

- ground

2шт.

7

A40521

HOLDER

- insulated

2шт.

8

NSS

NOT SOLD SEPARAT

BODY (Order A20873)

1шт.

9

A25375

X

BOLT - thru

2шт.

10

R16175

BOLT - connector

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: connector-coil

1шт.

12

NSS

NOT SOLD SEPARAT

GROMMET - field frame

1шт.

13

A25369

CONNECTOR - solenoid

1шт.

14

A25317

COIL

ASSY. - field

1шт.

15

A25404

SHUNT - coil

2шт.

16

A25390

SHOE - pole

4шт.

17

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

18

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- spacer

1шт.

19

A25314

ARMATURE ASSY.

1шт.

20

B53941

X

DRIVE ASSY. - starter

1шт.

21

A20893

BRUSH

- starter

4шт.

22

R15049

COLLAR

- pinion stop

1шт.

23

R15048

RING

- retainer, pinion stop

1шт.

24

A25385

WASHER

COLLAR - thrust, pinion stop

1шт.

25

G44891

SOLENOID

- starter

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT - solenoid

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Solenoid bolt 5/16"

2шт.

28

A40221

SPRING

- plunger

1шт.

29

A40218

PLUNGER

- solenoid switch

1шт.

30

A25410

BOOT

- solenoid

1шт.

31

A25349

HOUSING ASSY. - drive (incl. ref. 32 - 35)

1шт.

32

A25389

BUSHING

- drive housing

1шт.

33

R15129

WICK

- oil

1шт.

34

221-1041

PLUG

- pipe

1шт.

35

R15041

PIN - dowel

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

Shift stud 5/16"-18, G5

1шт.

37

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, , Shift stud Ext-Int Tooth, 5/16"

2шт.

38

A40220

LEVER

- shifter

1шт.

39

A25401

STUD - shifter lever

1шт.

40

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN, , shift lever 3/16" x 13/16", Slotted

1шт.

41

A25549

PLATE

ASSY. - center brg. (incl. ref. 42 - 44)

1шт.

42

A25409

SEAL

SEAL - oil, bearing plate

1шт.

43

NSS

NOT SOLD SEPARAT

PLATE - center bearing

1шт.

44

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

45

R15043

WASHER

- thrust

1шт.
