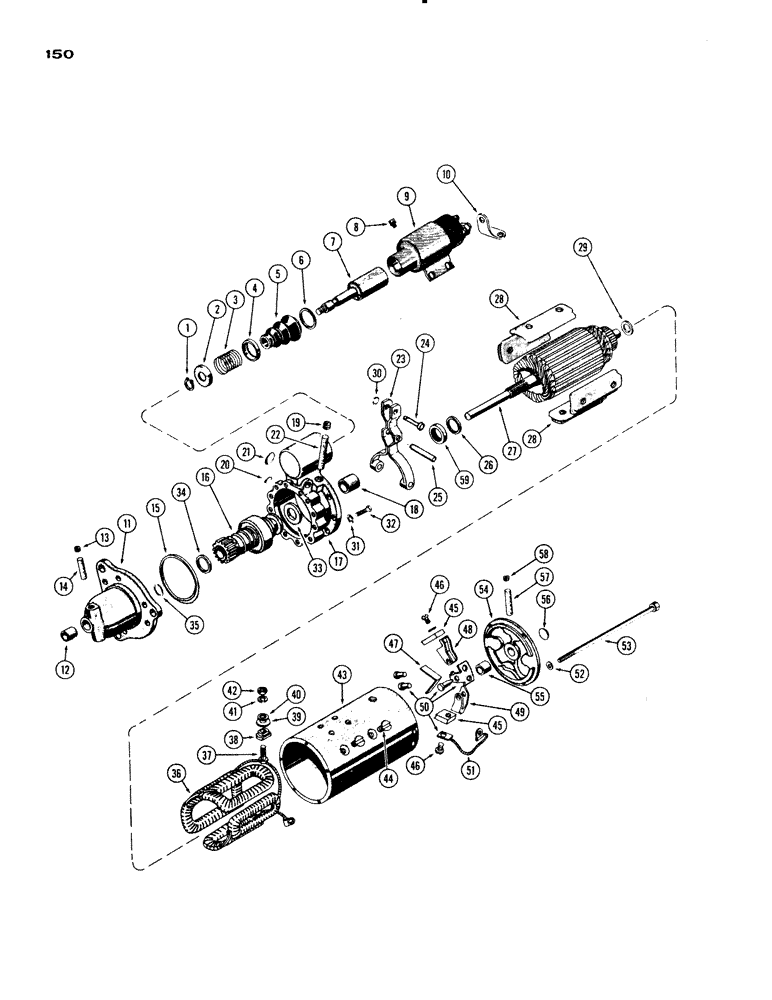

Запчасти Case IH 830-SERIES (150) - A21281 STARTER, 267 AND 301 DIESEL ENGINES (04) - ELECTRICAL SYSTEMS

A21281

STARTING MOTOR

STARTING MOTOR (Delco Remy #1113634) (incl. ref. 1 - 59)

1шт.

1

G46146

SNAP RING,#37, Ext

RING, snap, , starter spring #37, Ext

1шт.

2

R21571

RETAINER

RETAINER - plunger spring

1шт.

3

R21569

X

SPRING - return, plunger

1шт.

4

R21572

RETAINER

RETAINER - plunger spring

1шт.

5

R21576

BOOT

BOOT - dust, switch

1шт.

6

R21572

RETAINER

WASHER - spring retainer

1шт.

7

A25394

PLUNGER

PLUNGER - starter switch

1шт.

8

R15067

SPARE PART SCREW - solenoid

4шт.

9

A40461

IGNITION SWITCH

SWITCH - solenoid

1шт.

10

A25370

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

11

A25347

SPARE PART HOUSING - drive (incl. ref. 12 - 14)

1шт.

12

A40868

BUSHING

BUSHING - drive housing

1шт.

13

221-1041

PLUG

PLUG - pipe

1шт.

14

R15023

WICK

WICK - oil

1шт.

15

A41508

GASKET

GASKET - drive housing

1шт.

16

A25338

DRIVE

DRIVE ASSY. - starter

1шт.

16

87421542

REMAN-STARTER DRIVE

Drive Assy

1шт.

16

87421543

CORE-STARTER

Return Part Number

1шт.

17

A25405

HOUSING

HOUSING - starter lever (incl. ref. 18 - 22)

1шт.

18

A40944

BUSHING

BUSHING - lever housing

1шт.

19

221-1850

PLUG,Hex Soc, 1/16"-27

PLUG - pipe (1/16" hex, gasket head)

1шт.

20

41-102

PLUG,Exp, 1/2"

PLUG - expansion (1/2" dia.)

1шт.

21

41-43

PLUG - expansion (1-3/16" dia.)

1шт.

22

A41417

WICK

WICK - oil

1шт.

23

A25398

LEVER

LEVER - shift, starter

1шт.

24

A25400

PIN

PIN - shift lever

1шт.

25

A25402

STUD

STUD - shift lever

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - spacer, armature

1шт.

27

A40800

ARMATURE

ARMATURE ASSY. - starter

1шт.

28

R15115

SHOE

SHOE - pole

4шт.

29

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer

1шт.

30

A25406

OIL SEAL

RING - retainer, shift lever pin

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER - lock, att. bolt

4шт.

32

NSS

NOT SOLD SEPARAT

BOLT - lever housing

4шт.

33

R15043

WASHER

WASHER - brake, drive assy.

1шт.

34

R15049

COLLAR

COLLAR - pinion stop

1шт.

35

R15048

RING

RING - retainer, pinion stop

1шт.

36

R21557

COIL ASSY.

COIL ASSY. - field

1шт.

37

R15017

STUD

STUD - terminal

1шт.

38

R15010

BUSHING

BUSHING - terminal stud

1шт.

39

R15011

WASHER

WASHER - insulated, term. stud

1шт.

40

R15014

NUT

WASHER - plain, term. stud

1шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Term. stud 5/16"

1шт.

42

R15014

NUT

NUT - terminal stud

1шт.

43

NSS

NOT SOLD SEPARAT

BODY - (Order A21281)

1шт.

44

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe (3/8 x 5/8" N.F. flat hd.)

4шт.

45

A20897

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

46

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

47

R15025

SPRING

SPRING - brush

2шт.

48

R21590

HOLDER

HOLDER - insulated, brush

2шт.

49

A40217

HOLDER

HOLDER - ground, brush

2шт.

50

R15029

BRUSH

KIT - brush holder

1шт.

51

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

52

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

53

A25373

BOLT

BOLT - thru

2шт.

54

R15019

FUNNEL

FRAME FRAME ASSY. - commutator end (incl. ref. 55 - 58)

1шт.

55

R15020

BUSHING

BUSHING - commutator end

1шт.

56

R15021

PLUG

PLUG - expansion

1шт.

57

R15023

WICK

WICK - oil

1шт.

58

221-1041

PLUG

PLUG - pipe

1шт.

59

A25407

OIL SEAL

SEAL - oil

1шт.
