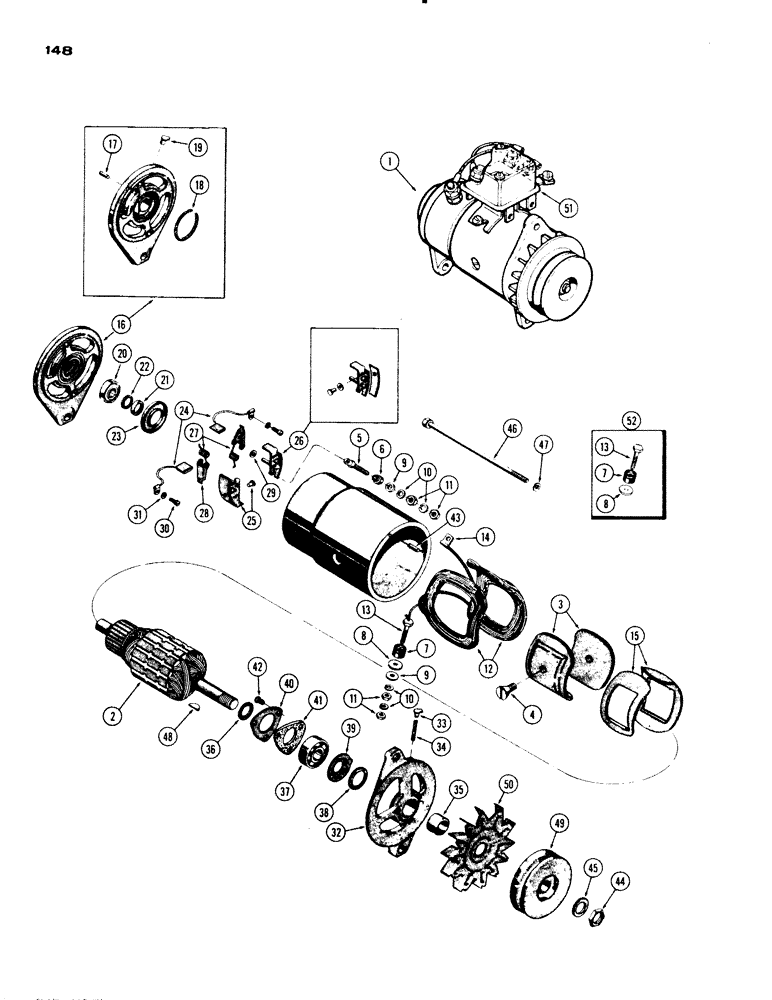

Запчасти Case IH 830-SERIES (148) - A33983 GENERATOR (04) - ELECTRICAL SYSTEMS

1

A33983

GENERATOR

GENERATOR (Delco Remy #1100444) (incl. ref. 2 - 51)

1шт.

1

104017A1R

REMAN-GENERATOR

Generator

1шт.

1

104017A1C

CORE-GENERATOR

Return Number

1шт.

2

A40377

ARMATURE

ARMATURE ASSY.

1шт.

3

R16145

SPARE PART SHOE - pole

2шт.

4

D32477

X

SCREW - shoe pole

2шт.

5

A40701

STUD

STUD - terminal "A"

1шт.

6

R16147

BUSHING

BUSHING - insulator, terminal "A"

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - insulator, term. "F" (Order ref. 52)

1шт.

8

R16148

WASHER

WASHER - insulator, term. stud (See ref. 52)

1шт.

9

R15079

WASHER

WASHER - terminal stud.

2шт.

10

192-17

LOCK WASHER,#12

WASHER, lock, , Terminal stud #12

4шт.

11

129-18

NUT,#12-24

NUT - terminal stud

4шт.

12

R16149

COIL ASSY.

COIL ASSY. - field (incl. ref. 13 - 15)

1шт.

13

NSS

NOT SOLD SEPARAT

STUD - terminal "F" (Order ref. 52)

1шт.

14

R16151

CLIP - terminal

1шт.

15

R16152

INSULATOR

INSULATOR - field coil

2шт.

16

A25413

HOUSING

HOUSING - comm. end (incl. ref. 17 - 19)

1шт.

17

R15095

SPARE PART PIN - dowel

1шт.

18

R16165

SPARE PART WICK - oil

1шт.

19

R16164

OILER

OILER

1шт.

20

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - commutator end

1шт.

21

A41928

SPARE PART CUP - felt retainer

1шт.

22

A41929

WHEEL

WASHER - felt

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main

2шт.

25

A40703

NOZZLE HOLDER

HOLDER - ground brush

1шт.

26

A40704

NOZZLE HOLDER

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

ARM - brush

2шт.

29

R16162

SPARE PART WASHER - spacer, brush arm

2шт.

30

182-513

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

SCREW - brush lead

2шт.

31

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, lock, #6

2шт.

32

A25442

HOUSING

HOUSING - drive end (incl. ref. 33 & 34)

1шт.

33

R16164

OILER

OILER - housing

1шт.

34

R16165

SPARE PART WICK - oiler

1шт.

35

R16166

BUSHING

COLLAR - inner spacer

1шт.

36

R15100

SPARE PART WASHER - inner spacer

1шт.

37

G10623

BALL BEARING

BEARING - drive end

1шт.

38

R16168

WASHER

WASHER - felt, drive housing

1шт.

39

R16169

LARGE PLATE

PLATE, LARGE PLATE - retainer, felt washer

1шт.

40

R15101

PLATE

PLATE - bearing retainer

1шт.

41

R16170

GASKET

GASKET - retainer plate

1шт.

42

A41959

SCREW,#10 - 32 x 3/8"

SCREW - retainer plate

3шт.

43

R15041

SPARE PART PIN - dowel, housing

1шт.

44

A25546

NUT

NUT - drive pulley

1шт.

45

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

45

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

46

A40129

BOLT

BOLT - thru

2шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

48

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Drive pulley #5, 1/8" x 5/8", HT

1шт.

49

A22366

PULLEY

PULLEY - generator drive

1шт.

DOUBLE GROOVE PULLEY.

1шт.

50

A25449

FAN

FAN - generator

1шт.

51

A20792

REGULATOR

REGULATOR - voltage

1шт.

52

A40702

STUD

STUD KIT - field coil terminal

1шт.
