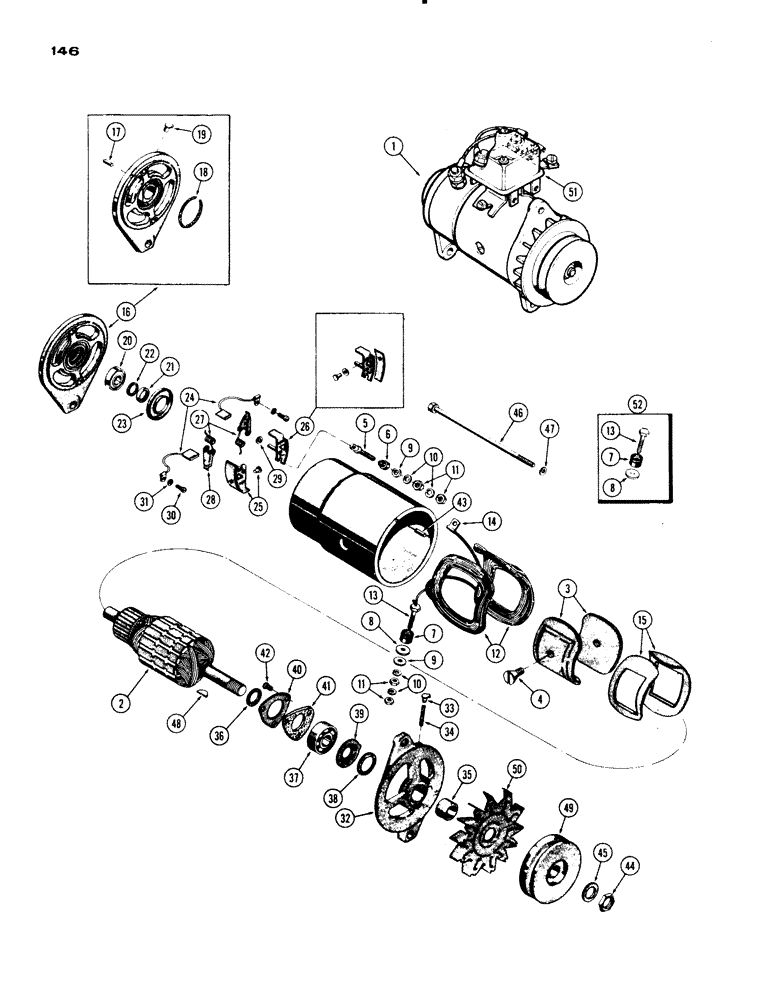

Запчасти Case IH 830-SERIES (146) - A22684 GENERATOR (04) - ELECTRICAL SYSTEMS

1

A22684

GENERATOR (Delco Remy #1100407) Order A33983 (incl. ref. 2 - 51)

1шт.

2

A40377

ARMATURE

ASSY.

1шт.

3

R16145

SHOE - pole

2шт.

4

D32477

X

SCREW - shoe pole

2шт.

5

A40701

STUD

- terminal "A"

1шт.

6

R16147

BUSHING

- insulator, terminal "A"

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - insulator, terminal "F" (Order ref. 52)

1шт.

8

R16148

WASHER

- insulator, terminal stud (See ref. 52)

1шт.

9

R15079

WASHER

- plain, terminal stud

2шт.

10

192-17

LOCK WASHER,#12

WASHER, lock, , terminal stud #12

4шт.

11

129-18

NUT,#12-24

- terminal stud

4шт.

12

R16149

COIL ASSY.

- field (incl. ref. 13 - 15)

1шт.

13

NSS

NOT SOLD SEPARAT

STUD - terminal "F" (Order ref. 52)

1шт.

14

R16151

CLIP - terminal

1шт.

15

R16152

INSULATOR

- field coil

2шт.

16

A25413

HOUSING

- commutator end (incl. ref. 17 - 19)

1шт.

17

R15095

PIN - dowel

1шт.

18

R16165

WICK - oil

1шт.

19

R16164

OILER

1шт.

20

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARNG - commutator end

1шт.

21

A41928

CUP - felt retainer

1шт.

22

A41929

WHEEL

WASHER - felt

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH - main

2шт.

25

A40703

NOZZLE HOLDER

HOLDER - ground brush

1шт.

26

A40704

NOZZLE HOLDER

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

- brush

2шт.

29

R16162

WASHER - spacer, brush arm

2шт.

30

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- brush lead (#6-32 x 1/4" rd. hd.)

2шт.

31

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, lock, #6

2шт.

32

A25442

HOUSING

- drive end (incl. ref. 33 - 34)

1шт.

33

R16164

OILER

- housing

1шт.

34

R16165

WICK - oil

1шт.

35

R16166

BUSHING

COLLAR - inner spacer

1шт.

36

R15100

WASHER - inner spacer

1шт.

37

G10623

BALL BEARING

BEARING - drive end

1шт.

38

R16168

WASHER

- felt, drive housing

1шт.

39

R16169

LARGE PLATE

PLATE - retainer, felt washer

1шт.

40

R15101

PLATE

- bearing retainer

1шт.

41

R16170

GASKET

- retainer plate

1шт.

42

A41949

SCREW - retainer plate

3шт.

43

R15041

PIN - dowel, housing

1шт.

44

A25546

NUT

- drive pulley

1шт.

45

R16171

SPRING WASHER

- lock, pulley nut

1шт.

46

A40129

BOLT

BOLT - thru

2шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

48

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Drive pulley #5, 1/8" x 5/8", HT

1шт.

49

A22366

PULLEY

- generator drive

1шт.

DOUBLE GROOVE PULLEY.

1шт.

50

A25449

FAN

- generator

1шт.

51

A20792

REGULATOR

- voltage

1шт.

52

A50702

ADJUSTER

STUD KIT - field coil terminal

1шт.
