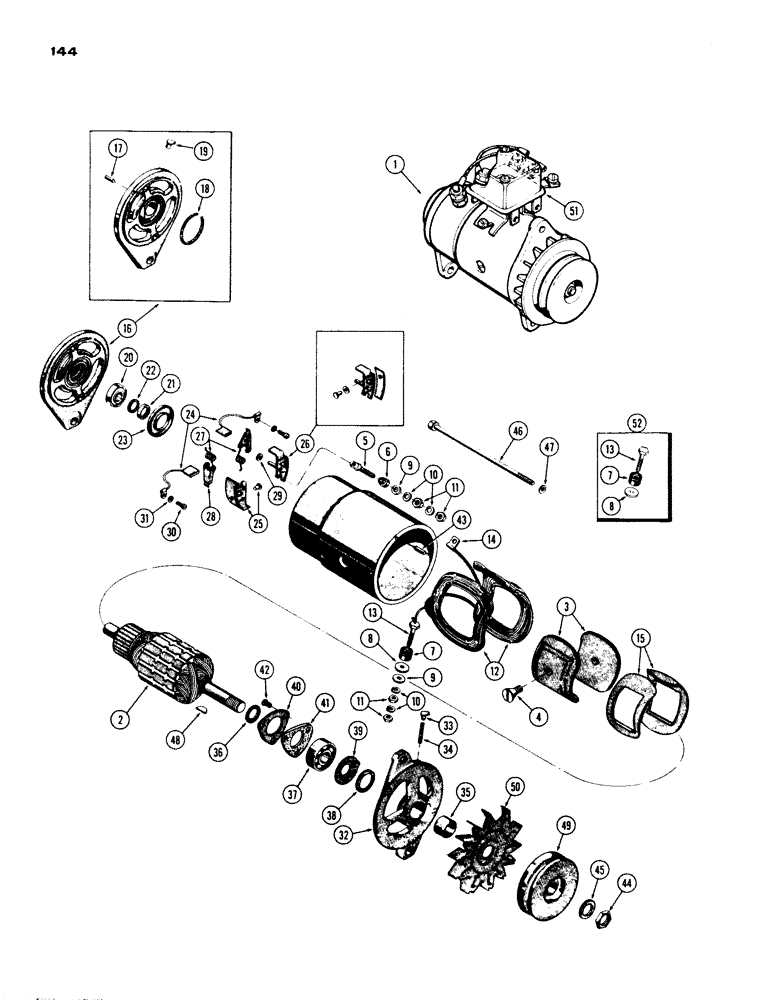

Запчасти Case IH 830-SERIES (144) - A21533 GENERATOR (04) - ELECTRICAL SYSTEMS

1

A21533

X

GENERATOR (Delco-Remy #1100382) Order A33983 & A22685) (incl. ref. 2 - 51)

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, Generator 12 volt 20 ampere

1шт.

2

A40774

ARM ASSY.

ARMATURE ASSY.

1шт.

3

A40700

SPARE PART SHOE - pole

2шт.

4

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - shoe pole (3/8 x 5/8" N.F. flat hd.)

2шт.

5

A40701

STUD

STUD - terminal "A"

1шт.

6

R16147

BUSHING

BUSHING - insulator, terminal "A"

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - insulator, terminal "F" (Order ref. 52)

1шт.

8

R16148

WASHER

WASHER - insulation, terminal (See ref. 52)

1шт.

9

R15079

WASHER

WASHER - plain, terminal stud

2шт.

10

192-17

LOCK WASHER,#12

WASHER, lock, , terminal stud #12

4шт.

11

129-18

NUT,#12-24

NUT - terminal stud

4шт.

12

R16149

COIL ASSY.

COIL ASSY. - field (incl. ref. 13 - 15)

1шт.

13

NSS

NOT SOLD SEPARAT

STUD - terminal "F" (Order ref. 52)

1шт.

14

R16151

CLIP - terminal

1шт.

15

R16152

INSULATOR

INSULATOR - field coil

2шт.

16

A40679

HOUSING

HOUSING - comm. end (incl. ref. 17 - 19)

1шт.

17

R15095

SPARE PART PIN - dowel

1шт.

18

A41417

WICK

WICK - oil

1шт.

19

R16155

SPARE PART OILER

1шт.

20

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - commutator end

1шт.

21

R16156

CUP

CUP - felt retainer

1шт.

22

R16157

WASHER

WASHER - felt

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main

2шт.

25

A40703

NOZZLE HOLDER

HOLDER - groung brush

1шт.

26

A40704

NOZZLE HOLDER

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

ARM - brush

2шт.

29

R15091

SPARE PART WASHER - spacer, brush arm

2шт.

30

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead (#6-32 x 1/4" rd. hd.)

2шт.

31

19215

WASHER - lock, brush lead screw (#6 std.)

2шт.

32

A25442

HOUSING

HOUSING - drive end (incl. ref. 33 & 34)

1шт.

33

R16164

OILER

OILER - housing

1шт.

34

R16165

SPARE PART WICK - oil

1шт.

35

R16166

BUSHING

COLLAR - spacer, inner

1шт.

36

R15100

SPARE PART WASHER - spacer, inner

1шт.

37

G10623

BALL BEARING

BEARING - drive end

1шт.

38

R16168

WASHER

WASHER - felt, drive housing

1шт.

39

R16169

LARGE PLATE

PLATE, LARGE PLATE - retainer, felt washer

1шт.

40

R15101

PLATE

PLATE - bearing retainer

1шт.

41

R16170

GASKET

GASKET - retainer plate

1шт.

42

A41959

SCREW,#10 - 32 x 3/8"

SCREW - retainer plate

3шт.

43

R15041

SPARE PART PIN - dowel, drive housing

1шт.

44

A25546

NUT

NUT - drive pulley

1шт.

45

R16171

SPRING WASHER

WASHER - lock pulley nut

1шт.

46

A40129

BOLT

BOLT - thru

2шт.

47

R15070

SPARE PART WASHER - lock, thru bolt

2шт.

48

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Drive pulley #5, 1/8" x 5/8", HT

1шт.

49

A22366

PULLEY

PULLEY - generator drive

1шт.

DOUBLE GROOVE PULLEY.

1шт.

50

A25449

FAN

FAN - generator

1шт.

51

A20792

REGULATOR

REGULATOR - voltage

1шт.

52

A40702

STUD

STUD KIT - field coil terminal

1шт.
