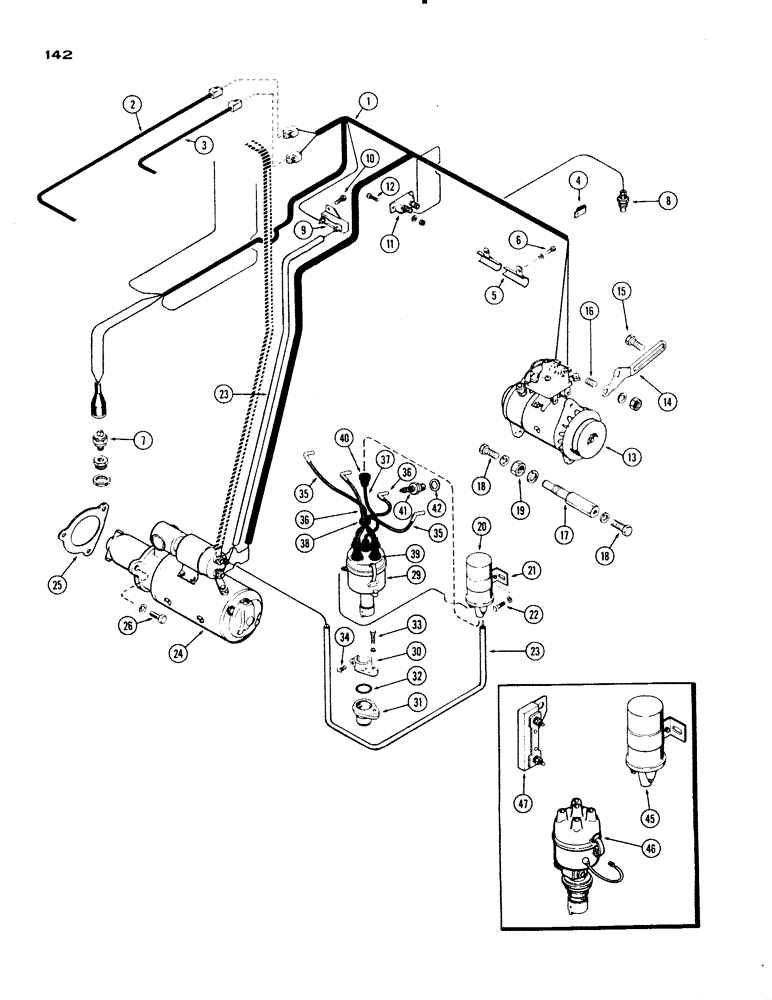

Запчасти Case IH 830-SERIES (142) - ELECTRICAL EQUIPMENT AND WIRING, 251 AND 284 SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A24619

HARNESS

ASSY. - main wire

1шт.

2

A21613

HARNESS

ASSY. - inst. panel (w/black plug)

1шт.

3

A21615

HARNESS ASSY. - inst. panel (w/red plug)

1шт.

4

A22880

CLIP

- wire

1шт.

5

A7532

CONDUIT - wire

1шт.

6

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Conduit Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

7

A20990

SWITCH

- safety, neutral start

1шт.

8

A21462

SENDER UNIT

UNIT - sending, eng. temperature

1шт.

9

A24504

RESISTOR

- circuit (Auto-Lite)

1шт.

Wico components were used on early production and cannot be used mixed with Auto-Lite.

1шт.

10

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Resistor Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

11

A22877

BREAKER,40A

- circuit (40 amp)

1шт.

12

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8-24 x 1/2" rd. hd.

2шт.

13

A21533

X

GENERATOR (Delco-Remy #1100382) Order A33983 and A22685 carrier (Repairs Figure 144)

1шт.

13

A22684

GENERATOR (Delco-Remy #1100407) (Order A33983 (Repairs Figure 146)

1шт.

13

A33983

GENERATOR

(Delco-Remy #1109444) Repairs Figure 148. Can replace A21533 or A22684

1шт.

14

A21538

STRAP

- generator adjusting

1шт.

15

193-524

BOLT - strap, 5/16 x 3/4" N.C. hex (Keps) SEMS, Hex Soc Hd, #10-32 x 3/8"

1шт.

16

A7391

STUD

- strap (3/8 x 1-1/8")

1шт.

17

A22685

X

CARRIER - generator, A22684 & A33983

1шт.

17

A21537

CARRIER

- generator, A21533

1шт.

18

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8 x 1" N.F. hex (for A22685)

2шт.

18

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16 x 1" N.F. hex (for A21537)

2шт.

19

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

1шт.

20

G44817

COIL

- ignition (Auto-Lite - Can use A40778

1шт.

Wico components were used on early production and cannot be used mixed with Auto-Lite.

1шт.

20

A40778

COIL

- ignition (Prestolite #200690)

1шт.

Wico components were used on early production and cannot be used mixed with Auto-Lite.

1шт.

21

G46106

BRACKET

CLAMP ASSY. coil (includes screw)

1шт.

22

75-510

HANDBOOK

SCREW - coil assy., 5/16 x 1-1/4" N.C. rd. hd.

2шт.

23

A22879

WIRE - resistor & coil to starter (18" lg.)

2шт.

24

A20873

STARTER ASSY. (Repairs Figure 152)

1шт.

25

A27933

GASKET

- starter

1шт.

26

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - lock, 1/2 x 1-1/4" N.C. hex (w/C-O-M)

2шт.

26

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5 (w/std. clutch)

2шт.

29

A24506

DISTRIBUTOR

(Auto-Lite) Order from Figure 156

1шт.

Wico components were used on early production and cannot be used mixed with Auto-Lite.

1шт.

30

A7622

CLAMP - distributor

1шт.

31

A7621

INSERT - distributor support

1шт.

32

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor (1/4 x 1-1/4 x 1/8")

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Clamp Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

34

75-420

SCREW

- clamp, 5/16 x 1-1/4" N.C. rd. hd.

1шт.

35

A20143

ELECTRICAL WIRE

WIRE - #1 and #4 spark plug (15" lg.)

2шт.

36

A20144

ELECTRICAL WIRE

WIRE - #2 and #3 spark plug (11" lg.)

2шт.

37

A29180

CABLE

WIRE - dist. cap to coil (12" lg.)

1шт.

38

A23258

RING - harness, distributor wires

1шт.

39

A29338

COVER

NIPPLE - dist. cap wires

5шт.

40

G46803

BOOT

NIPPLE -, Serial Range: wire-coil

1шт.

41

G44840

SPARK PLUG

PLUG - spark (gasoline)

4шт.

41

A20905

SPARK PLUG

PLUG - spark (L.P.G.)

4шт.

42

G46839

GASKET

- spark plug

1шт.

45

A20949

X

COIL - ignition (Wico) Can use ref. 9 & ref. 20

1шт.

Wico components were used on early production and cannot be used mixed with Auto-Lite.

1шт.

46

A20910

X

DISTRIBUTOR (Wico) Repairs Figure 154 (Can use A57081 & A57086 Figure 158)

1шт.

Wico components were used on early production and cannot be used mixed with Auto-Lite.

1шт.

47

A20934

X

RESISTOR - circuit (Wico) Order A24504 ref. 9

1шт.

Wico components were used on early production and cannot be used mixed with Auto-Lite.

1шт.
