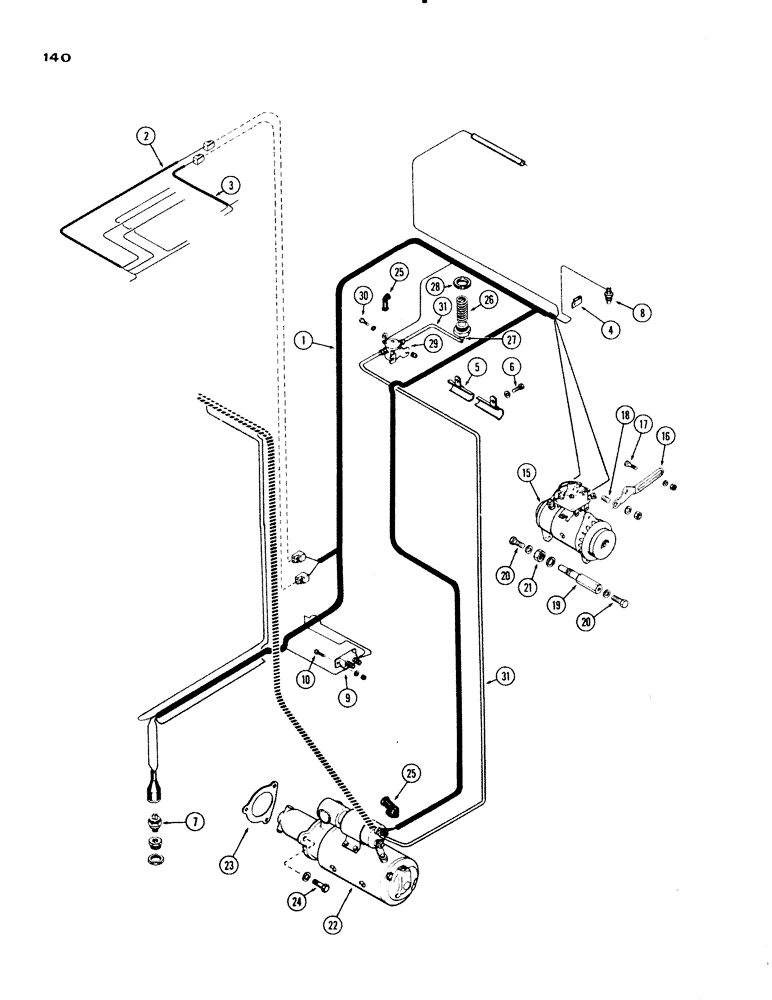

Запчасти Case IH 830-SERIES (140) - ELECTRICAL EQUIPMENT AND WIRING, 267 AND 301 DIESEL ENGINES (04) - ELECTRICAL SYSTEMS

1

A24619

HARNESS

ASSY. - main wire

1шт.

2

A21613

HARNESS

ASSY. - inst. panel (w/black plug)

1шт.

3

A21615

HARNESS ASSY. - inst. panel (w/red plug)

1шт.

4

A22880

CLIP

- wire

1шт.

5

A7532

CONDUIT - wire

1шт.

6

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Conduit Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

7

A20990

SWITCH

- safety, neutral start

1шт.

8

A21462

SENDER UNIT

UNIT - sending, eng. temperature

1шт.

9

A22877

BREAKER,40A

- circuit (40 amp

1шт.

10

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8-24 x 1/2" rd. hd.

2шт.

15

A21533

X

GENERATOR (Delco-Remy #1100382) Order A33983 and A22685 carrier (Repairs Figure 144)

1шт.

15

A22684

GENERATOR (Delco-Remy #110407) Order A33983 (Repairs Figure 146)

1шт.

15

A33983

GENERATOR

(Delco-Remy #1109444) Repairs Figure 148. Can replace A21533 or A22684

1шт.

16

A21538

STRAP

- generator adjusting

1шт.

17

193-521

BOLT - strap, 5/16 x 3/4" N.C. hex (Keps)

1шт.

18

A7391

STUD

- adj. strap (3/8 x 1-1/8")

1шт.

19

A22685

X

CARRIER - generator, A22684 & A33983

1шт.

19

A21537

CARRIER

- generator, A21533

1шт.

20

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8 x 1" N.F. hex (for A22685)

2шт.

20

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16 x 1" N.F. hex (for A21537)

2шт.

21

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

1шт.

22

A21281

STARTING MOTOR

STARTER ASSY. (Repairs Figure 150)

1шт.

23

A27933

GASKET

- starter

1шт.

24

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - lock, 1/2 x 1-1/4" N.C. hex (w/C-O-M)

2шт.

24

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- lock, 1/2 x 1-1/4" N.C. hex (w/std. clutch)

2шт.

25

A21753

CAP

NIPPLE - starter terminal

2шт.

26

A37775

HEATER

ASSY. - manifold (incl. ref. 27)

1шт.

27

129-503

NUT,1/4"-20, Brass

1шт.

28

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

29

A21481

SOLENOID

- heater

1шт.

30

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Solenoid Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

31

A21483

CABLE

- solenoid and heater (23-1/2" lg.)

2шт.
