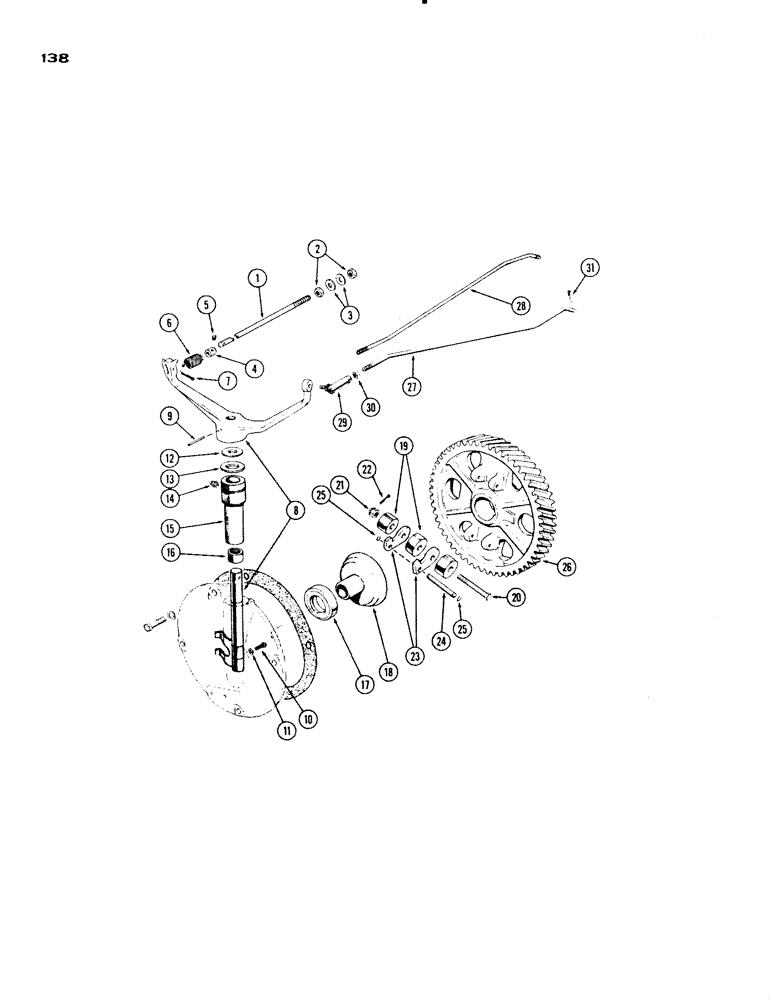

Запчасти Case IH 830-SERIES (138) - GOVERNOR, 251 AND 284 SPARK IGNITION ENGINES (03) - FUEL SYSTEM

1

A20841

ROD - front, throttle control

1шт.

2

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

3

195-24

WASHER,5/16"

2шт.

4

A20846

COLLAR

- stop, throttle rod

1шт.

5

84-40

SCREW - set, 1/4 x 1/4" N.C. socket hd.

1шт.

6

A20868

SPRING

- governor (blue w/std. clutch)

1шт.

6

A20966

SPRING

- governor (white w/Case-O-Matic)

1шт.

7

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

8

A20838

SHAFT

LEVER ASSY. - governor control (incl. ref. 9 - 11)

1шт.

9

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, 3/16" x 1 5/8", Slotted

1шт.

10

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- finger, #10-32 x 5/8" rd. hd.

2шт.

11

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

12

A7293

WASHER

- thrust (37/64 x 1/8 x 1/16" copper)

1шт.

13

A7292

SEAL

- oil, lever shaft

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

15

A20835

SLEEVE - bearing

1шт.

16

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle

2шт.

17

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, governor sleeve

1шт.

18

A7284

SLEEVE - governor

1шт.

19

A7277

WEIGHT

- governor

6шт.

20

A11693

BOLT - pivot, weight and finger

2шт.

21

25-235

SLOTTED NUT

NUT - slotted, 5/16" N.F. hex

2шт.

22

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

23

A33471

KIT

FINGER KIT (Set of 4)

1шт.

24

A7282

PIN,6.31mm OD x 47.63mm L

-, Serial Range: fingers-sleeve

2шт.

25

A7111

SNAP RING,#25, Ext

RING, snap, , sleeve pin #25, Ext

4шт.

26

A26328

GEAR

- camshaft

1шт.

27

A21230

ROD

- governor to carb. (L.P.G.)

1шт.

28

A24307

ROD

- governor to carb., Start Serial: 8201146

1шт.

28

A21775

ROD

- governor to carb., Serial Range: -8201146

1шт.

29

A10326

BALL JOINT

-, Serial Range: rod-lever

1шт.

30

129-27

NUT,Hex, #10 - 32

- hex #10-32

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
