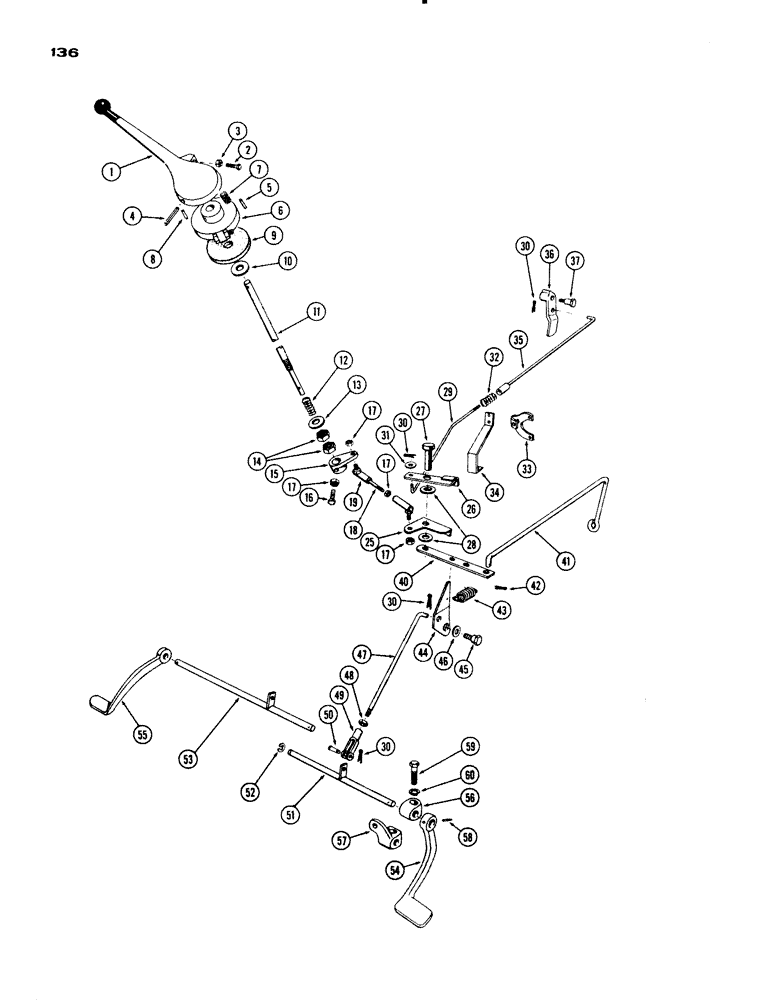

Запчасти Case IH 830-SERIES (136) - THROTTLE LINKAGE, 251 AND 284 SPARK IGNITION, EXCEPT GROVE, 1ST USED TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A23784

LEVER

- hand, throttle control

1шт.

2

A20341

SCREW - hand lever & disc. plate

2шт.

3

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.F. hex

2шт.

4

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

5

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Hand lever stop 1/4" x 3/4", Slotted

1шт.

6

A22536

PLATE - friction disc

1шт.

7

A8012

SPRING

- lock, hand throttle shut-off

1шт.

8

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, , Disc, plate stop 1/4" x 1", Slotted

1шт.

9

A11969

GASKET

DISC - friction

1шт.

10

F62050

WASHER - friction disc

1шт.

11

A22535

SHAFT - hand lever, throttle control

1шт.

12

A22618

SPRING

- hand lever shaft

1шт.

13

195-33

WASHER,1/2"

- plain (17/32 x 1-1/16 x 3/32")

1шт.

14

25-518

NUT - jam, 1/2" N.F. hex

2шт.

15

A8875

LEVER

- lower, hand lever shaft

1шт.

16

85-412

SET SCREW

SCREW - set, 1/4 x 3/4" N.C. sq. hd. cup pt.

1шт.

17

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

4шт.

18

A22537

ROD - lever to bell crank

1шт.

19

A10329

BALL JOINT,1/4" - 28 x 1"

- rod to lever & bell crank

2шт.

25

A22538

CRANK - bell, throttle control

1шт.

26

A22613

LEVER - shut-off, engine

1шт.

27

A23641

PIN - pivot, bell crank

1шт.

28

A26381

WASHER

- pivot pin

2шт.

29

A22614

ROD - rear, engine shut-off

1шт.

30

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

4шт.

31

195-12

WASHER,#10

- plain (7/32 x 7/16 x 3/64")

1шт.

32

A26685

SPRING - shut-off rod

1шт.

33

A22159

SUPPORT - shut-off rod (Std. 4 Wheel)

1шт.

34

A21769

SUPPORT - shut-off rod (General Purpose)

1шт.

35

A21772

ROD - front, engine shut-off

1шт.

36

A24306

CAM

- engine shut-off

1шт.

37

A21774

BOLT - shoulder, shut-off cam

1шт.

40

A22539

LEVER - intermediate, throttle control

1шт.

41

A22615

ROD - throttle control

1шт.

42

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

43

A10436

VALVE SPRING

SPRING - return, foot throttle

1шт.

44

A22520

LEVER - upper, foot throttle

1шт.

45

A8018

STEP BOLT

STUD - pivot, upper lever

1шт.

46

A27857

WASHER

- spring

1шт.

47

A22579

ROD - control, foot throttle

1шт.

48

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

49

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - control rod to cross shaft

1шт.

50

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

51

A22610

SHAFT - cross, foot throttle (Std. Clutch)

1шт.

52

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, retaining, , cross shaft (std. clutch) #50, .392" Dia, E-Type

1шт.

53

A22611

SHAFT - cross, foot throttle (Case-O-Matic)

1шт.

54

A22852

PEDAL - R.H., foot throttle

1шт.

55

A22853

PEDAL - L.H., foot throttle

1шт.

56

A8245

SUPPORT - shaft (only 1 w/std. clutch)

2шт.

57

A8151

SUPPORT - shaft (w/std. clutch)

1шт.

58

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

59

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

60

92-8

LOCK WASHER,1/2"

2шт.
