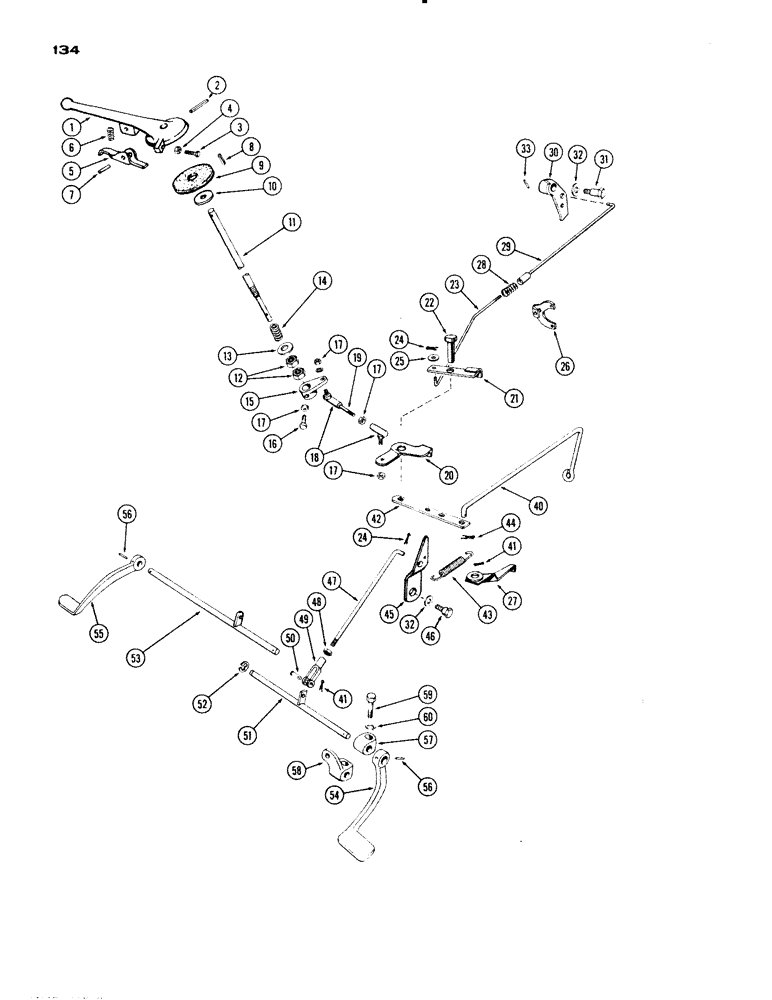

Запчасти Case IH 830-SERIES (134) - THROTTLE LINKAGE, 251 AND 284 SPARK IGNITION, EXCEPT GROVE, USED PRIOR TO TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A8880

LEVER - hand, throttle control

1шт.

2

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

3

A20341

SCREW - idle adjusting

1шт.

4

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

1шт.

5

A8011

LOCK - shut-off, throttle

1шт.

7

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (Shut-off lock) 3/16" x 3/4", Slotted

1шт.

8

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Idle stop 1/4" x 3/4", Slotted

1шт.

9

A11969

GASKET

DISC - friction, hand lever

1шт.

10

F62050

WASHER - friction disc (17/32 x 1-1/4" x #12 ga)

1шт.

11

A8878

SHAFT - throttle control, hand lever

1шт.

12

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

2шт.

13

195-33

WASHER,1/2"

- plain (17/32 x 1-1/16 x 3/32")

1шт.

14

A8876

SPRING

- hand lever shaft

1шт.

15

A8875

LEVER

- lower end hand lever shaft

1шт.

16

85-412

SET SCREW

SCREW - set, 1/4 x 3/4" N.C. sq. hd. cup pt.

1шт.

17

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

4шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

- rear

2шт.

19

A8016

ROD

- lower, Serial Range: lever-bellcrank

1шт.

20

A20168

BELLCRANK - throttle control

1шт.

21

A21766

LEVER - engine shut-off

1шт.

22

A21767

BOLT - shoulder, lever pivot

1шт.

23

A21768

ROD - rear, engine shut-off

1шт.

24

132-52

COTTER PIN,1/8" x 1 1/2"

PIN - cotter, 1/16 x 1/2

4шт.

25

95-3

WASHER,#12

- plain, 1/4 x 9/16 x #18 ga.

1шт.

26

A21769

SUPPORT - shut-off rod

1шт.

27

A21819

BRACKET - throttle spring (L.P.G.)

1шт.

28

A26685

SPRING - shut-off rod

1шт.

29

A21772

ROD - front, shut-off

1шт.

30

A21773

CAM - engine shut-off

1шт.

31

A21774

BOLT - shoulder, shut-off cam

1шт.

32

A27857

WASHER

- spring

2шт.

33

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

40

A21743

ROD - rear, throttle control

1шт.

41

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

42

A21744

LEVER - intermediate, throttle control

1шт.

43

A10436

VALVE SPRING

SPRING - return, foot throttle

1шт.

44

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

1шт.

45

A20408

LEVER - upper, foot throttle control

1шт.

46

A8018

STEP BOLT

STUD - pivot, upper lever

1шт.

47

A20407

ROD - control, foot throttle

1шт.

48

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

49

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - control rod

1шт.

50

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

51

A21742

SHAFT - cross, foot throttle (Std. clutch)

1шт.

52

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, retaining, , cross shaft (std. clutch) #50, .392" Dia, E-Type

1шт.

53

A22611

SHAFT - cross, foot throttle (Case-O-Matic)

1шт.

54

A8246

PEDAL - R.H., foot throttle

1шт.

55

A22853

PEDAL - L.H., foot throttle (Case-O-Matic only)

1шт.

56

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

57

A8245

SUPPORT - cross shaft (1 only w/std. clutch)

2шт.

58

A8151

SUPPORT - R.H., cross shaft (w/std. clutch)

1шт.

59

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

60

92-8

LOCK WASHER,1/2"

2шт.
