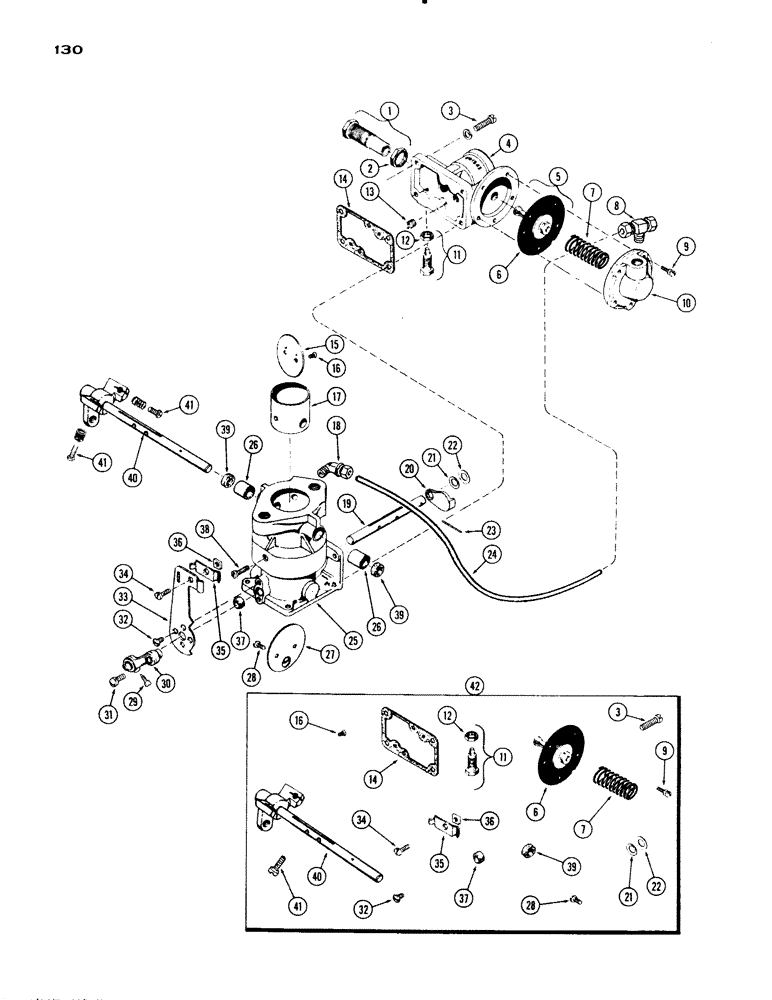

Запчасти Case IH 830-SERIES (130) - A24284 CARBURETOR, 251 AND 284 L.P. ENGINES, EXCEPT GROVE (03) - FUEL SYSTEM

A24284

CARBURETOR ASSY. - L.P.G. (incl. ref. 1 - 41)

1шт.

1

A40333

SCREW - fuel adjusting (incl. ref. 2)

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock, adj. screw

1шт.

3

B50043

SCREW - housing

4шт.

Part of repair kit P/N B50203

1шт.

4

A40334

HOUSING - fuel inlet & economizer

1шт.

5

B50165

DIAPHRAGM ASSY. - economizer (incl. ref. 6)

1шт.

Part of repair kit P/N B50203

1шт.

6

B50147

DIAPHRAGM

1шт.

7

B50146

SPRING - economizer

1шт.

Part of repair kit P/N B50203

1шт.

8

B50044

FITTING - tee, economizer tube

1шт.

9

B50030

SCREW - cover

5шт.

Part of repair kit P/N B50203

1шт.

10

B50158

COVER - economizer

1шт.

11

A25252

SCREW - starting adjustment (incl. ref. 12)

1шт.

Part of repair kit P/N B50203

1шт.

12

B50148

NUT - lock, adj. screw

1шт.

13

B50157

SCREW - orifice, economizer

1шт.

14

B50163

GASKET - economizer

1шт.

Part of repair kit P/N B50203

1шт.

15

B50192

DISC - throttle

1шт.

16

B50143

SCREW - throttle disc.

2шт.

Part of repair kit P/N B50203

1шт.

17

B50171

VENTURI

1шт.

18

B50107

X

ELBOW - economizer tube

1шт.

19

A40336

SHAFT - choke

1шт.

20

B50160

LEVER - valve

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

Part of repair kit P/N B50203

1шт.

22

B50136

WASHER - valve lever

1шт.

Part of repair kit P/N B50203

1шт.

23

B50161

PIN - valve lever

1шт.

24

B50109

TUBE - economizer

1шт.

25

A40344

BODY ASSY. - carburetor (incl. ref. 26)

1шт.

26

B50202

BUSHING - throttle shaft

2шт.

27

B50054

DISC - choke

1шт.

28

B50142

SCREW - choke disc

2шт.

Part of repair kit P/N B50203

1шт.

29

B50014

SCREW - set, choke lever

1шт.

30

A40343

LEVER - choke (incl. ref. 31)

1шт.

31

B50023

SCREW - choke swivel

1шт.

32

A40342

PROTECTOR

SCREW - choke support

1шт.

Part of repair kit P/N B50203

1шт.

33

B50193

SUPPORT ASSY. - choke (incl. ref. 34 - 36)

1шт.

34

A40044

PIPE

SCREW - clamp

1шт.

Part of repair kit P/N B50203

1шт.

35

B50204

CLAMP - choke rod

1шт.

Part of repair kit P/N B50203

1шт.

36

A40046

NUT - clamp screw

1шт.

Part of repair kit P/N B50203

1шт.

37

B50144

SEAL - dust, choke shaft

2шт.

Part of repair kit P/N B50203

1шт.

38

B50042

SCREW - set, venturi

1шт.

39

B50145

SEAL - dust, throttle shaft

2шт.

Part of repair kit P/N B50203

1шт.

40

A40339

SHAFT ASSY. - throttle (incl. ref. 41)

1шт.

41

A40340

SCREW - throttle stop

2шт.

Part of repair kit P/N B50203

1шт.

42

B50203

REPAIR KIT (incl. ref. 3, 5, 7, 9, 11, 14, 16, 21, 22, 28, 32, 34 thru 37, 39 and 41)

1шт.
