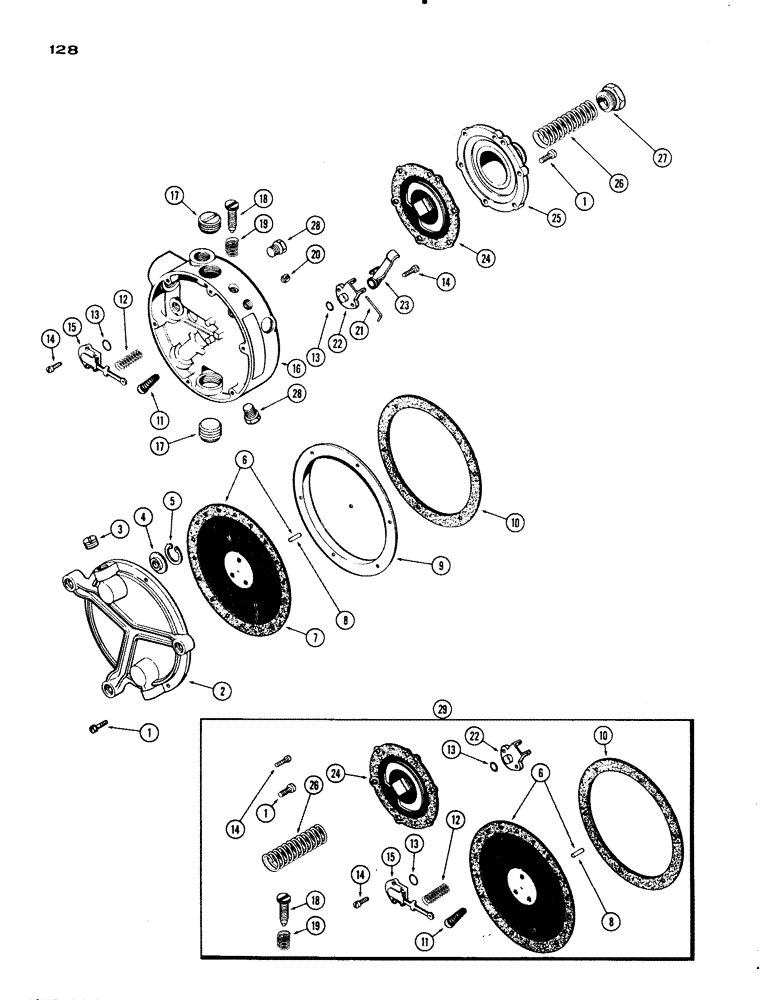

Запчасти Case IH 830-SERIES (128) - A21231 REGULATOR, 251 AND 284 SPARK IGNITION ENGINES (03) - FUEL SYSTEM

A21231

REGULATOR ASSY. - L.P.G. (incl. ref. 1 - 28)

1шт.

1

B50035

SCREW - cover, front & back (See ref. 29)

12шт.

2

B50201

PLATE - cover, low pressure end

1шт.

3

221-1041

PLUG

- 1/8" P.T. slotted

1шт.

4

B50087

VALVE - compensator

1шт.

5

B50086

RING - retainer, valve

1шт.

6

B50180

DIAPHRAGM

ASSY. - low pressure (See ref. 29) (incl. ref. 7 & 8)

1шт.

7

A40079

DIAPHRAGM

- low pressure

1шт.

8

B50178

PIN - push (See ref. 29)

1шт.

9

B50175

PLATE - partition

1шт.

10

B50177

GASKET - partition plate (See ref. 29)

1шт.

11

B50168

STRAINER - fuel inlet (See ref. 29)

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - valve, low pressure (See ref. 29)

1шт.

13

B50179

"O" RING - low & hi-pressure valve (See ref. 29)

2шт.

14

B50029

SCREW - low & hi-pressure valve (See ref. 29)

4шт.

15

B50181

VALVE - lo-pressure (See ref. 29)

1шт.

16

A25248

HOUSING - regulator

1шт.

17

221-1044

PLUG - 1/2" P.T. slotted

2шт.

18

B50024

SCREW - idle adjusting (See ref. 29)

1шт.

19

B50022

SPRING - idle adjusting (See ref. 29)

1шт.

20

A40167

SCREW - orifice, regulator housing

1шт.

21

B50159

PIN - valve lever

1шт.

22

B50183

VALVE - hi-pressure (See ref. 29)

1шт.

23

B50182

LEVER - hi-pressure valve

1шт.

24

B50108

DIAPHRAGM ASSY - hi-pressure (See ref. 29)

1шт.

25

B50110

COVER - hi-pressure end

1шт.

26

B50153

SPRING - hi-pressure (See ref. 29)

1шт.

27

B50112

GUIDE - hi-pressure spring

1шт.

28

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- 1/8" P.T. sq. hd.

2шт.

29

B50052

REPAIR KIT - regulator (incl. ref. 1, 6, 8, 10, 11, 12, 13, 14, 15, 18, 19, 22, 24 and 26)

1шт.
