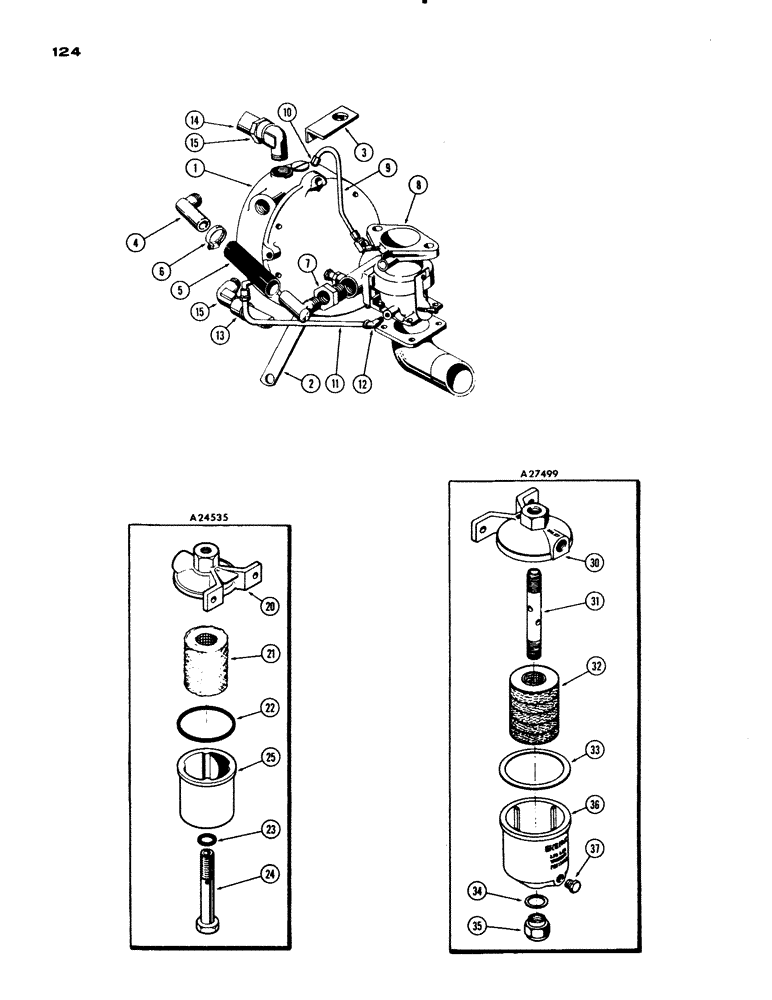

Запчасти Case IH 830-SERIES (124) - L.P.G. SYSTEM, 251 SPARK IGNITION, GROVE (03) - FUEL SYSTEM

1

A21231

REGULATOR - L.P.G. (Repairs Figure 128)

1шт.

2

A212363

STRAP - support, regulator

1шт.

3

A21232

BRACKET - support, regulator

1шт.

4

A9155

90 ELBOW

- hose, Serial Range: regulator-carb

2шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Vapor, Regulator to carb 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

7

A21235

FITTING

ADAPTER - vapor, Serial Range: elbow-carburetor

1шт.

8

A21229

STIFFENER

CARBURETOR - (Repairs Figure 126)

1шт.

9

A21236

TUBE -, Serial Range: economizer-regulator

1шт.

10

222-401

CONNECTOR, ELEC

CONNECTOR - 3/16" tube x 1/8" P.T.

1шт.

11

A21237

TUBE - balance, Serial Range: carb.-regulator

1шт.

12

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

- 5/16" tube x 1/8" P.T.

2шт.

13

A21238

TUBE - water outlet

1шт.

14

A21239

TUBE - water, Serial Range: pump-regulator

1шт.

15

222-442

ELBOW - water tube, 1/2" tube x 3/8" P.T. 90º x 3/8" NPT x 11/16"-16

3шт.

A24535

FILTER

ASSY. - L.P.G. (incl. ref. 20 - 25)

1шт.

20

A24536

COVER - filter, L.P.G.

1шт.

21

A24616

KIT

ELEMENT KIT, L.P.G. filter (incl. ref. 22 & 23)

1шт.

22

A24539

GASKET

- body to cover, L.P.G. filter

1шт.

23

A24538

GASKET

- body bolt, L.P.G. filter

1шт.

24

A24541

BOLT - body to cover, L.P.G. filter

1шт.

25

A24537

BODY - filter element, L.P.G. filter

1шт.

A27499

FILTER

ASSY. - (Order A24535), L.P.G. (incl. ref. 30 - 37)

1шт.

30

B50129

COVER - filter, L.P.G.

1шт.

31

B50131

STUD - body to cover (no longer available), L.P.G. filter

1шт.

32

A24616

KIT

ELEMENT - filter, L.P.G.

1шт.

33

B50133

GASKET - body to cover, L.P.G. filter

1шт.

34

B50134

GASKET - stud nut, L.P.G. filter

1шт.

35

B50135

NUT - stud, L.P.G. filter

1шт.

36

B50130

BODY - filter element, L.P.G.

1шт.

37

221-661

PLUG,Hex Hd, 1/8"-27

- 1/8" P.T. hex hd., L.P.G. filter

1шт.
