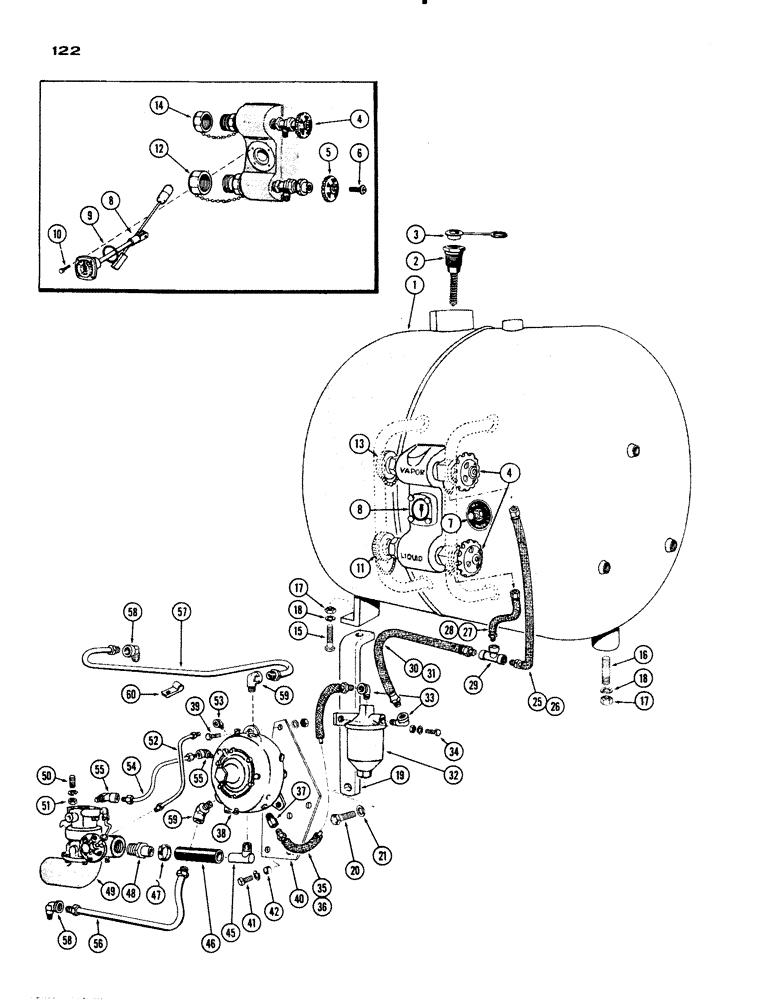

Запчасти Case IH 830-SERIES (122) - L.P.G. SYSTEM, 251 AND 284 L.P. ENGINES, EXCEPT GROVE, 1ST USED PRIOR TO TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A24231

TANK ASSY. - L.P.G. (incl. ref. 2 - 14)

1шт.

2

A20696

SEAL

VALVE - safety relief

1шт.

3

A20697

WIPER

CAP - weather, safety valve

1шт.

4

A22947

X

VALVE ASSY. - outlet, liquid & vapor (incl. ref. 5 & 6)

2шт.

5

B52058

WHEEL - hand

1шт.

6

B52057

SCREW - hand wheel

1шт.

7

A29941

GAUGE - fixed level

1шт.

8

A24048

GAUGE ASSY. - fuel (incl. ref. 9 & 10)

1шт.

9

A20489

GASKET -, Serial Range: gauge-tank

1шт.

10

177-133

SCREW - 1/4 x 15/16" N.F. filister hd.

4шт.

11

A29942

VALVE ASSY. - filler, liquid (incl. ref. 12)

1шт.

12

A40631

CAP ASSY. - (includes chain)

1шт.

13

A9320

VALVE ASSY. - return, vapor (incl. ref. 14)

1шт.

14

A40630

CAP ASSY. - (includes chain)

1шт.

15

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

2шт.

16

A9123

STUD - rear, tank mounting

1шт.

17

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

3шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

19

A11852

BRACE - R.H. front, fuel tank

1шт.

19

A11853

O-RING

BRACE - L.H. front, fuel tank

1шт.

25

A24234

TUBE - vapor, Serial Range: valve-tee

1шт.

26

A27241

LOOM

- A24234 tube

1шт.

27

A24236

TUBE - liquid, Serial Range: valve-tee

1шт.

28

A24207

LOOM - A24236 tube

1шт.

29

222-564

TEE - tube, 3/8 x 3/8 x 3/8"

1шт.

30

A24237

TUBE -, Serial Range: tee-filter

1шт.

31

A29933

LOOM - A24237 tube

1шт.

32

A27499

FILTER

ASSY. - (Repairs Figure 124) Order A24535

1шт.

32

A24535

FILTER

ASSY. - (Repairs Figure 124)

1шт.

33

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

- filter tube, 3/8" tube x 1/4" P.T.

2шт.

34

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- filter, 5/16 x 1" N.F. hex

2шт.

35

A24239

TUBE -, Serial Range: filter-regulator

1шт.

36

A27608

LOOM - A24239 tube

1шт.

37

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - tube to regulator, 3/8" tube x 1/4" P.T.

1шт.

38

A24285

REGULATOR - L.P.G. (Repairs Figure 132)

1шт.

39

14-518

BOLT - regulator, 5/16 x 1-1/8" N.F. hex Hex, 5/16"-24 x 1 1/8", G5, Full Thd

3шт.

40

A24290

PLATE - regulator mounting

1шт.

41

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Plate Hex, 3/8"-16 x 2 1/4", G5

4шт.

42

B18279

SPACER - regulator plate

4шт.

45

A9155

90 ELBOW

- hose, Serial Range: regulator-carburetor

1шт.

46

A9156

HOSE,0.75" ID x 4.50"

- regulator to carburetor 0.75" ID x 4.50"

1шт.

47

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

48

A11791

NIPPLE -, Serial Range: hose-carburetor

1шт.

49

A24284

CARBURETOR - (Repairs Figure 130)

1шт.

50

A10029

STUD -, Serial Range: carburetor-manifold

2шт.

51

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

52

A24286

TUBE -, Serial Range: economizer-regulator

1шт.

53

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

- economizer tube, 3/16" tube x 1/8" P.T.

1шт.

54

A24287

TUBE - balance, Serial Range: carb.-regulator

1шт.

55

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

- balance tube, 5/16" tube x 1/8" P.T.

2шт.

56

A24288

TUBE - water outlet, regulator

1шт.

57

A24289

TUBE - water, Serial Range: pump-regulator

1шт.

58

222-442

ELBOW - water tube, 1/2" tube x 3/8" P.T. 90 Degree 90º x 3/8" NPT x 11/16"-16

2шт.

59

222-470

ELBOW - water tube, 1/2" tube x 5/8" P.T. 45 Degree 45º x 3/8" NPT x 11/16"-16

2шт.

60

A26696

NO LONGER SERVICED

CLIP - water, Serial Range: tube-block

1шт.
