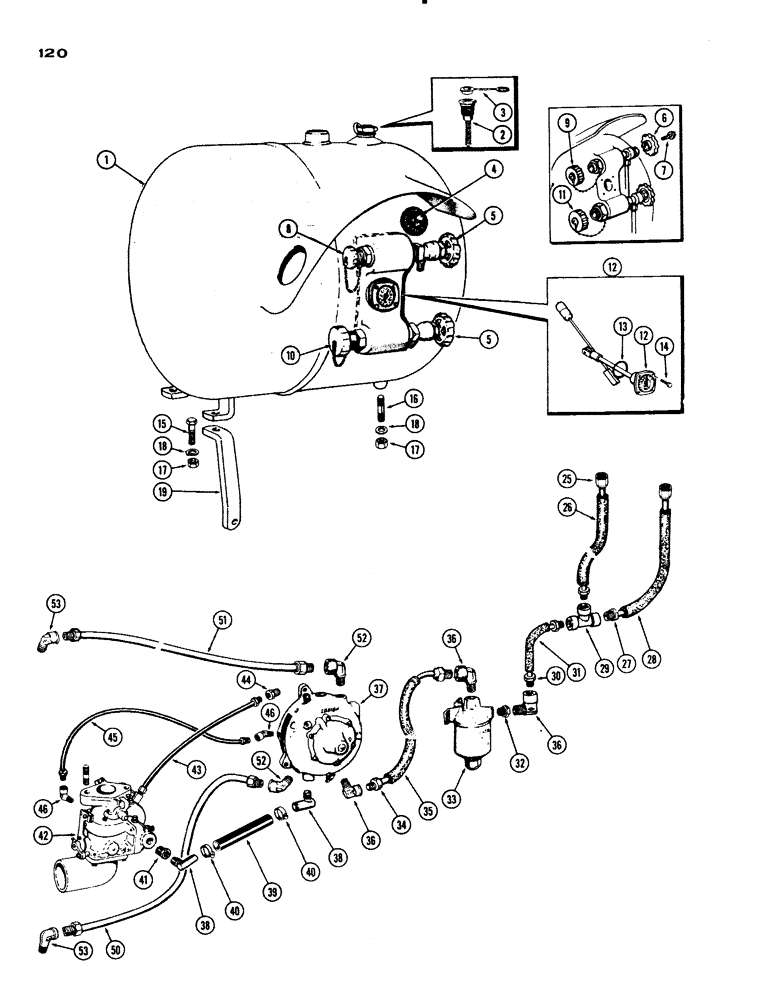

Запчасти Case IH 830-SERIES (120) - L.P.G. SYSTEM, 251 AND 284 L.P. ENGINES, EXCEPT GROVE, USED PRIOR TO TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A11844

TANK ASSY. - L.P.G. (incl. ref. 2 - 14)

1шт.

2

A20696

SEAL

VALVE ASSY. - safety relief (incl. ref. 3)

1шт.

3

A20697

WIPER

CAP - weather, safety valve

1шт.

4

A29941

GAUGE - fixed liquid level

1шт.

5

4003AA

X

VALVE - outlet (incl. ref. 6 & 7)

2шт.

6

B52058

WHEEL - hand

1шт.

7

B52057

SCREW - hand wheel

1шт.

8

A9320

VALVE - return, liquid (incl. ref. 9)

1шт.

9

A40630

CAP ASSY. - valve

1шт.

10

A29942

VALVE - filler, liquid (incl. ref. 11)

1шт.

11

A40631

CAP ASSY. - filler valve

1шт.

12

A20422

GAUGE ASSY. - fuel (incl. ref. 13 & 14)

1шт.

13

A20489

GASKET -, Serial Range: gauge-tank

1шт.

14

177-133

SCREW - 1/4 x 15/16" N.F. fillister hd.

4шт.

15

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

2шт.

16

A9123

STUD - rear, tank mounting

1шт.

17

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

3шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

19

A11852

BRACE - R.H. front, fuel tank

1шт.

19

A11853

O-RING

BRACE - L.H. front, fuel tank

1шт.

25

A20106

TUBE - vapor, Serial Range: valve-tee

1шт.

26

A27239

LOOM - A20106 tube

1шт.

27

A20107

TUBE - liquid, Serial Range: valve-tee

1шт.

28

A27501

NO LONGER SERVICED

LOOM - A20107 tube

1шт.

29

222-564

TEE - tube fitting, 3/8" P.T.

1шт.

30

A20103

TUBE -, Serial Range: tee-filter

1шт.

31

A27501

NO LONGER SERVICED

LOOM - A20103 tube

1шт.

32

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - tube, 3/8" O.D. x 1/4" P.T.

1шт.

33

A27499

FILTER

ASSY. - (Repairs Figure 124) Order A24535

1шт.

33

A24535

FILTER

ASSY. - (Repairs Figure 124)

1шт.

34

A21591

TUBE -, Serial Range: filter-regulator

1шт.

35

A21598

LOOM - A21591 tube

1шт.

36

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

- tube, 3/8" tube x 1/4" P.T.

2шт.

37

A21231

REGULATOR ASSY. (Repairs Figure 128)

1шт.

38

A9155

90 ELBOW

- hose, Serial Range: regulator-carb

2шт.

39

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Regulator to carburetor 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

40

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

41

A21235

FITTING

ADAPTER - carburetor elbow

1шт.

42

A21229

STIFFENER

CARBURETOR - (Repairs Figure 126)

1шт.

43

A21236

TUBE - economizer, Serial Range: carb.-regulator

1шт.

44

222-401

CONNECTOR, ELEC

CONNECTOR - economizer tube, 3/16" tube x 1/8" P.T.

1шт.

45

A21237

TUBE - balance, Serial Range: carb.-regulator

1шт.

46

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

- balancer tube, 5/16" tube x 1/8" P.T.

2шт.

50

A21238

TUBE - water outlet, regulator

1шт.

51

A21239

TUBE - water, Serial Range: pump-regulator

1шт.

52

222-470

ELBOW - regulator, 1/2" tube x 3/8" P.T. 45 degree 45º x 3/8" NPT x 11/16"-16

2шт.

53

222-442

ELBOW - water tube, 1/2" tube x 3/8" P.T. 90 degree 90º x 3/8" NPT x 11/16"-16

2шт.
