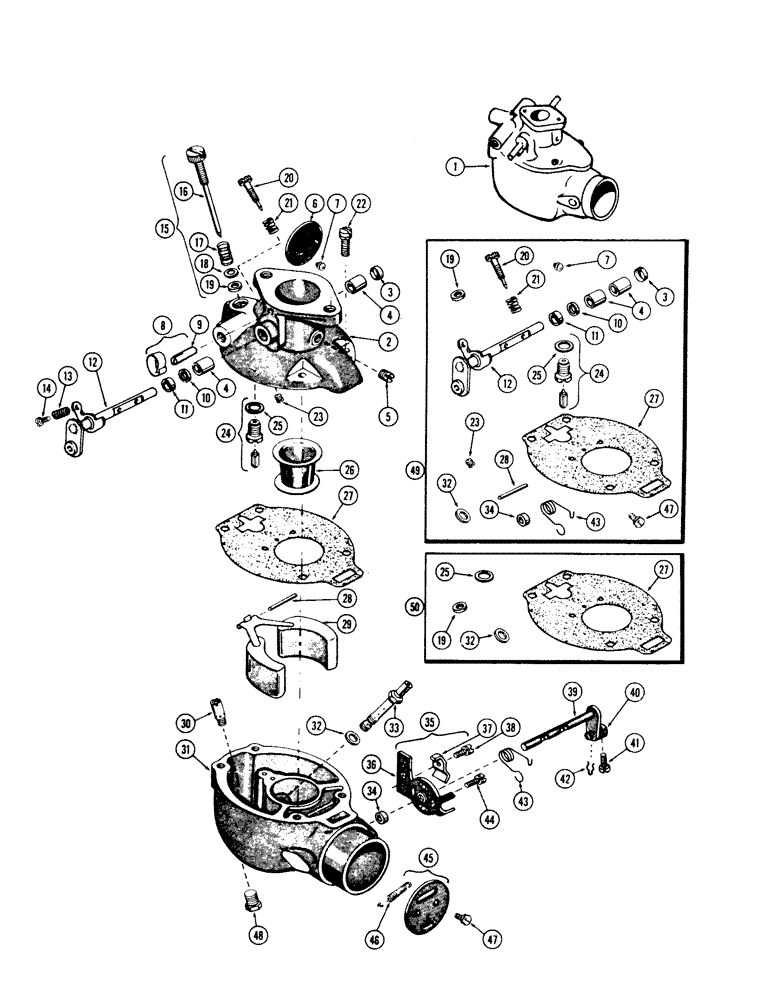

Запчасти Case IH 830-SERIES (116) - A24305 CARBURETOR, 251 AND 284 SPARK IGNITION ENGINES, 1ST USED TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A24305

CARBURETOR

(Marvel-Schebler Model TSX-863) (incl. ref. 2 - 48)

1шт.

2

A40303

BODY ASSY. - throttle (incl. ref. 3 - 14)

1шт.

3

B51850

RETAINER CUP

PLUG - cup

1шт.

Part of repair kit P/N A40304

1шт.

4

B51858

BUSHING

- throttle shaft

2шт.

Part of repair kit P/N A40304

1шт.

5

B51696

PLUG - pipe (5/16" N.F. headless)

1шт.

6

B51668

FLY - throttle (22 Degree)

1шт.

7

B51702

SCREW,#6 - 32 x 1/4"

- throttle fly

2шт.

Part of repair kit P/N A40304

1шт.

8

B53939

STOP ASSY. - throttle (incl. ref. 9)

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - stop (Order B53939)

1шт.

10

B51806

PACKING

- throttle shaft

1шт.

Part of repair kit P/N A40304

1шт.

11

B51851

RETAINER

- packing

1шт.

Part of repair kit P/N A40304

1шт.

12

B53951

SHAFT ASSY. - throttle (incl. ref. 13 & 14)

1шт.

Part of repair kit P/N A40304

1шт.

13

B51742

SPRING

- throttle stop screw

1шт.

14

B51680

SCREW - adjusting

1шт.

15

B51796

NEEDLE

ASSY. - high speed (incl. ref. 16 - 19)

1шт.

16

B51798

NEEDLE

- high speed

1шт.

17

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

18

B51870

WASHER

- needle spring

1шт.

19

B51723

GASKET

- high speed needle

1шт.

Part of repair kit P/N A40304

1шт.

20

B51789

NEEDLE

- idle adjusting

1шт.

Part of repair kit P/N A40304

1шт.

21

B51744

SPRING

- idle needle

1шт.

Part of repair kit P/N A40304

1шт.

22

B51684

SCREW -, Serial Range: body-bowl

4шт.

23

B51828

JET

- idle

1шт.

Part of repair kit P/N A40304

1шт.

24

B51914

VALVE

ASSY. - float (incl. ref. 25)

1шт.

Part of repair kit P/N A40304

1шт.

25

B51703

GASKET

- seat

1шт.

26

B51817

VENTURI

(1-1/16")

1шт.

27

B51704

GASKET

-, Serial Range: body-bowl

1шт.

Part of repair kit P/N A40304

1шт.

28

B51778

SHAFT

- float

1шт.

Part of repair kit P/N A40304

1шт.

29

B51773

FLOAT

- carburetor

1шт.

30

B51781

SEAT - high speed needle

1шт.

31

A40299

BOWL ASSY.

1шт.

32

B51724

GASKET

- nozzle

1шт.

Part of repair kit P/N A40304

1шт.

33

B51822

NOZZLE - main

1шт.

34

B51802

PACKING

- choke shaft

1шт.

35

A40301

BRACKET ASSY. - choke (incl. ref. 36 - 38)

1шт.

36

B59382

BRACKET - choke

1шт.

37

B51765

CLIP

- choke bracket

1шт.

38

B51695

SCREW -, Serial Range: clip-bracket

1шт.

39

A40300

PIN

SHAFT ASSY. - choke (incl. ref. 40 - 42)

1шт.

40

B51764

PIVOT

SWIVEL - choke shaft lever

1шт.

41

B51698

SCREW,0.164" - 32 x 5/16"

- choke swivel

1шт.

42

B51877

SPLIT PIN

PIN - cotter, swivel

1шт.

43

B51738

SPRING - return, choke

1шт.

Part of repair kit P/N A40304

1шт.

44

B51686

SCREW -, Serial Range: bracket-bowl

2шт.

45

B51762

VALVE

FLY ASSY. - choke (incl. ref. 46)

1шт.

46

B51743

SPRING

- valve, choke

1шт.

47

B51702

SCREW,#6 - 32 x 1/4"

- choke fly (incl. ref. 48)

2шт.

Part of repair kit P/N A40304

1шт.

48

B51887

PLUG

- drain

1шт.

49

A40304

KIT

REPAIR KIT (incl. ref. 3, 4, 7, 10, 11, 12, 19, 20, 21, 23, 24, 27, 28 32, 43 and 47)

1шт.

50

B51725

X

GASKET KIT (incl. ref. 19, 25, 27 & 32)

1шт.
