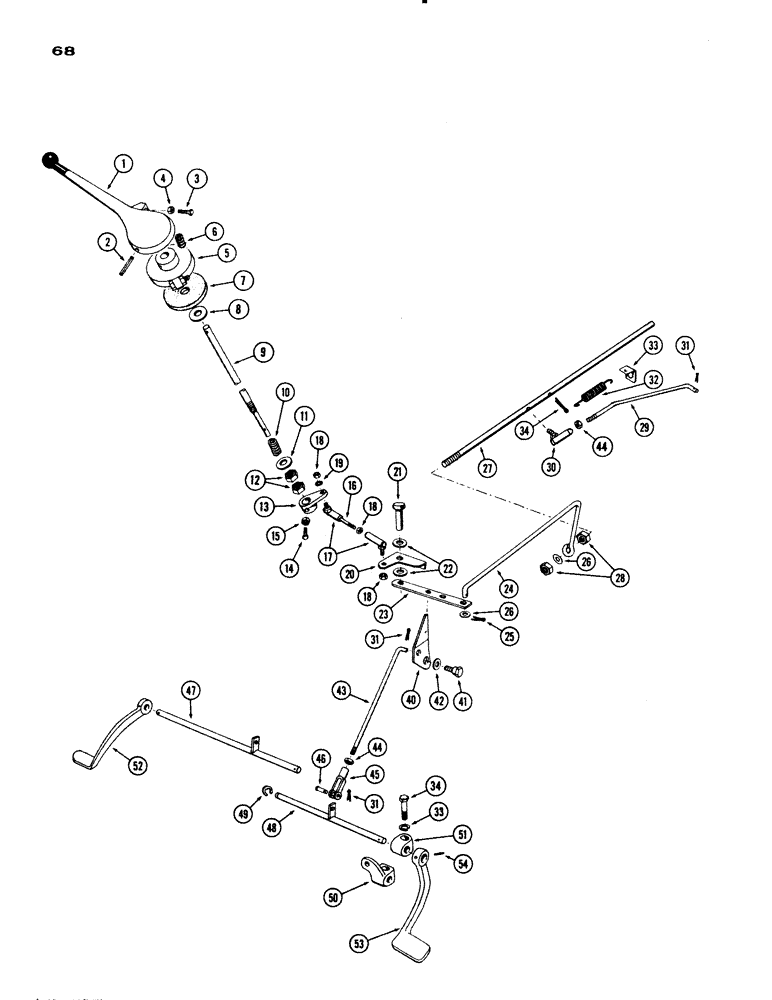

Запчасти Case IH 830-SERIES (068) - THROTTLE LINKAGE, 267 AND 301 DIESEL ENGINES, 1ST USED TRAC. S/N 8173401 (03) - FUEL SYSTEM

1

A23784

LEVER

- hand, throttle control

1шт.

2

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

3

A20341

SCREW - idle adjusting

1шт.

4

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

1шт.

5

A22536

PLATE - friction disc

1шт.

6

A8012

SPRING

- shut-off lock

1шт.

7

A11969

GASKET

DISC - friction, hand lever

1шт.

8

A32838

WASHER

- friction disc

1шт.

9

A22535

SHAFT - hand lever, throttle

1шт.

10

A22618

SPRING

- tension, friction disc

1шт.

11

195-33

WASHER,1/2"

- plain (17/32 x 1-1/16 x 3/32")

1шт.

12

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

2шт.

13

A22621

LEVER - lower, hand throttle shaft

1шт.

14

85-412

SET SCREW

SCREW - set, 1/4 x 3/4" N.C. sq. hd. cup pt.

1шт.

15

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

1шт.

16

A22537

ROD - lower lever to bell crank

1шт.

17

A27403

X

BALL JOINT - short rod

2шт.

18

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.F. hex

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

A22538

BELLCRANK - throttle control

1шт.

21

A23641

PIN - pivot, bellcrank

1шт.

22

A26381

WASHER

- pivot pin (17/32 x 1" x #12 ga.)

2шт.

23

A22539

LEVER - intermediate, throttle control

1шт.

24

A11824

ROD - rear, throttle

1шт.

25

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 3/4"

1шт.

26

195-24

WASHER,5/16"

3шт.

27

A11398

X

ROD - front, throttle

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

29

A22245

ROD

- fuel pump

14шт.

30

A10326

BALL JOINT

- rod, fuel pump

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.

32

A22619

SPRING

- return

1шт.

33

A22620

CLIP

- return spring

1шт.

34

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

40

A22520

LEVER - upper, foot throttle

1шт.

41

A8018

STEP BOLT

STUD - pivot, lever

1шт.

42

A27857

WASHER

- spring

1шт.

43

A22579

ROD - foot throttle control

1шт.

44

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

1шт.

45

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - foot throttle rod

1шт.

46

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

47

A22611

SHAFT - cross, foot pedal (w/Case-O-Matic)

1шт.

48

A22610

SHAFT - cross, foot pedal (w/std. clutch)

1шт.

49

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, retaining, , cross shaft (w/std. clutch) #50, .392" Dia, E-Type

1шт.

50

A8151

SUPPORT - cross shaft (w/std. clutch)

1шт.

51

A8245

SUPPORT - cross shaft (1 w/std. clutch and 2 w/Case-O-Matic)

1шт.

52

A22853

PEDAL - foot throttle, L.H. (w/Case-O-Matic)

1шт.

53

A22852

PEDAL - foot throttle, R.H. (w/std. clutch)

1шт.

54

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.
