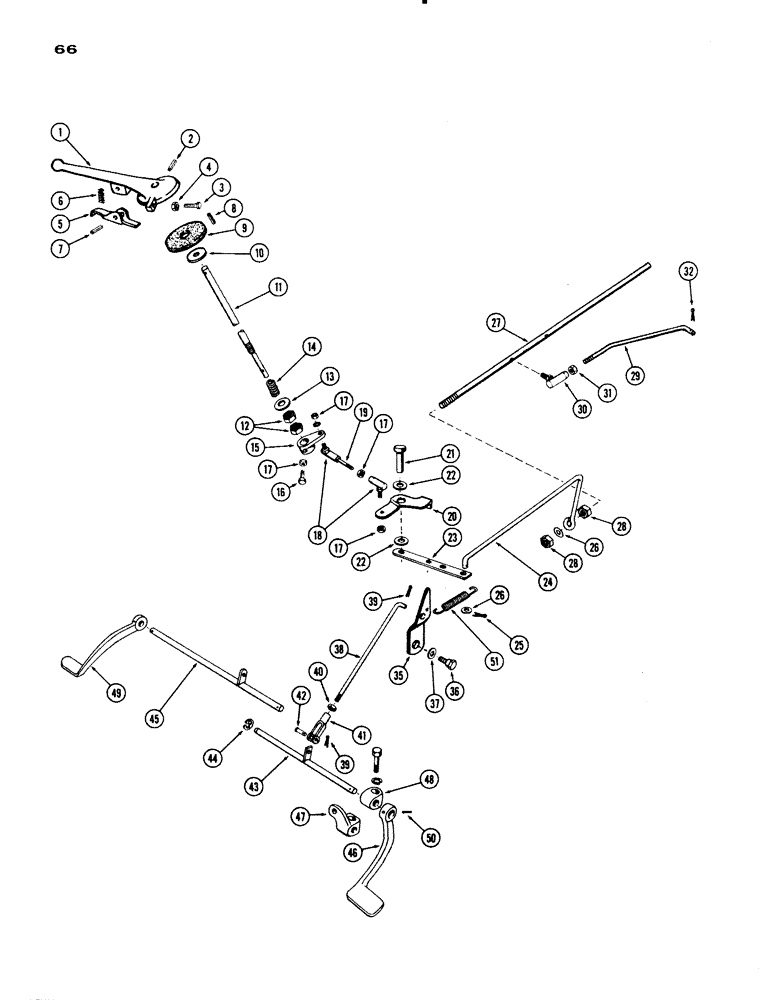

Запчасти Case IH 830-SERIES (066) - THROTTLE LINKAGE, 267 AND 301 DIESEL ENGINES, USED PRIOR TO TRAC. S/N 8173401 (03) - FUEL SYSTEM

1

A8880

LEVER - hand, throttle control

1шт.

2

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

3

A20341

SCREW - idle adjusting

1шт.

4

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

1шт.

5

A8011

LOCK - shut-off, throttle

1шт.

6

A8012

SPRING

- shut-off lock

1шт.

7

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (Shut-off lock) 3/16" x 3/4", Slotted

1шт.

8

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Idle stop 1/4" x 3/4", Slotted

1шт.

9

A11969

GASKET

DISC - friction, hand lever

1шт.

10

F62050

WASHER - friction disc (17/32 x 1-1/4" x #12 ga.)

1шт.

11

A8878

SHAFT - throttle control, hand lever

1шт.

12

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

2шт.

13

195-33

WASHER,1/2"

- plain (17/32 x 1-1/16 x 3/32")

1шт.

14

A8876

SPRING

- hand lever shaft

1шт.

15

A8875

LEVER

- lower end hand lever shaft

1шт.

16

85-412

SET SCREW

SCREW - set, 1/4 x 3/4" N.C. sq. hd. cup pt.

1шт.

17

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

3шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

- rear

2шт.

19

A8016

ROD

- lower, Serial Range: lever-bellcrank

1шт.

20

A20168

BELLCRANK - throttle control

1шт.

21

A8479

STUD - pivot, bellcrank

1шт.

22

195-104

WASHER,3/8"

- plain 3/8"

2шт.

23

A21744

LEVER - intermediate

1шт.

24

A11824

ROD - rear, throttle control

1шт.

25

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 3/4"

1шт.

26

195-24

WASHER,5/16"

2шт.

27

A11398

X

ROD - front, throttle control

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

29

A22245

ROD

- control, injection pump

1шт.

30

A10326

BALL JOINT

- pump rod

1шт.

31

129-17

NUT,Hex, #10 - 24

NUT - #10-32 hex

1шт.

32

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

35

A20408

LEVER - upper, foot throttle

1шт.

36

A8018

STEP BOLT

STUD - pivot, upper lever

1шт.

37

A27857

WASHER

- spring, pivot stud

1шт.

38

A20407

ROD - foot throttle

1шт.

39

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

40

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex

1шт.

41

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - foot throttle rod

1шт.

42

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

43

A21742

ROD - cross, foot throttle (w/std. clutch)

1шт.

44

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, retaining, , cross rod (w/std. clutch) #50, .392" Dia, E-Type

1шт.

45

A22611

ROD - cross, (w/Case-O-Matic) Replaces A21746

1шт.

46

A8246

PEDAL - foot throttle R.H. (w/std. clutch)

1шт.

47

A8151

SUPPORT - throttle rod (w/ std. clutch)

1шт.

48

A8245

SUPPORT - cross shaft (w/std. clutch and 2 w/Case-O-Matic)

2шт.

49

A20552

PEDAL - foot throttle L.H. (w/Case-O-Matic)

1шт.

50

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Pedal to shaft 3/16" x 1", Slotted

1шт.

51

A10436

VALVE SPRING

SPRING - return, foot throttle

1шт.
