(830-SERIES) - CASE COMFORT KING DRAFT-O-MATIC TRACTORS (PRIOR TO S/N 8253500) (1/60-12/69)
/
(03) - FUEL SYSTEM
/

(060) - FUEL FILTER, A21133 PRIMARY FILTER, PRIOR TO S/N 8201146, A40435 PRIMARY FILTER, AFTER S/N 8201146

Запчасти Case IH 830-SERIES (060) - FUEL FILTER, A21133 PRIMARY FILTER, PRIOR TO S/N 8201146, A40435 PRIMARY FILTER, AFTER S/N 8201146 (03) - FUEL SYSTEM

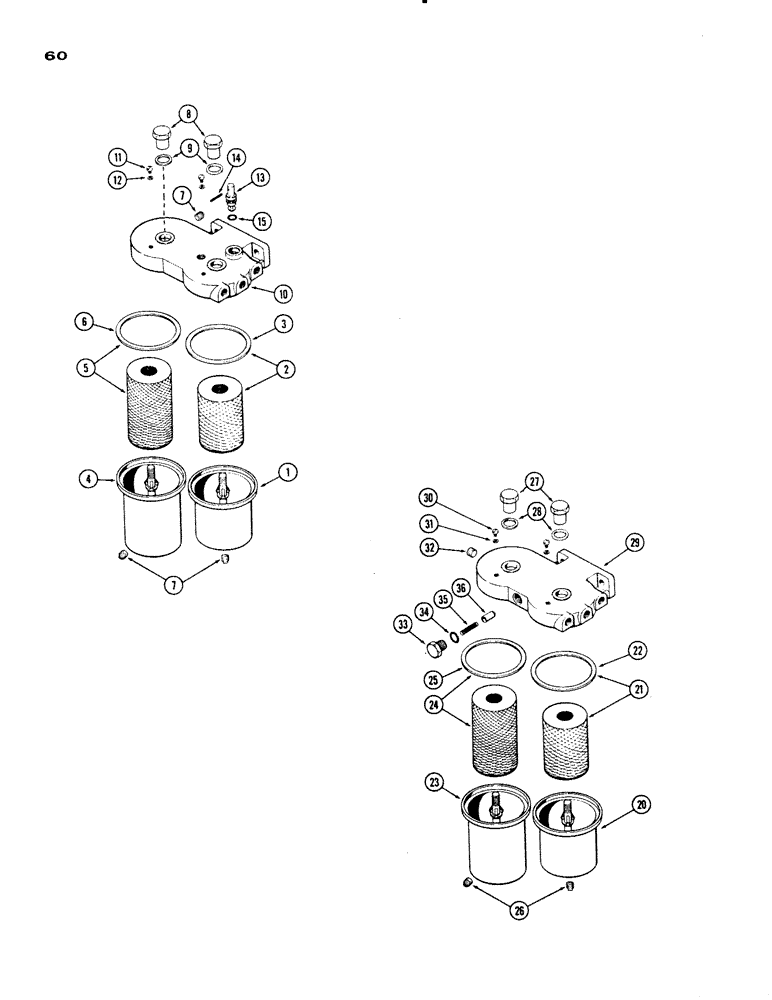

Схема запчастей Case IH 830-SERIES - (060) - FUEL FILTER, A21133 PRIMARY FILTER, PRIOR TO S/N 8201146, A40435 PRIMARY FILTER, AFTER S/N 8201146 (03) - FUEL SYSTEM
3
34
10
30
8
26
2
12
24
33
29
1
36
27
28
31
5
7
6
9
25
20
4
21
7
23
15
13
22
32
14
35
11

№

Артикул

Название

Примечание

Количество

A21133

FILTER

ASSY. - primary (incl. ref. 1 - 15)

1шт.

1

A21129

BODY

- 1st stage filter

1шт.

2

A21141

FILTER, ELEMENT

ELEMENT - 1st stage filter (incl. ref. 3)

1шт.

3

A28056

GASKET

-, Serial Range: body-head

1шт.

4

A21132

BODY

- 2nd stage filter

1шт.

5

A7627

FILTER, ELEMENT

ELEMENT KIT - 2nd stage filter (incl. ref. 6)

1шт.

6

A28056

GASKET

-, Serial Range: body-head

1шт.

7

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

3шт.

8

A21131

NUT

- filter body stud

2шт.

9

A28055

GASKET

- stud nut

2шт.

10

A21077

FILTER HEAD

HEAD - mounting, 1st & 2nd stage filter

1шт.

11

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

12

A20662

GASKET

- bleed screw

2шт.

13

A21097

VALVE - by-pass fuel filter

1шт.

14

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

15

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - valve seal

1шт.

A40435

FILTER

ASSY. - primary, A40435 (incl. ref. 20 - 36), Start Serial: 8201146

1шт.

20

A21129

BODY

- 1st stage filter, A40435 primary, Start Serial: 8201146

1шт.

21

A21141

FILTER, ELEMENT

ELEMENT KIT - 1st stage filter, A40435 primary (incl. ref. 22), Start Serial: 8201146

1шт.

22

A28056

GASKET

- body to head, A40435 primary filter, Start Serial: 8201146

1шт.

23

A21132

BODY

- 2nd stage filter, A40435 primary, Start Serial: 8201146

1шт.

24

A7627

FILTER, ELEMENT

ELEMENT KIT - 2nd stage filter, A40435 primary (incl. ref. 25), Start Serial: 8201146

1шт.

25

A28056

GASKET

- body to head, A40435 primary filter, Start Serial: 8201146

1шт.

26

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd., A40435 primary filter, Start Serial: 8201146

2шт.

27

A21131

NUT

- filter body stud, A40435 primary, Start Serial: 8201146

2шт.

28

A28055

GASKET

- stud nut, A40435 primary filter, Start Serial: 8201146

2шт.

29

A24915

HEAD - mounting, 1st & 2nd stage filter, A40435 primary, Start Serial: 8201146

1шт.

30

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, A40435 primary filter, Start Serial: 8201146

2шт.

31

A20662

GASKET

WASHER - bleed screw, A40435 primary filter, Start Serial: 8201146

2шт.

32

221-1849

PLUG

- head, 1/8" P.T. socket hd., A40435 primary filter, Start Serial: 8201146

1шт.

33

A24916

PLUG

- relief valve, A40435 primary filter, Start Serial: 8201146

1шт.

34

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug (1/2 x 11/16 x 3/32"), A40435 primary filter, Start Serial: 8201146

1шт.

35

A24918

SPRING

- relief valve, A40435 primary filter, Start Serial: 8201146

1шт.

36

A24917

PLUNGER

- relief valve, A40435 primary filter, Start Serial: 8201146

1шт.

Выбрано товаров: 34
